HP 27" EliteOne 870 G9 All-in-One Desktop Computer - Manual (Page 5)

QuickSpecs
HP Elite Series 800 G9 Desktops PCs
Overview
Not all configuration components are available in all regions/countries.
c08017769 – DA 17000 – Worldwide – Version 22 – August 21, 2022
Page 5

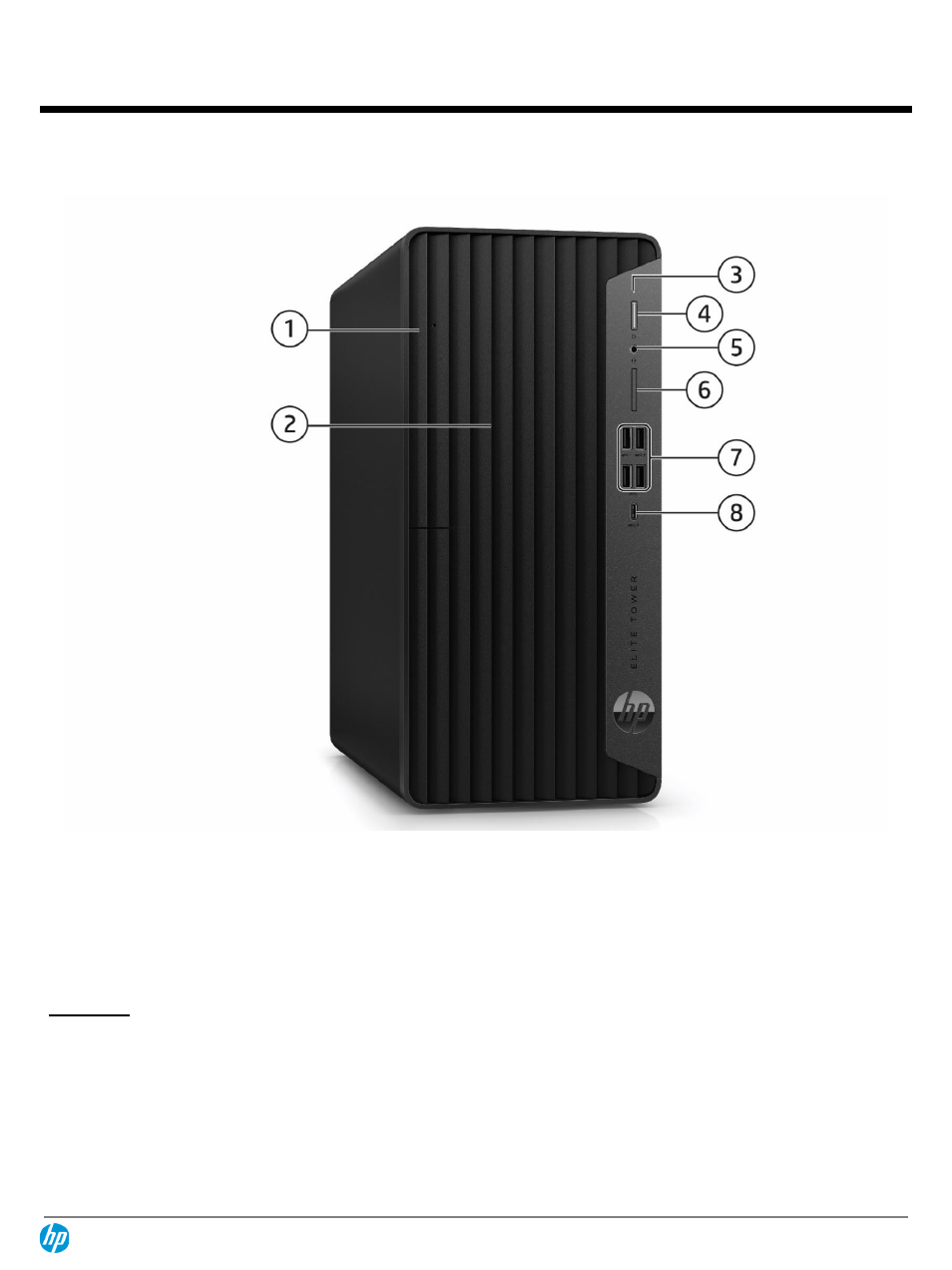

HP Elite Tower 800/880 G9 Desktop PC
1. Slim optical drive bay (optional) 6. SD card 4.0 reader (optional)
2. Slim optical bay for removable 2.5’’ HDD or M.2 SSD (optional) 7. (4) Type-A SuperSpeed USB 10Gbps signaling rate port
(1 with charge support up to 5V/1.5A)
3. Hard drive activity light
4. Dual-state power button
8. Type-C® SuperSpeed USB 20Gbps signaling rate port
(charge support up to 5V/3A)
5. Combo Audio Jack with CTIA and OMTP headset support
Not Shown
Slots
(1) PCI Express Gen4 x16 (wired as x4)
(1) PCI Express Gen4 x16
(2) PCI Express x1
(3) M.2 (1 as M.2 2230 socket for WLAN/BT and 2 as M.2 2280
socket for storage)
