ROG STRIX B550-A GAMING 1-9
Chapter 1

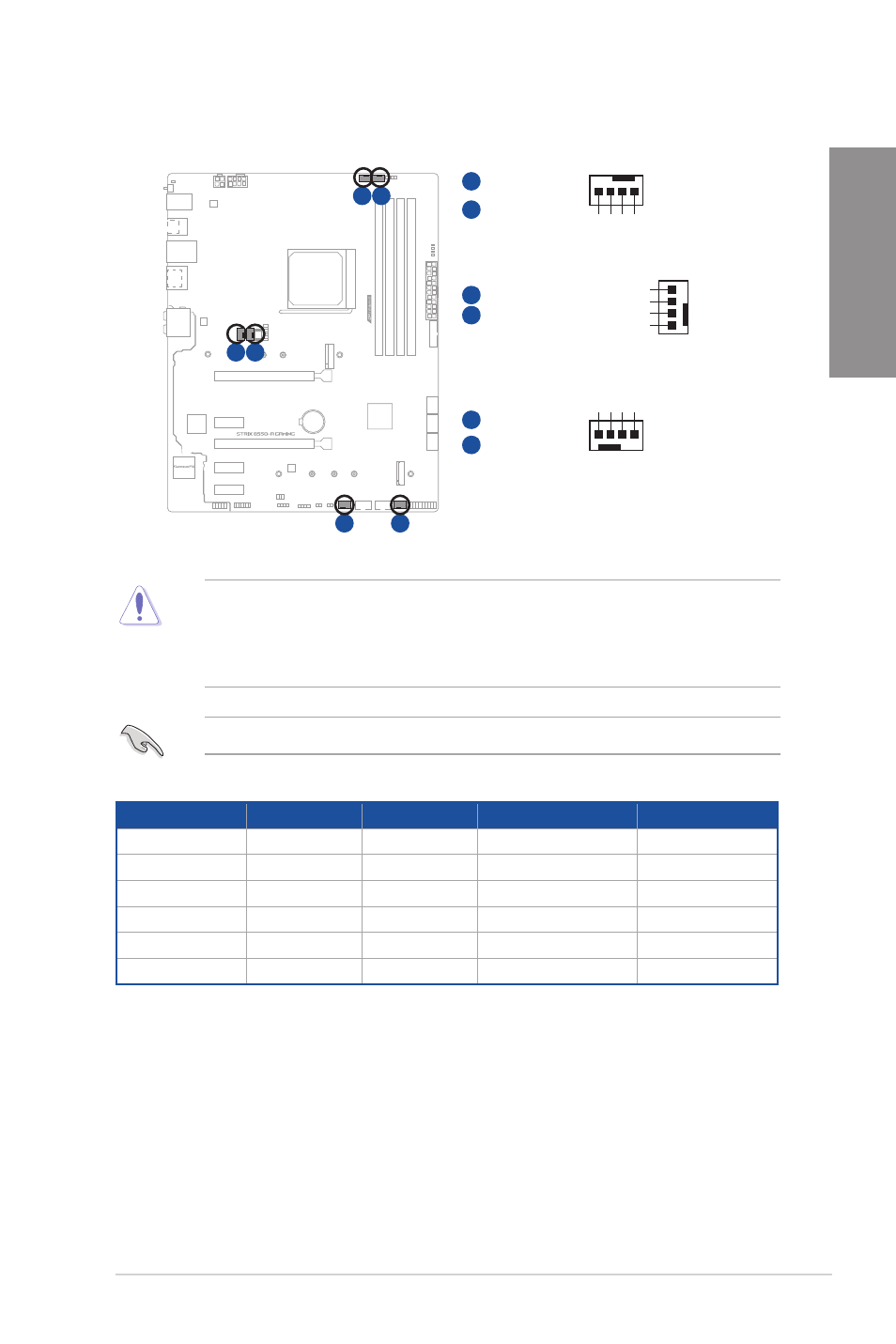

4. Fan and Pump headers
The Fan and Pump headers allow you to connect fans or pumps to cool the system.
CHA_FAN2
CHA_FAN3
GND FAN PWR FAN IN FAN PWM
FAN PWM
FAN IN
FAN PWR
GND
FAN PWM
FAN IN
FAN PWR
GND
CHA_FAN1
D
E
F
CPU_FAN
CPU_OPT
AIO_PUMP
A B
A
B
C
D C
E F
• DO NOT forget to connect the fan cables to the fan headers. Insufficient air flow
inside the system may damage the motherboard components. These are not
jumpers! Do not place jumper caps on the fan headers!
• Ensure the cable is fully inserted into the header.
For water cooling kits, connect the pump connector to the AIO_PUMP header.
Header Max. Current Max. Power Default Speed Shared Control
CPU_FAN 1A 12W Q-Fan Controlled A
CPU_OPT 1A 12W Q-Fan Controlled A
CHA_FAN1 1A 12W Q-Fan Controlled -
CHA_FAN2 1A 12W Q-Fan Controlled -
CHA_FAN3 1A 12W Q-Fan Controlled -
AIO_PUMP 1A 12W Full-Speed -
