AcousticPerformance™ Series Loudspeaker Application Guide 9
Music club
The next example is a music club with a compact stage area looking out over the audience. The main left and right loudspeak-
ers are a pair of AP-5152 boxes, flown from suitable rigging points in the ceiling. A pair of AP-212sw subwoofers are clustered
together just under the apron of the stage. For patrons who are up close in the center, an AP-4122m serves as a center fill.
For the musical acts, three AP-4122m loudspeakers will service as monitor wedges; their size make very efficient use of the
available space on the stage.

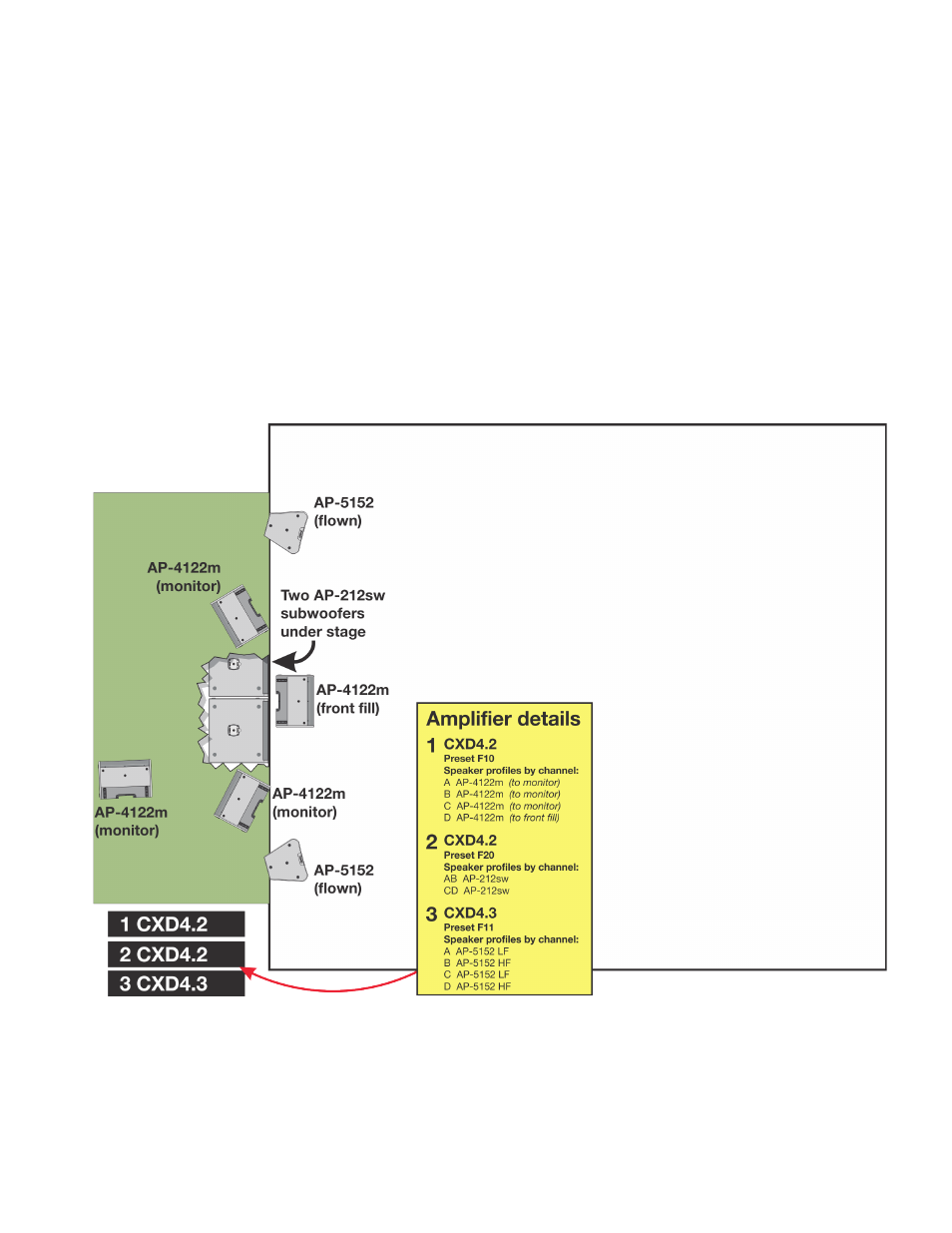

They’re all powerd by two QSC CXD4.2 and one CXD4.3 amplifer. See the floor diagram below for details on the presets and
loudspeaker profiles selected.
