Classic
®
300D
www.lincolnelectric.com
[3]
A CLOSER LOOK
QUALITY AND RELIABILITY
• Both engines have glow plugs for cold weather starting.
• Automatic shutdown protection for low oil pressure or high water
temperature.
• Electronic engine idler extends engine life and reduces fuel
consumption.
• Engine protection/control printed circuit board is trayed and potted
to provide a robust environmental shield.
• Single-side engine access for easy routine maintenance.
• Attractive and durable pearlescent gray finish paint.
• Three-year Lincoln warranty. (Engines warranted separately
by the manufacturers).
• Manufactured under a quality system certified to ISO 9001
requirements and ISO 14001 environmental standards.
• Approved by Canadian Standards Association (CSA).
1.
Current Range Selector
2.
On/Off Switch
3.
Idler Control
4.
Engine Protection Light
5.
230V AC Receptacles
&
Cover
6.
230V Circuit Breakers @ 20 Amps each
7.
Engine Temperature Gauge
8.
Battery Charging Ammeter
9.
Engine Oil Pressure Gauge
10. CC-Stick/CV-Wire Switch
11. Local/Remote Control Wire for CV-Wire
12. CV Voltage Adjustment for Wire Welding
13. 14-Pin Wire Feeder Connector
14. Fine Current Adjustment for Stick Welding
15. Engine Hour Meter
16. Start Button
17. Glow Plug Button
18. Local/Remote Receptacle
19. Local/Remote Control Switch
20. 115V AC Receptacles & Cover
21. 115V Circuit Breaker @ 20 Amps
22. Custom Arc
®
High Idle RPM (OCV)
Adjustment Dial (Kubota
®
Model only)

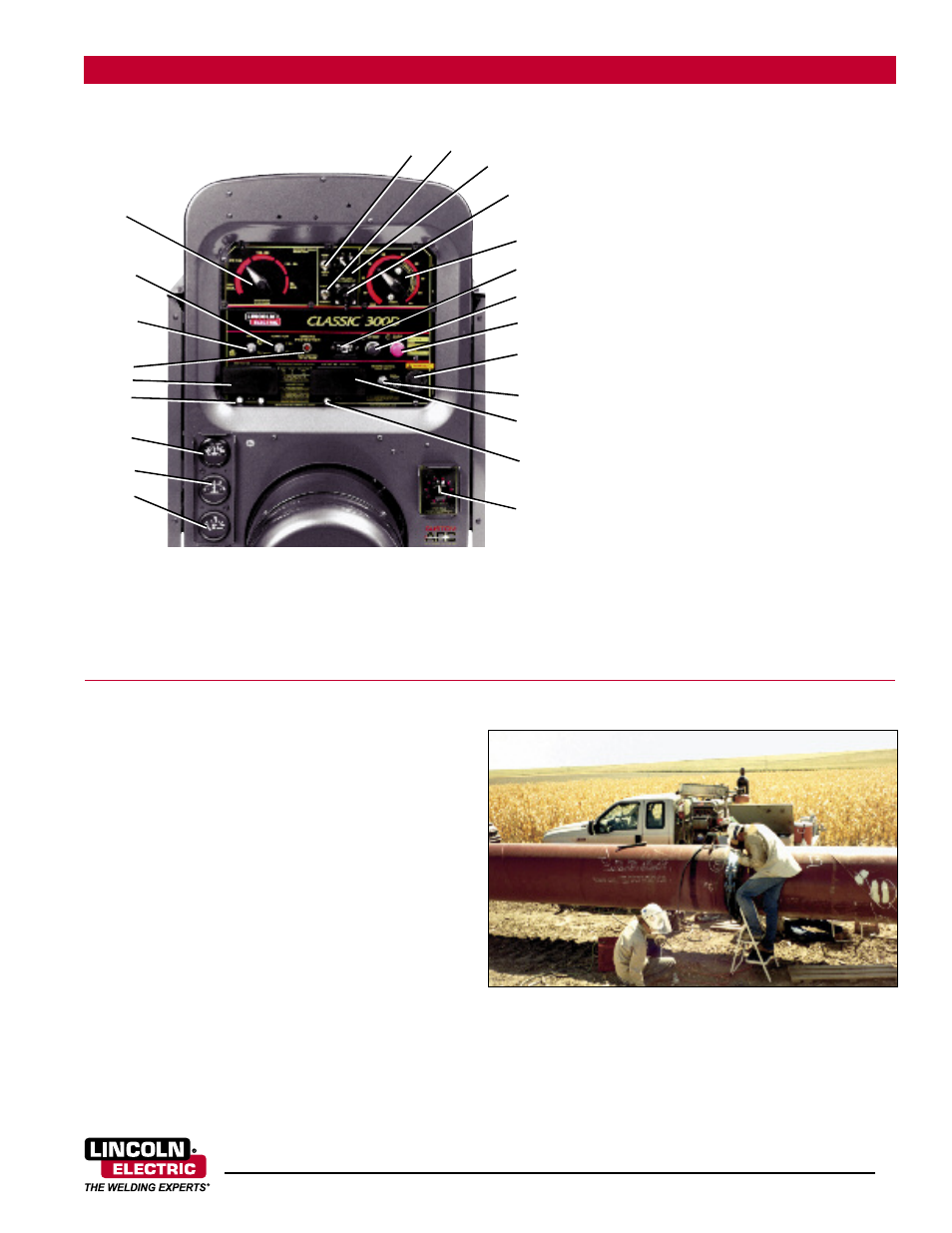

Key Controls
1
2
14
13
12
11
10
15
3
4
6
8
7
9
18
5
16
19
20
22
Kubota
®
Model Shown
with Wire Feed Module Controls
21
17
Cross-country pipe welding with Classic
®
300D.
