Typical Mixer Set-Up (Inputs)

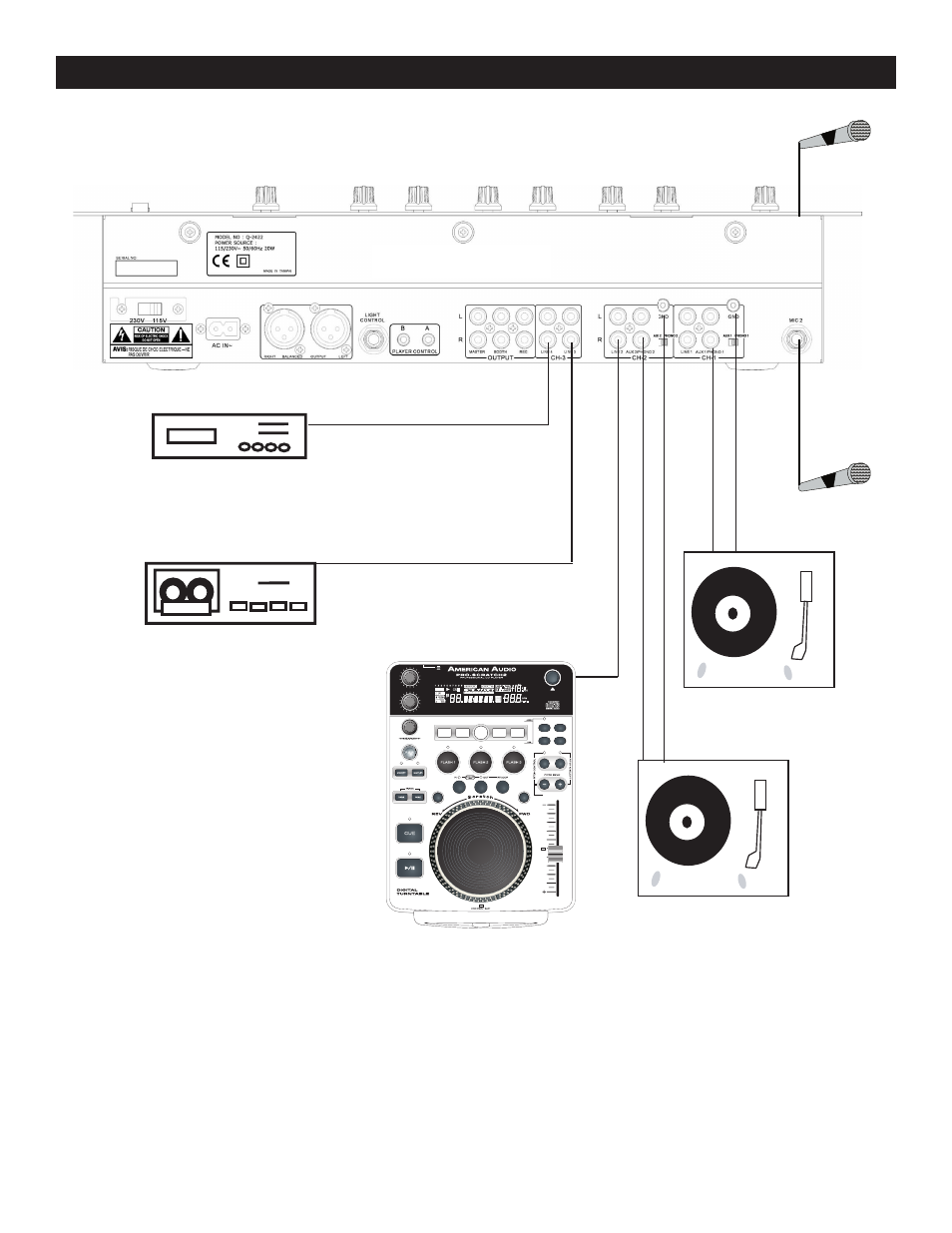

This image details a typical DJ Set Up consisting of a microphone, turntables, CD players, and a tape deck.
Note: Turntables can only be connected to the PHONO LEVEL RCA JACKS (37, 35). Be sure the LINE
LEVEL SELECTOR SWITCHES (36) are in the "PHONO" position when using turntables.
©
American Audio
®
- www.AmericanAudio.com - Q-2422/SX User Instructions page 15
SET-UP INSTRUCTIONS
CD PLAYER
� � � � �� � � �
PARAMETER TIME
PARAMETER RATIO
EJECT
POWER
CUE 1 2 3 4 5 6 7 8 9 0
RELOOP
SINGLE
LOOP
REMAIN NONSTOP TOTAL ELAPSED
M T S
PROGRAM
LOCK KEY SYNC. BEAT
F PITCH BPM
CUE AUTO BPM
OFF
ON
FX MIX
BOP
ENTER
PAN FLANGER SKID PHASE
FX SELECT SGL/CTN
TIME REV.PLAY
TEMPO LOCK 4%/8%/16%
TRANS ECHO SCRATCH FILTER HOLD
ON/OFF
SAMPLE PITCH
� � � � �� � � �
CASSETTE DECK
