Autoquip FREIGHTLIFT FLH - Manual (Page 44)

44
BOTTOM MAST
WELDMENT
BOTTOM MAST
WELDMENT
TOP MAST
WELDMENT
1/4
1/4
TYP
1/4
TYP
TOP MAST
WELDMENT

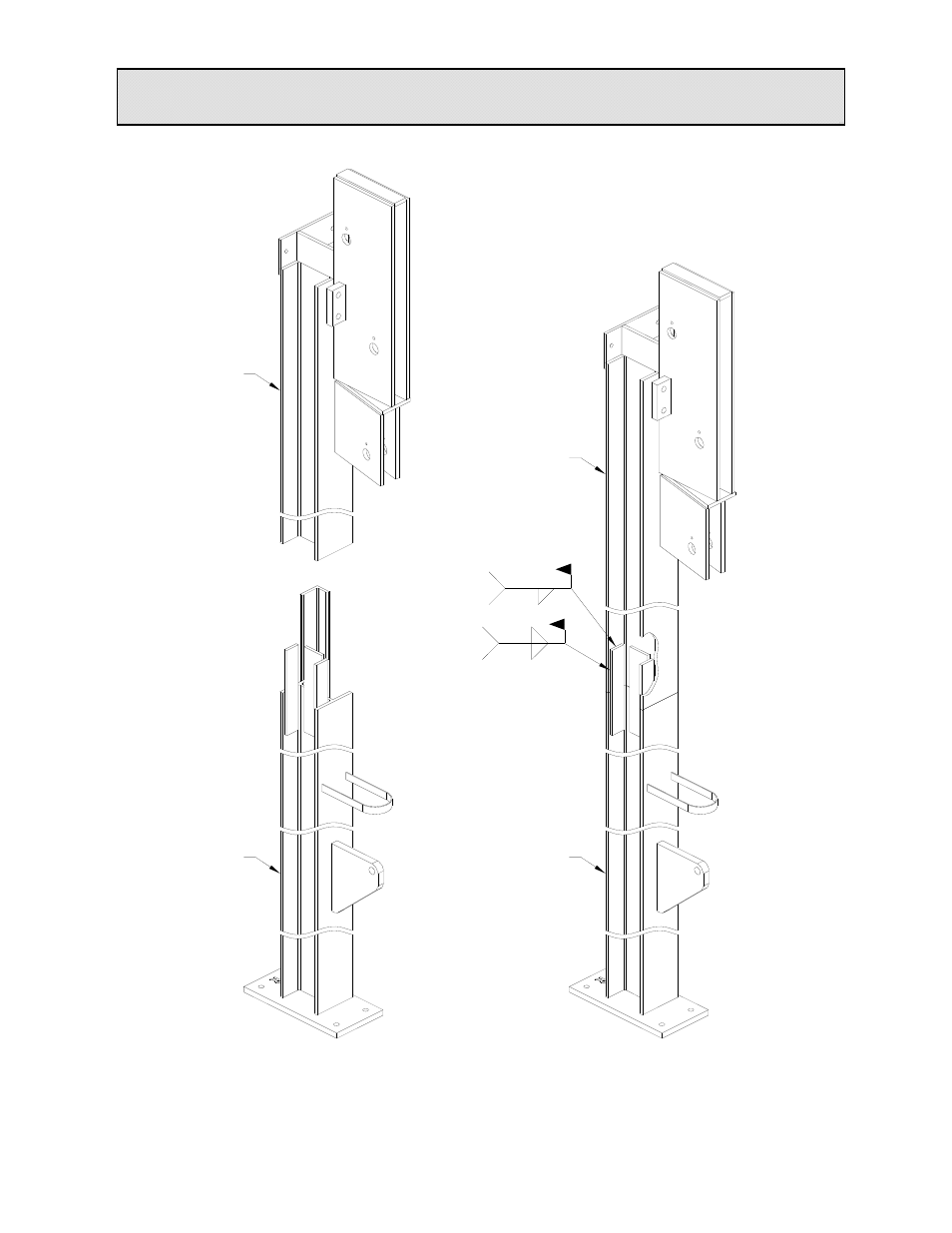

Figure 23 Mast Splice Detail
INSTALLATION INSTRUCTIONS
