NAC 252 Preamplifier

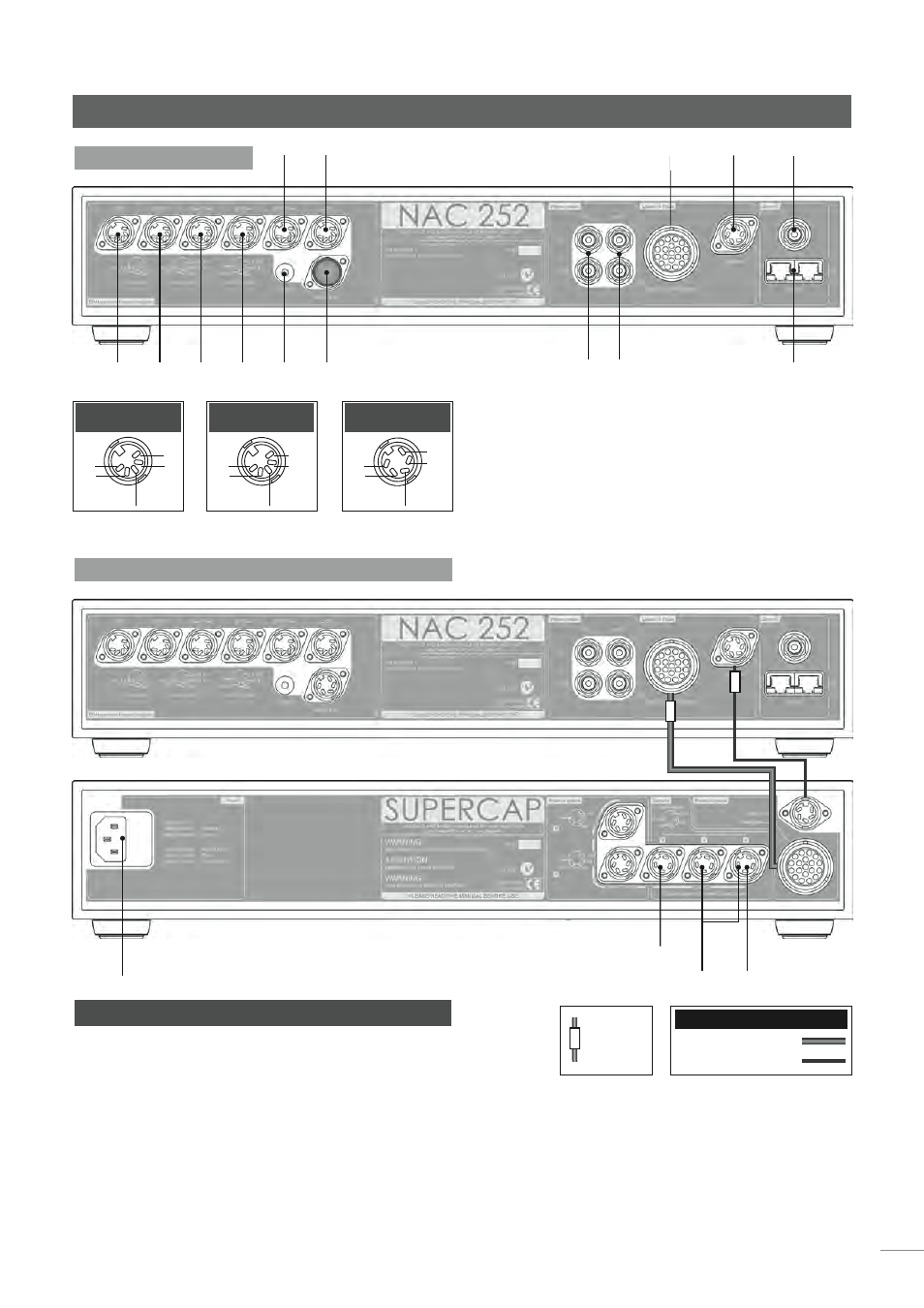

8.3 naC 252 Connected to supercap
mains input
and fuse
note: For best performance the Burndy and 5 pin DIN
cables should be run as close together as possible.
to stereo power
amplifiers
to mono or dual mono
power amplifiers
additional signal output
8.2 naC 252 rear
in 1
cd
in 2
tuner
in 3
tape
in 4
av
in 6 (alternative) cd/RCA Phono
ch1(L)
ch2(R)
aux 2/RCA Phono
ch1(L)
ch2(R)
RS232
interface
supercap RC5 in in 5
aux 1
in 6
aux 2
supercap
note: The NAC 252 AUX 2 input is provided with two
sockets. The lower socket, fitted on delivery with a
blanking cover, is intended for use with a Naim Audio RCA
Phono stage and incorporates an appropriate DC power
supply. The two sockets must not be used simultaneously.
note: The RS232/comms interface is an optional
upgrade. It can be specified at time of order or fitted
retrospectively. Contact your local representative or Naim
Audio directly for further information.
signal
ground
ch1
-ve
nc
nc
ch2
Inputs 1, 2 & 6
ch1
-ve
ch1
(out)
ch2
(out)
ch2
Inputs 3, 4 & 5
+ve
-ve
+ve
ch1
ch2
Input 6
(alternative)
cable
direction
marker
NAC 252 Burndy
240° 5 to 5 pin DIN
Interconnect Cables
9 NAC 252/Supercap Specification
Input sensitivities: 75mV, 47kΩ
overload margins: 40dB
(all inputs all audio frequencies)
main output Level: 0.775V, <50Ω
Tape output Level: 75mV, 600Ω
auxiliary Power outputs: For Naim phono stage.
Dimensions (H x w x D): Both 87 x 432 x 314mm
weight: NAC 252 - 7.0kg
Supercap - 11.6kg
mains supply (supercap): 100-120V or 220-240V, 50/60Hz
