This AT-SDI82M receives, equalizes, and reclocks* up to 8 SDI inputs, perfectly switches the
desired input to SDI equipped monitors or receivers. The switch supports both HD/SD-SDI bit
rates, and the re-transmitted quality is guaranteed. Through RS-232, IR remote, or front panel
push button, the control of the SDI switch becomes versatile and easier. By perfectly duplicating
the chosen SDI input, this SDI switch provides two identical outputs, and acts like a SDI splitter.
AT-SDI82M offers the most convenient and cost effective means for swift switch and duplication
of high quality SDI in the market.
• HD/SD-SDI Switch
• Up to 8 equalized & re-timing SDI inputs*
• Dual Color indication LED of HD/SD of the output SDI
• Automatic detection of the SDI Input
• Synchronizes input/output (switch after vertical sync)
• Provides the equalized and reclocked* transmission path up to 300m (1000ft) at SD-SDI or
150m (500ft) at HD-SDI
• Multiple control by RS-232, IR remote, and push button
*Optional upon request
Introduction
Features
1

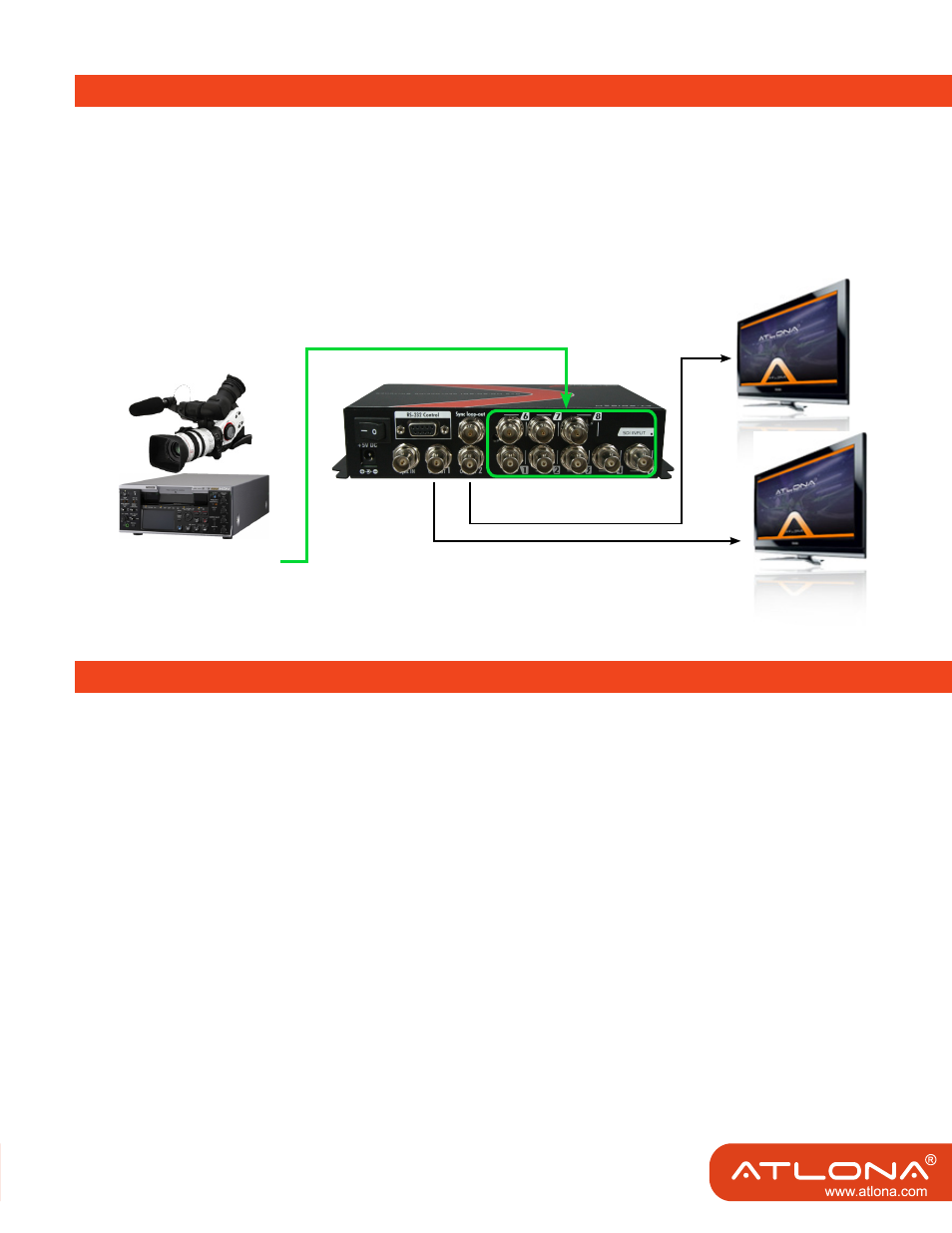

HD/SD SDI Source
Max. 8 inputs
SDI Cable
SDI Cable SDI Cables
HD/SD SDI LCD
HD/SD SDI LCD
