Hardware Installation

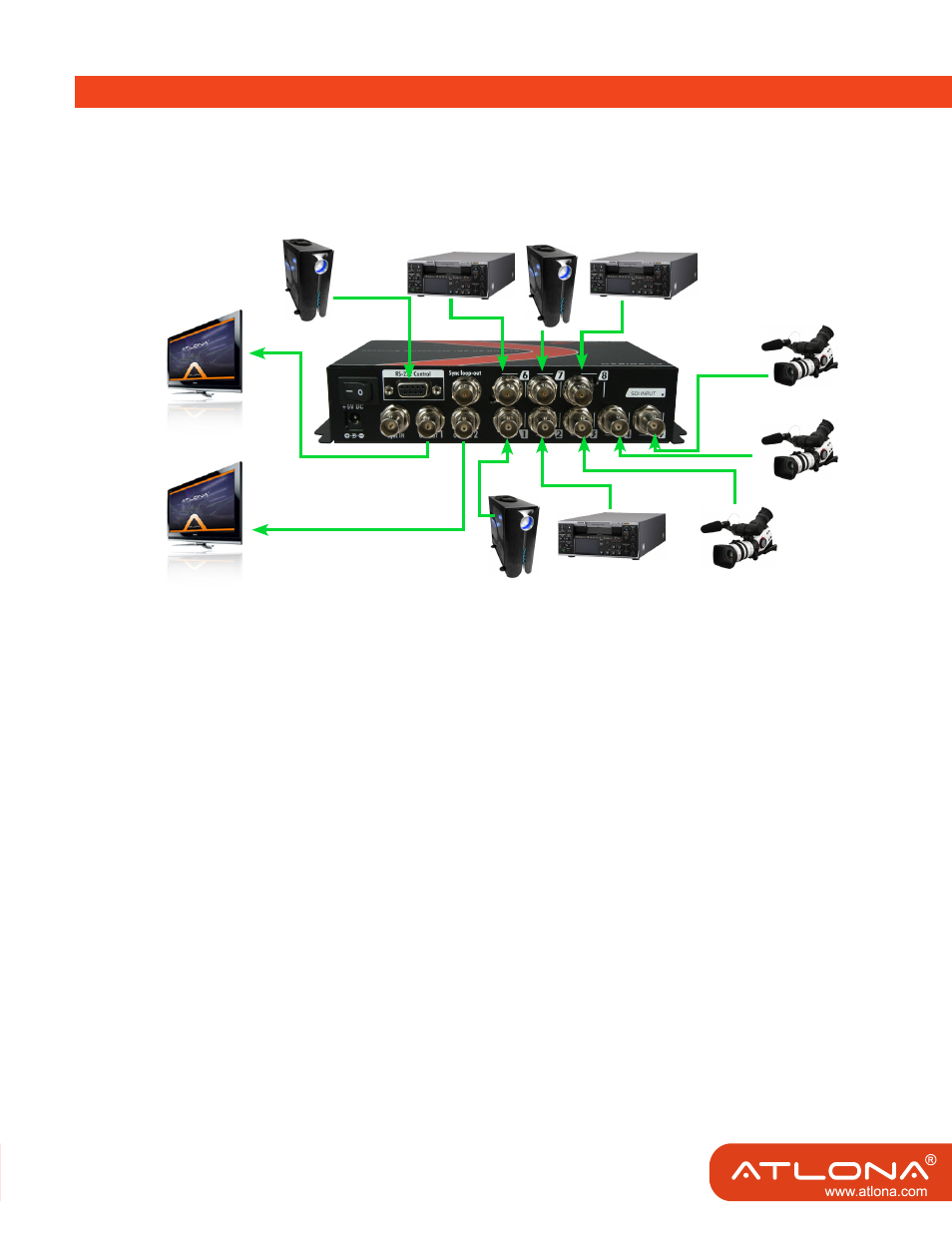

1. Connect SDI enable equipments to the output of AT-SDI82M.
2. Connect the SDI input sources to the inputs of AT-SDI82M.
3. Plug power adapter cable into 5V DC power jack.
4. Use IR remote, RS-232, or front panel push button to switch between input channels.
HD/SD
SDI Display
HD/SD SDI Recorder
HD/SD SDI Recorder HD/SD SDI Recorder
HD/SD SDI Camera
HD/SD SDI Camera
HD/SD SDI Camera
RS232 control port
PC
PC
HD/SD
SDI Display
