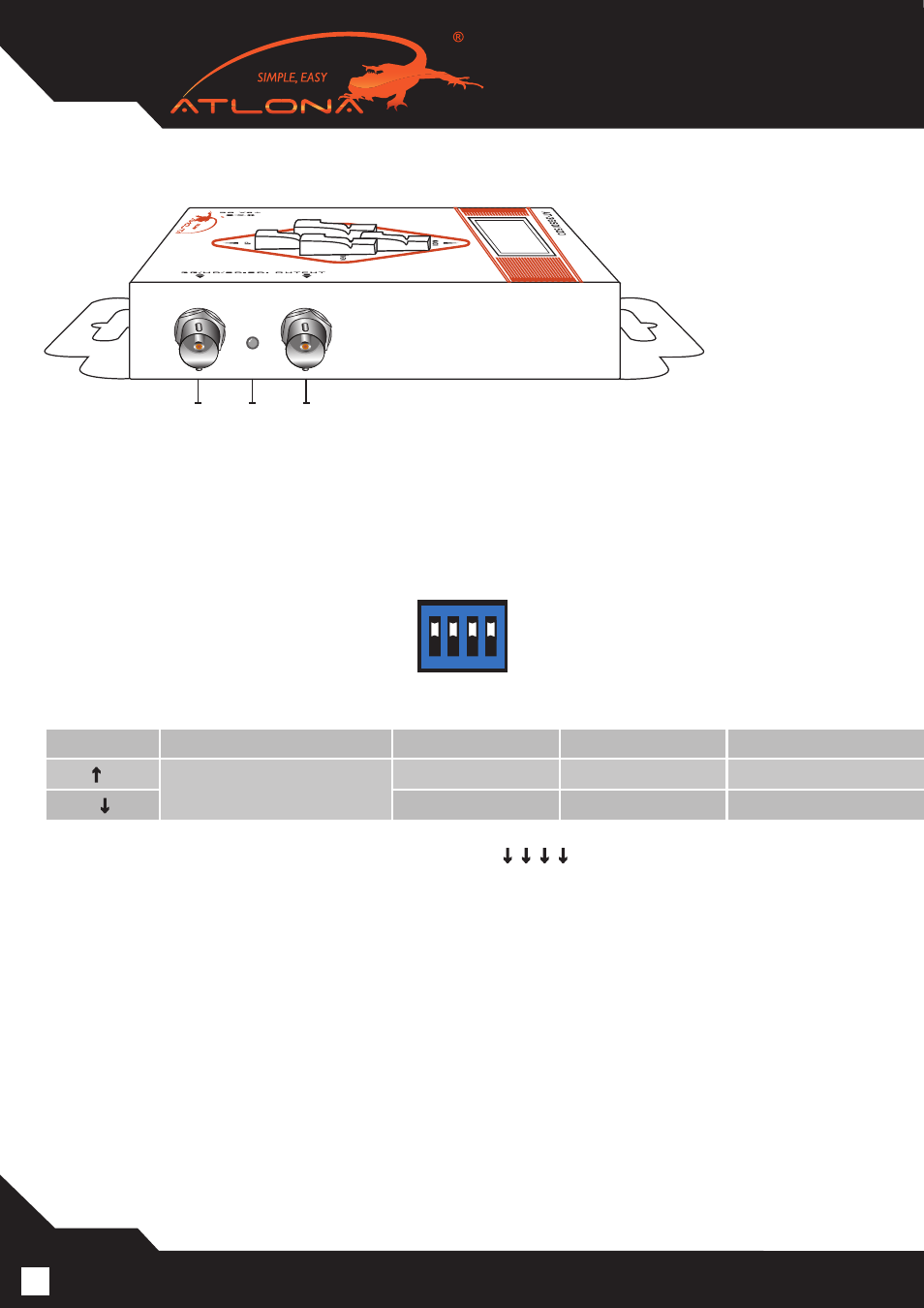

6.3. Output Panel
3
4
5
3. SDI OUTPUT A: Connect to a SDI device for SDI, HD-SDI, or 3G-SDI signal output either from the chosen
pattern or the converted HDMI
TH
source signal
4. Lock LED: showing if the audio/video signal existed or not
5. SDI OUTPUT B: Connect to a SDI device for SDI, HD-SDI, 3G-SDI signal output either from the chosen
pattern or the converted HDMI
TH
source signal
6.4. Bottom Panel
A 4-pin DIP switch is used for user interface, and users can access this switch from the bottom of the unit.
Pin No.
1
2
3
4
ON (
↑
)
Used for SMPTE352M
3G level B
10
Update EDID
OFF (
↓
)
3G level A
Not in use
Default EDID
1. Factory default for 4-pin DIP switch: OFF-OFF-OFF-OFF [
↓
-
↓
-
↓
-
↓
]
2. In order to keep the compatibility of HDMI
TH
to most monitors, AT-3GSDI500 features EDID learning ability.
The operation is shown in the EDID LEARNING section.
