Rev. 1.03 - 15 -
SPP-R200II

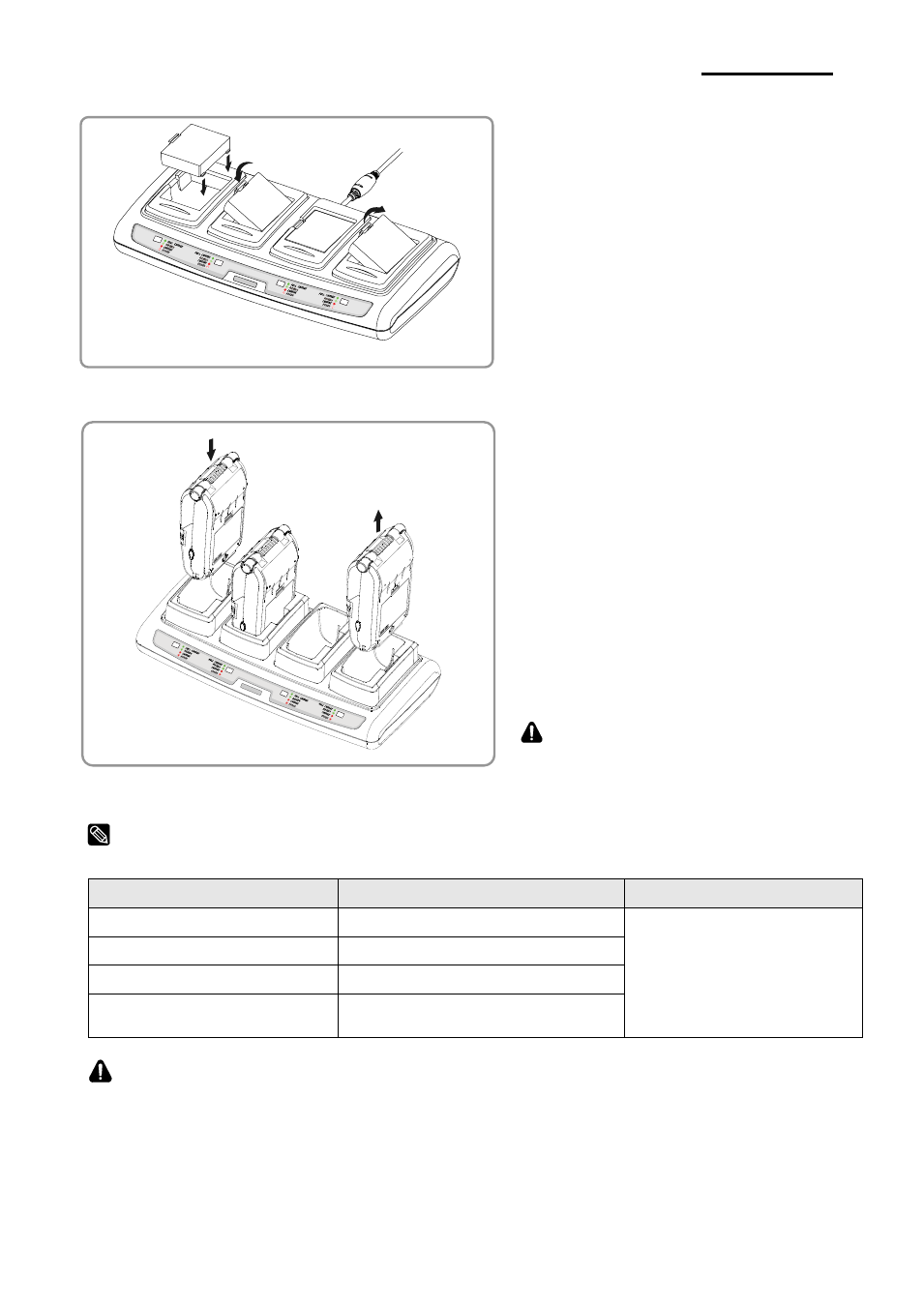

3-2-5-2 Charging Battery (Printer)
1) Fasten batteries via the battery hooks
into the quad battery charger as
shown above.
2) Push the battery in until a snapping
sound is emitted.
3) Charging begins as soon as the
battery is completely inserted.
( Batteries are charged to 8.4VDC, 0.8A .)
4) Push the hook and pull up to extract
the battery.
1) Turn the printer off.
2) Slide the printer in the quad docking
cradle as shown in the picture.
3) Push the printer in until a clicking
sound is heard.
4) Charging will begin when the printer is
installed.
5) When charging complete, Pull out the
printer to separate it.
CAUTION
Please be sure to use the battery with
external power contacts.
NOTE
Battery charging status descriptions are as follows.
Lamp Charge Status Charge Time
Red Lamp On Charging
2.5 hours
Green Lamp Blinking Over 80% Charged
Green Lamp On Fully Charged
Red Lamp Blinking
Error Replace
or Reinstall Battery
CAUTION
1. If the red lamp of the charger blinks, install the battery again.
2. If the red lamp continues to blink despite several attempts (4 ~ 5 times) to
install the battery, contact your local dealer.
3. The charging time may vary depending on the type of the charger or ambient temperature.
