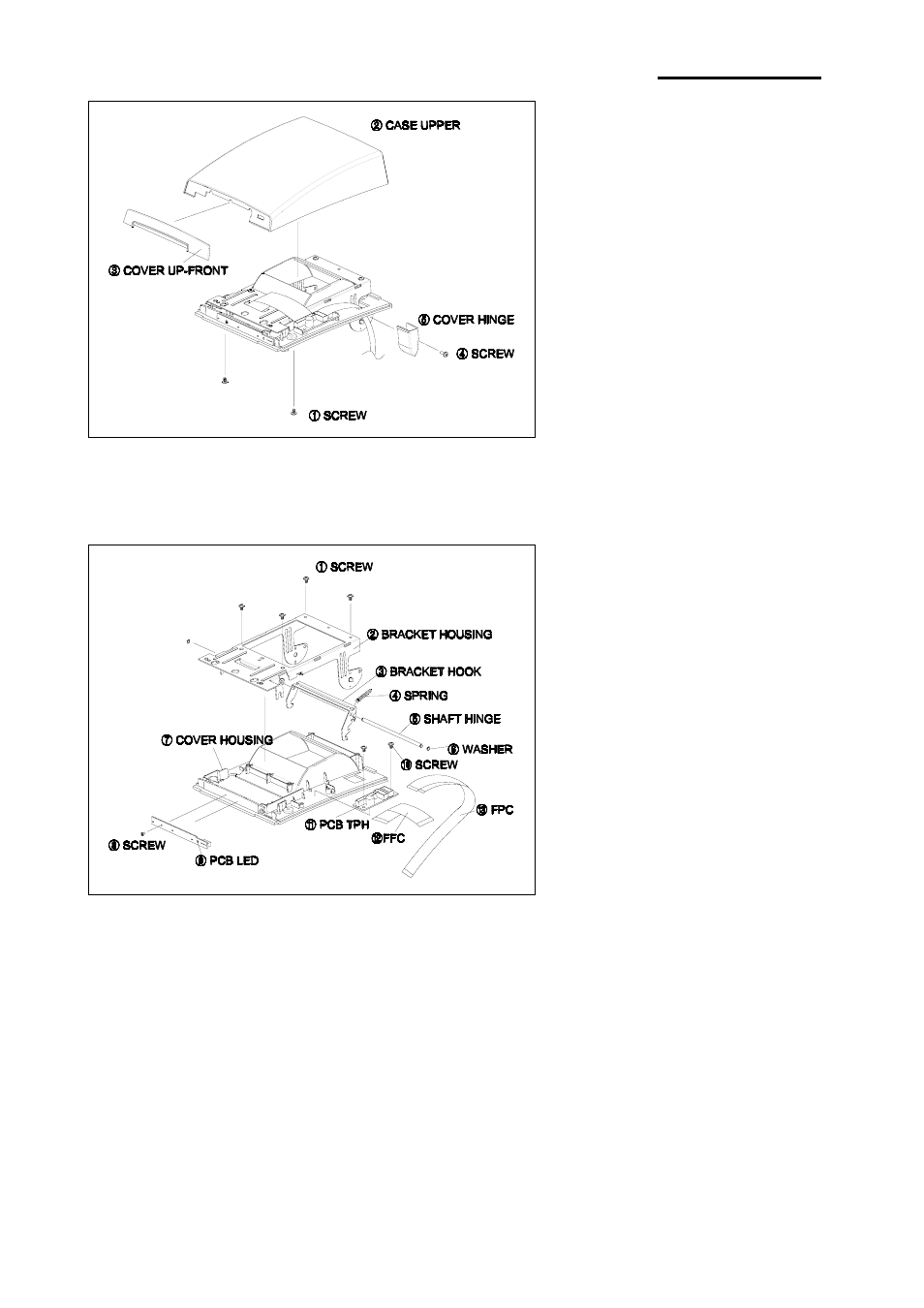

1. Remove the ①two screws.
2. Separate the ②CASE UPPER
from the ASSY HOUSING.
3. Separate the ③COVER UP-FRONT
from ②CASE UPPER
4. Remove the ④screw.
5. Separate the ⑤COVER HINGE
from the ASSY HOUSING.
1. Remove the ①four screws.
2. Separate the ②BRACKET HOUSING
from the ASSY HOUSING
3. Separate the ⑥two WASHER
from the ⑤SHAFT HINGE
4. Separate the ⑤SHAFT HINGE and
③ BRACKET HOOK and ④SPRING
from the ②BRACKET HOUSING
5. Remove the ⑧screw.
6. Separate the ⑨PCB LED
from the ⑦COVER HOUSING
7. Remove the ⑫⑬FFC,FPC
from the ⑪PCB TPH
8. Remove the ⑩two screws.
9. Separate the ⑪PCB TPH
from the ⑦COVER HOUSING
