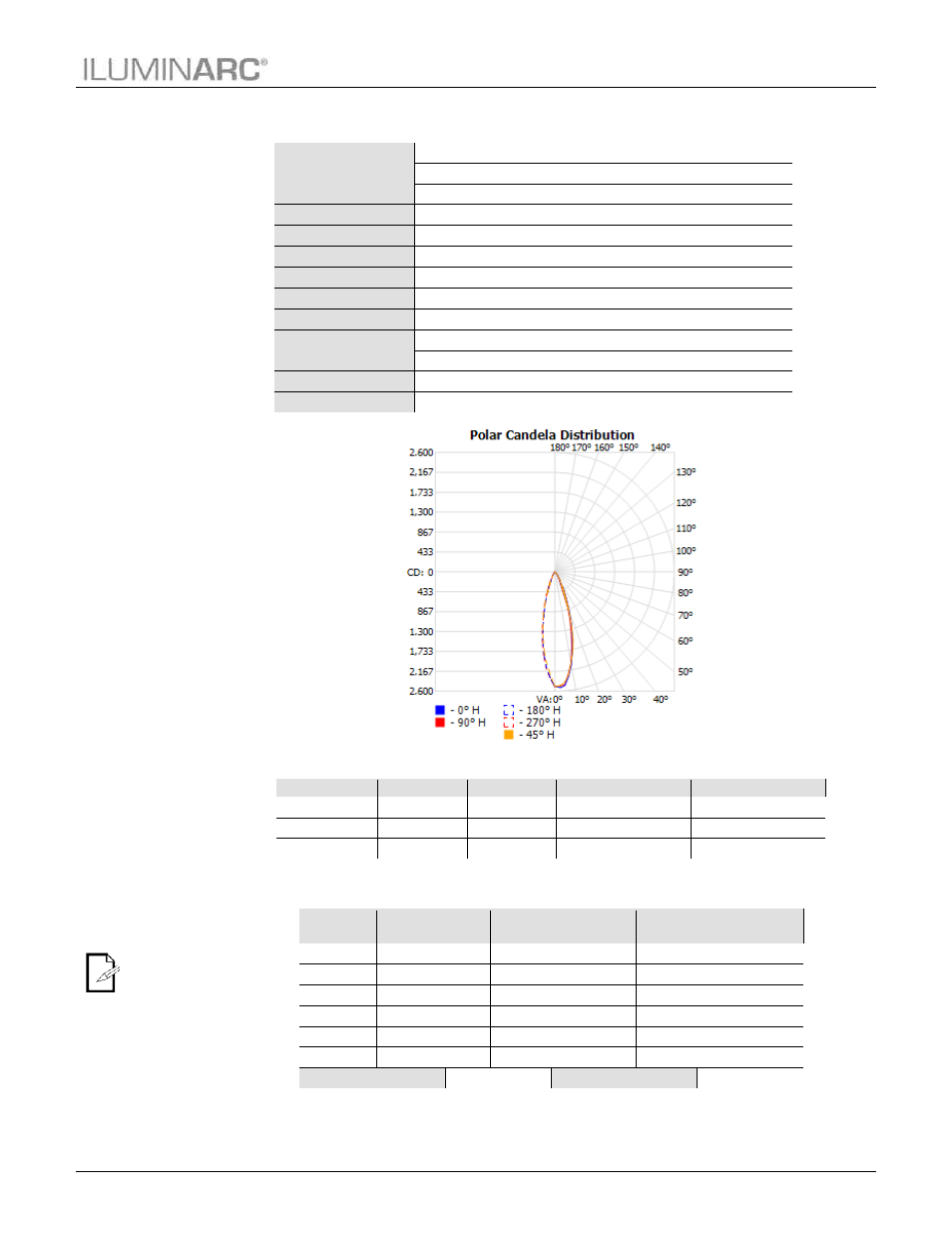

Technical Information
Ilumipod Inground IP Series User Manual (Rev. 4)
23
Photometrics
Pro 1.3.2
copyright 2003-
2008 by
jSolutions, Inc.
Reported data calculated
from manufacturer's data
file, based on IES
recommended methods
.
Ilumipod Inground 36 IP 30º RGB
Filename:
Ilumipod Inground 36 IP Optic 30 RGB 100% ALL
Manufacturer:
ILUMINARC
Luminaire:
Ilumipod Inground 36 IP Optic 30 RGB
Lamp:
12 Red, 12 Green, 12 Blue
Lamp Output:
1 lamp(s), rated Lumens/lamp: 1380
Max Candela:
2,520.5 at Horizontal: 0, Vertical: 3
Input Wattage:
43.3
Luminous Opening:
Point
Test:
2009 ALL
Test Lab:
Iluminarc R & D Optics Laboratory
Photometry :
Type B
CIE Class:
Direct
Cutoff Class:
Full Cutoff
Flood Summary
Illuminance at a Distance
Distance
(ft)
Center Beam
(fc)
Vertical Beam Width
(ft)
Horizontal Beam Width
(ft)
3
277.84
1.5
1.5
6
69.46
3.1
3.0
9
30.87
4.6
4.5
12
17.36
6.2
6.0
15
11.11
7.7
7.6
18
7.72
9.3
9.1
Vertical Spread
28.4º
Horizontal Spread
28.3º
Efficiency
Lumens
Horizontal Spread
Vertical Spread
Field (10%):
48.7%
672.7
55.4
55.2
Beam (50%):
25.6%
352.8
28.3
28.8
Total:
56.8%
784.4
