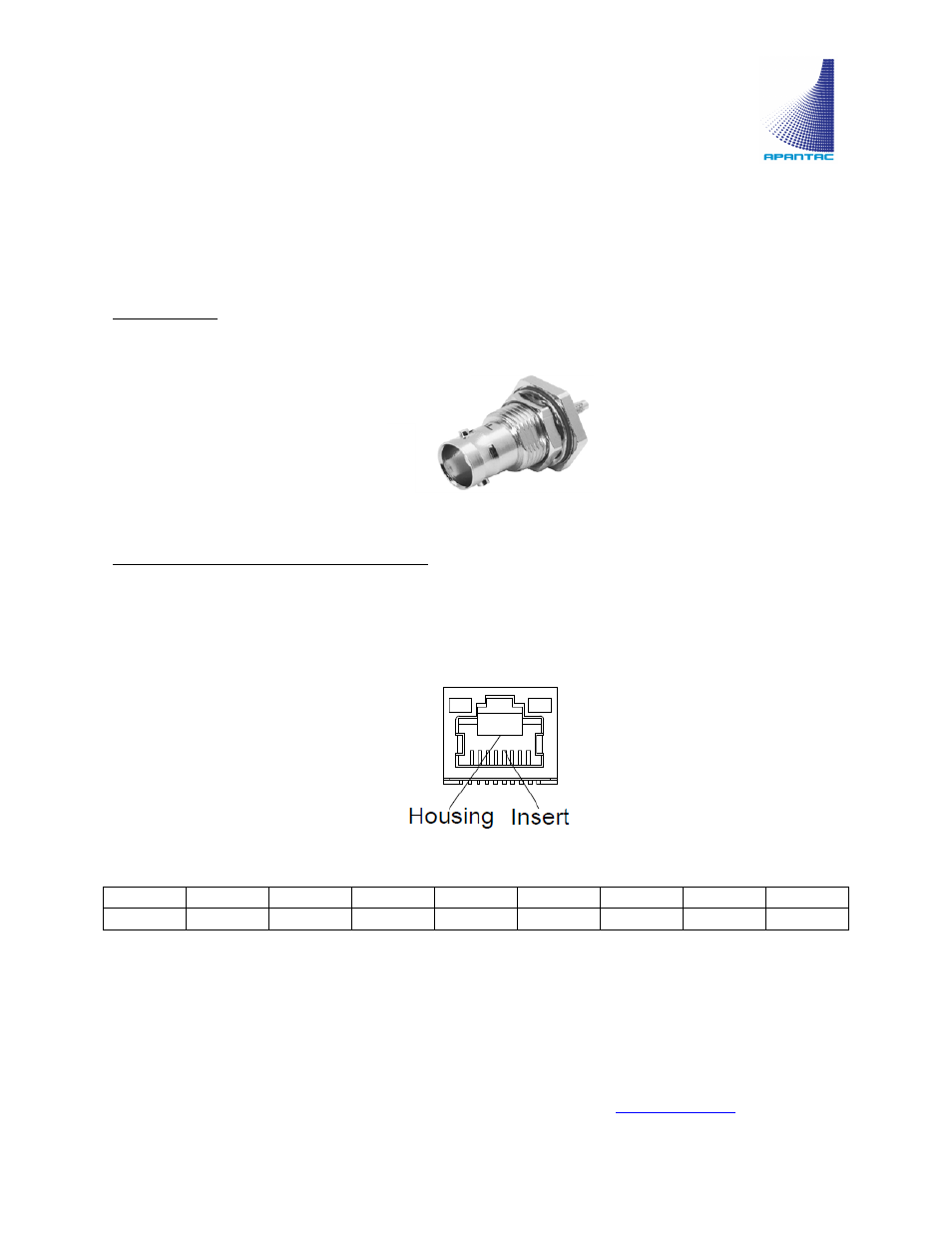

APPENDIX A: CONNECTORS
U
BNC Inputs:
• 4 X BNC Connector
• Auto Detection for SDI and CVBS signal
Figure 12 -75 ohm BNC Connector
U
HDMI / DVI RJ45 Output Connector:
• 3 differential pairs for data
• 1 differential pair for clock
• Total 8 pins
Figure 13 - RJ45 connector
Pin #
1
2
3
4
5
6
7
8
Function Clk+
Clk-
Data 2+ Data 1-
Data 1+ Data 2-
Data 0+ Data 0-
