Page 28 of 31

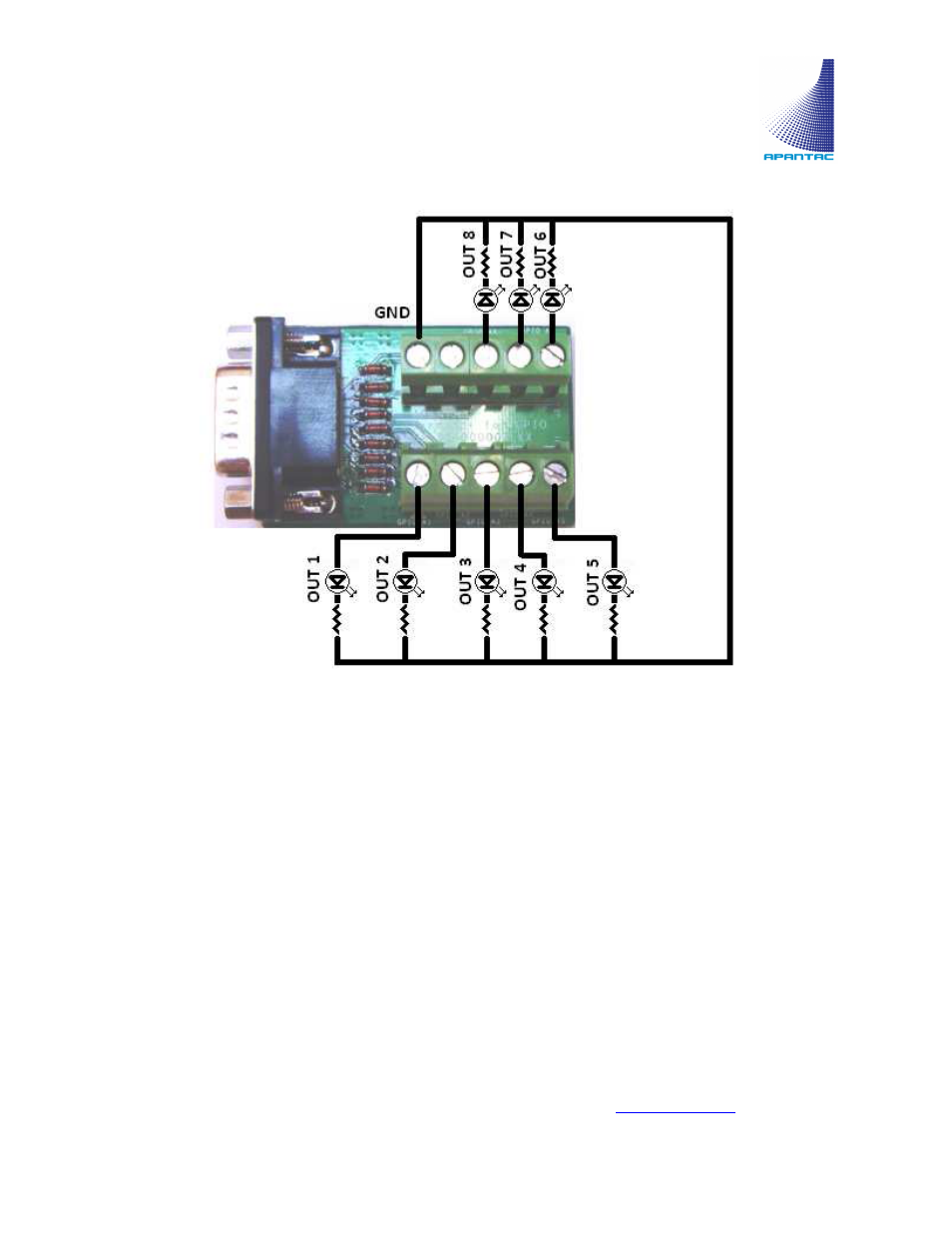

Figure 16 - GPI-OUT Wiring diagram. Connect this terminal block
to the RJ50 to DB9 cable shown in Figure 33. Note: All LED are
standard LEDs, all resistors are 150 ohms
