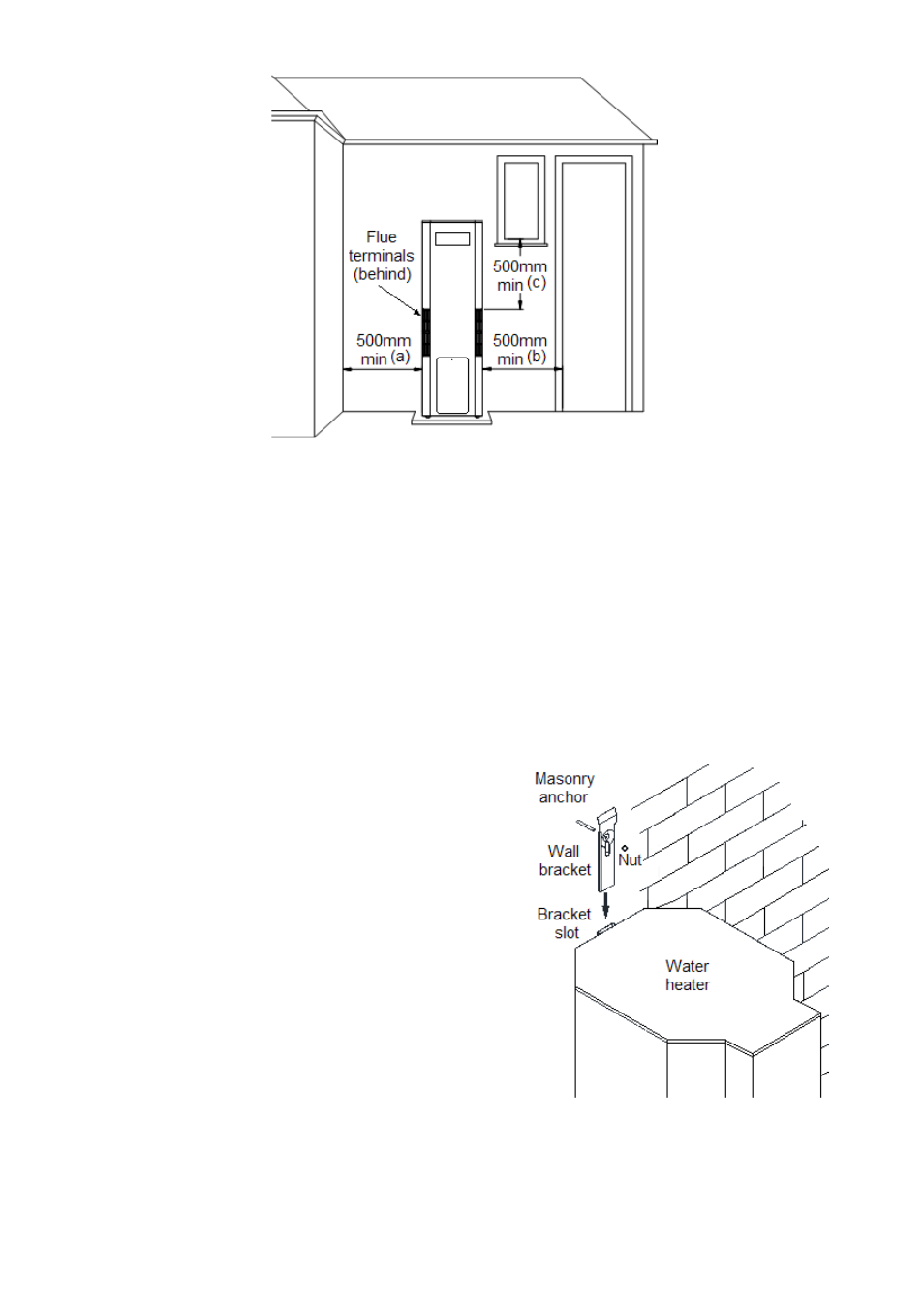

Examples a, b & c from previous table
Wall Bracket Installation
It is a requirement of AS 5601 and AS/NZS 5601.1 that water heater is
secured to a wall. The top of the water heater is to be secured to the wall
using the wall bracket and M6.5 masonry anchor provided with the water
heater (or other suitable fastener). It is necessary to fix the bracket to the
wall after positioning the water heater but prior to making the water and gas
connections.
To install the wall bracket:
1. Position water heater.
2. Slide wall bracket into formed slot at
top rear of water heater. Ensure
angled profile is facing wall.
3. Mark wall where hole is to be drilled.
4. Remove bracket.
5. Drill hole to receive the M6.5 masonry
anchor (or other suitable fastener).
6. Replace wall bracket with angled
profile facing wall.
7. Secure wall bracket to wall.
