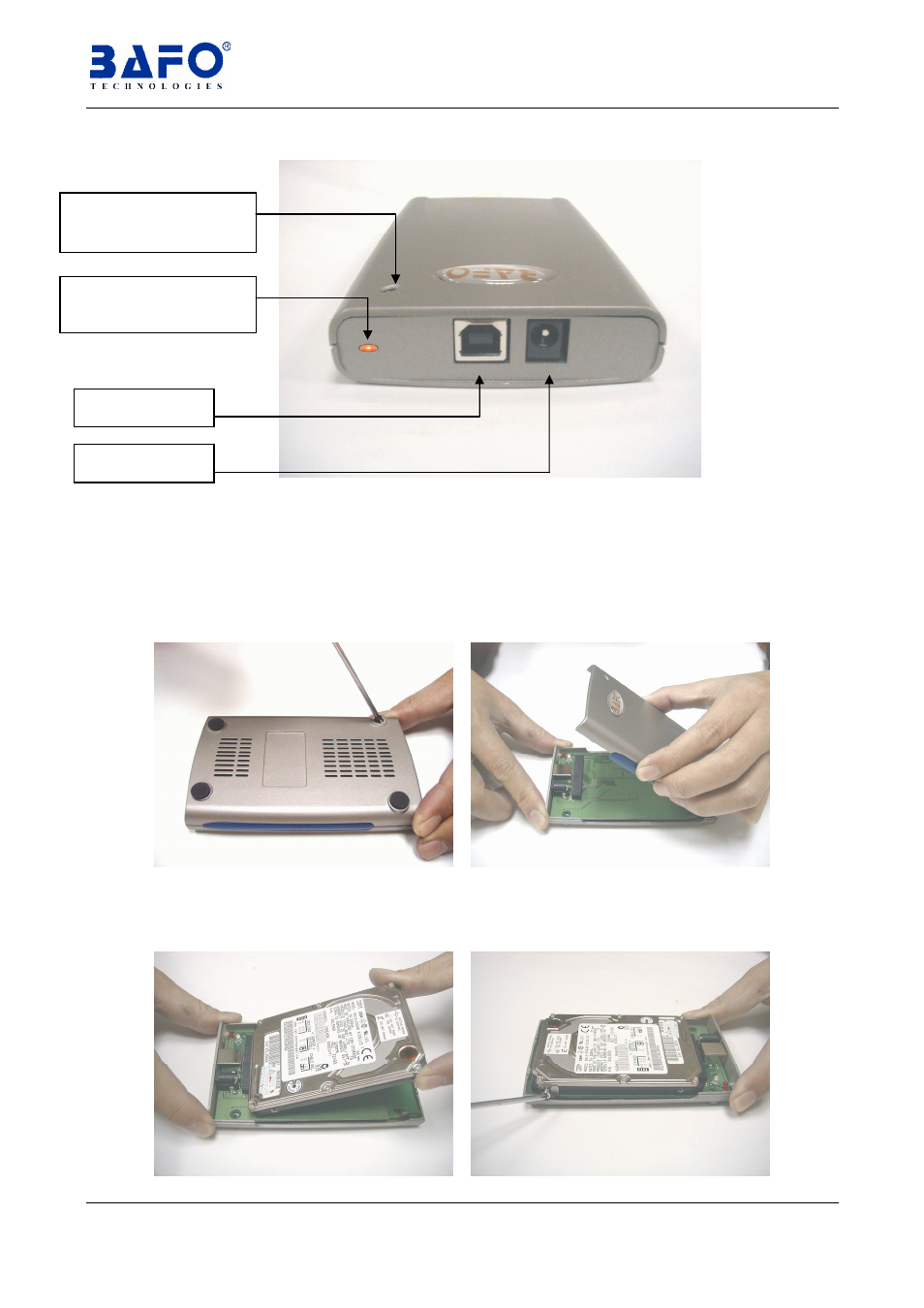

6.1 Follow the steps below to install 2.5” hard disk.
6.2 Remove the rubber pad and release the screws, then open the
USB Hard disk
enclosure
(Figure 1 ~ 2)
Figure 1 Figure 2
6.3 Assemble the 2.5” hard disk and fasten the screws. (Figure 3~ 4)
Figure 3 Figure 4
High/Full Speed
LED
Power Jack
Power/Access LED
Low-Speed
USB Jack
