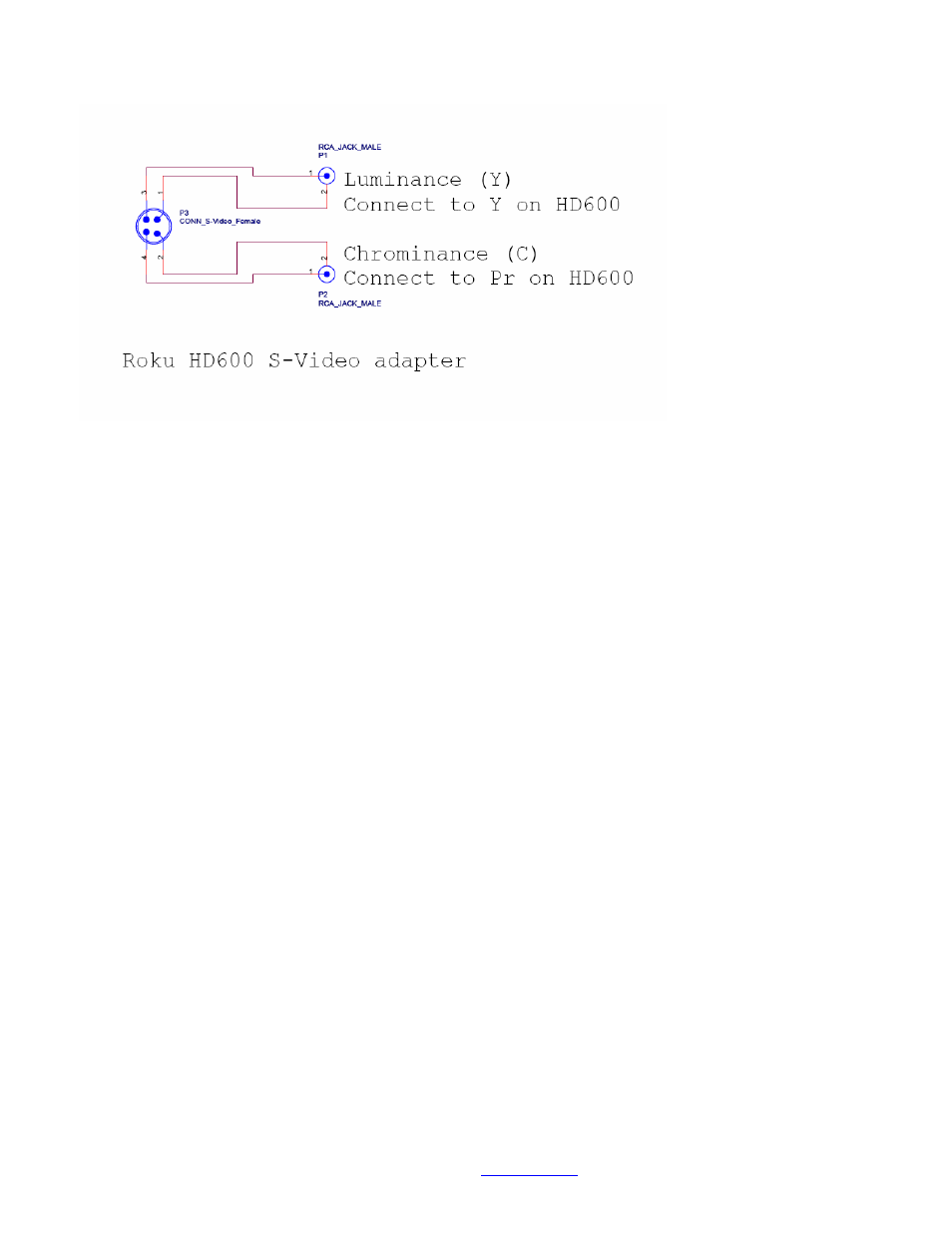

1/8” Audio connectors
The HD600 has three 1/8” female audio connectors. Each connector has a stereo audio signal. The full
scale voltage output of the audio is 3.06V PP, with no load. The minimum load resistance that should be
connected to the audio output is 3K Ohm.
The connectors have the following pinout:
Tip: Left audio
Ring: Right audio
Base: Ground for audio signal
