L-1884-C 17.

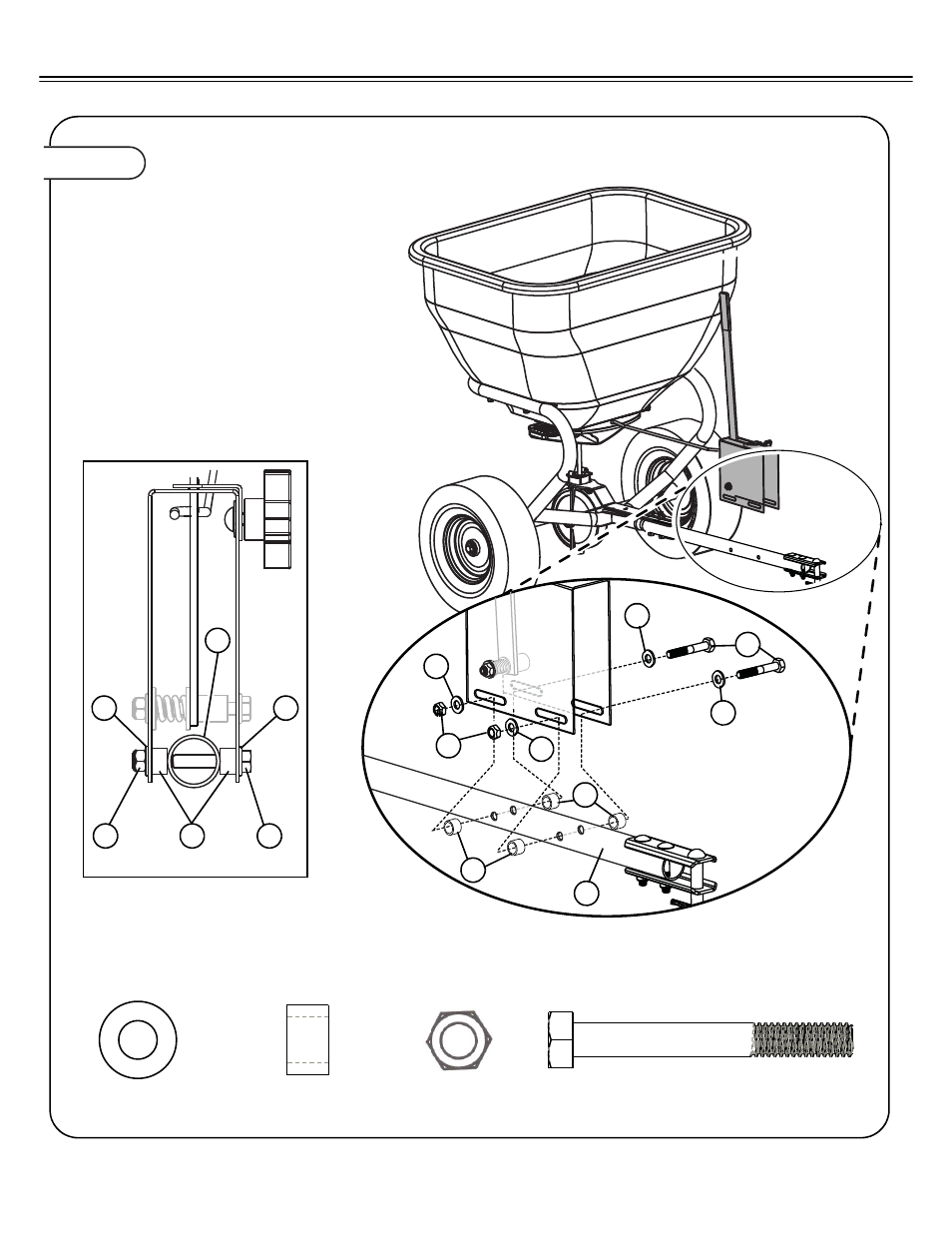

Figure 10b. ATTACH GAGE PLATE TO SPREADER
10c. Attach the Gage Plate to the Tow
Tube (28) as shown, using hard-
ware provided: Do tighten the hex
nuts until after calibrating the gage
plate.
• Two 5/16”x2-3/4” Hex Bolt (36)
• four 5/16” Flat Washers (32).
• Four Pivot Bushings (38).
• Two 5/1/6” Hex Nuts (15).
Note: See graphic inset below for hard-
ware orientation.
38
Bushing, Pivot
Qty. 4
36
5/16”x2-1/4” Hex Bolt
Qty. 2
32
Washer, 5/16”
Qty. 4
32
38
15
Hex Nut 5/16”
Qty. 2
32
32
36
38
15 32
28
15
32
38 36
32
28
ASSEMBLY
