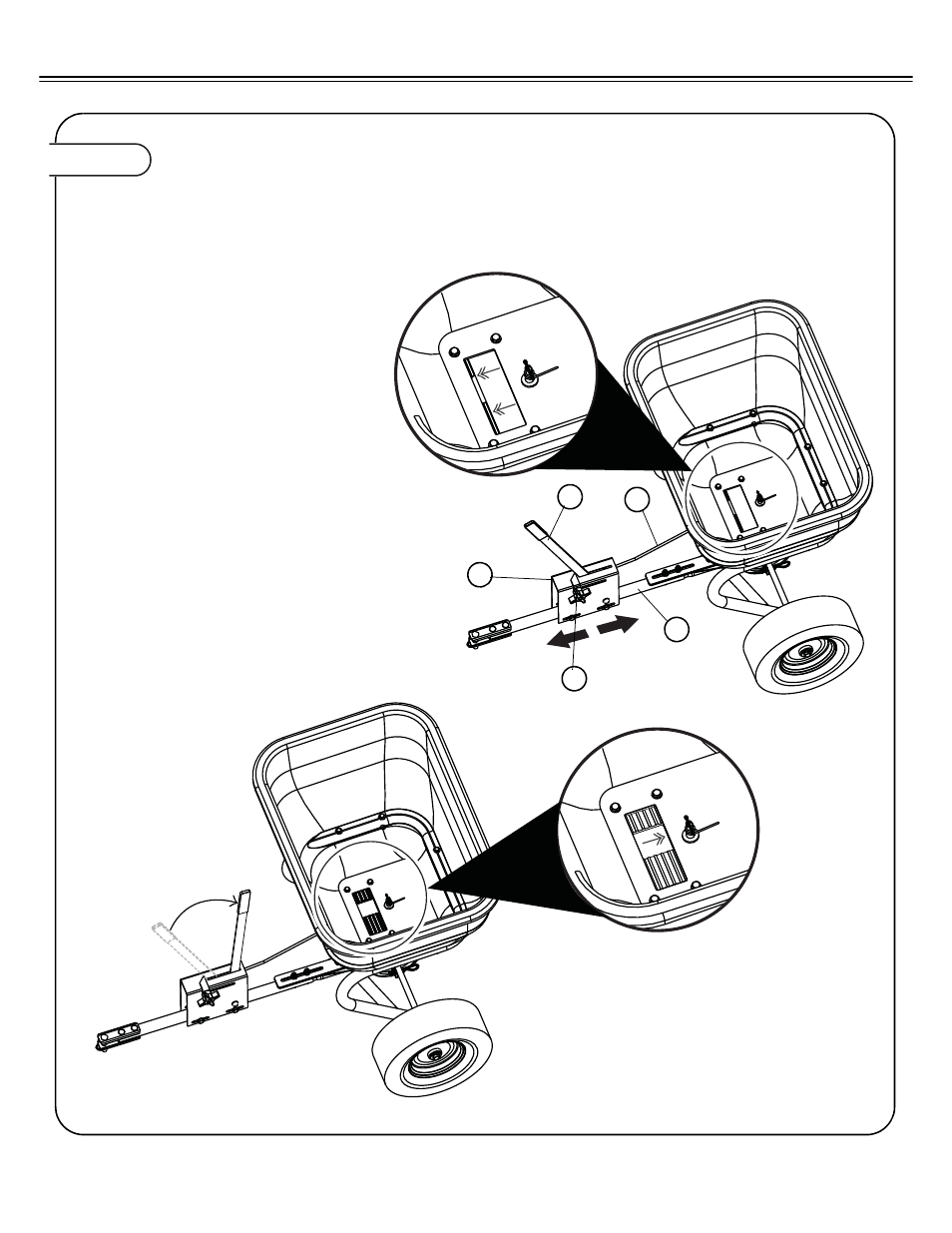

Figure 11. CALIBRATE GAGE PLATE
11a. Loosen the knob (29) and move to the
#10,OPEN position, retighten.
11b. Move Flow Control Handle (31) to the
#10, OPEN position.
11c. Ensure that hopper control gate (48)
opens fully, if not slide the gage plate
(11) forward or backward until control
gate is fully open
11d.Tighten gage plate securely to theTow
Tube (28) by tightening the hardware
installed in Step 10c.
11e. Move Flow Control Handle to the
CLOSE position, verify hopper control
gate fully closes.
11f Tighten Flow Control Handle securely
to the gage plate by tightening hard-
ware assembled in Step 9c.
Your broadcast spreader is now ready for
operation.
