4 - Features and Technical Data

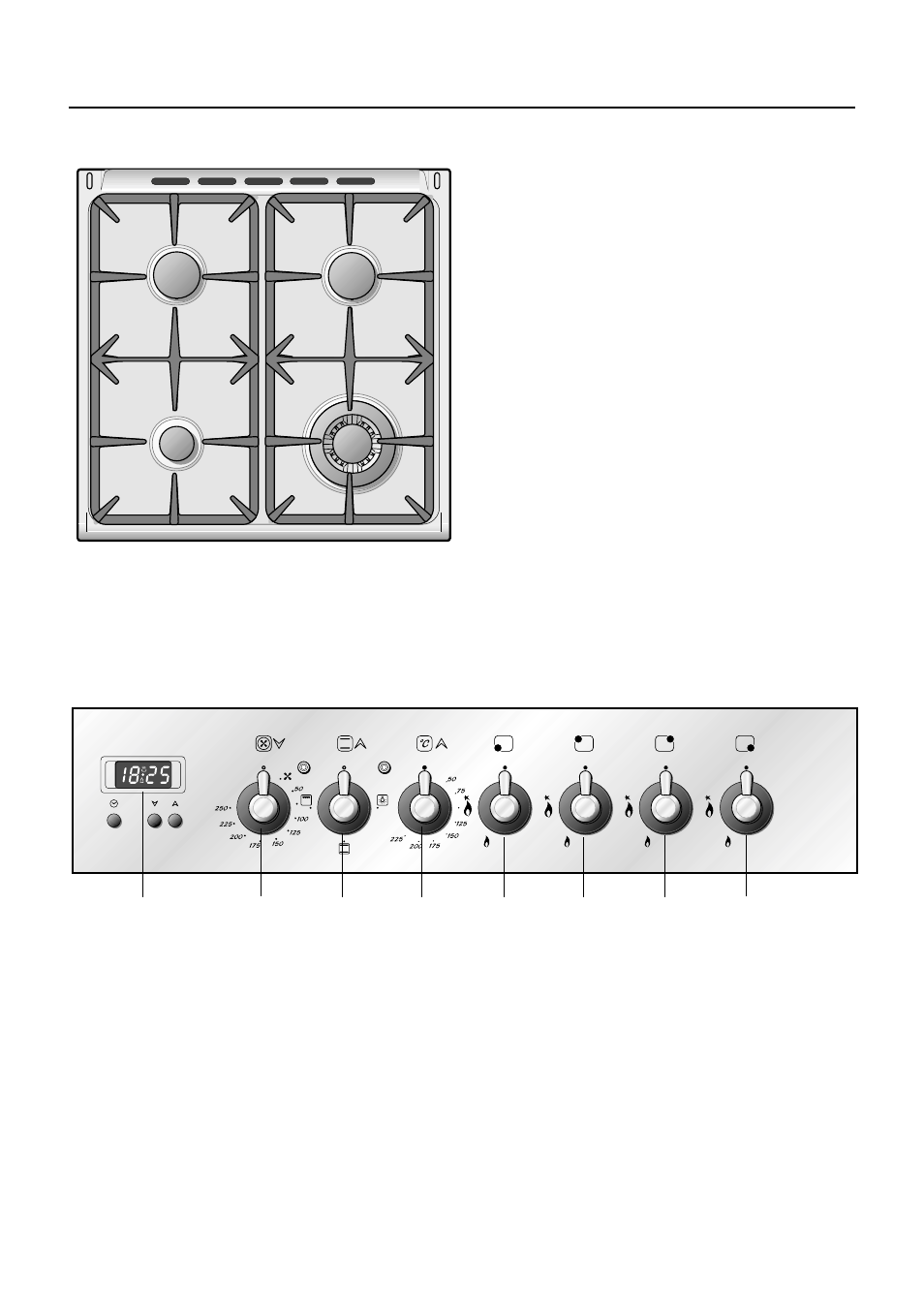

Control panel
Controls description
1. Front right burner control knob
2. Rear right burner control knob
3. Rear left burner control knob
4. Front left burner control knob
5. Conventional oven thermostat knob
6. Conventional oven function selector
knob
7. Main oven switch and thermostat knob
8. Electronic clock/end cooking timer
Pilot lamps:
11. Conventional oven temperature light
12. Main oven temperature light
Fig. 4.1 Fig. 1.1
2 2
3 1
Cooking hob
1. Auxiliary burner (A) 1,00 kW
2. Semi-rapid burner (SR) - 1,75 kW
3. Triple ring burner (TC) - 3,50 kW
Fig. 4.2
8 5 4 3 2 1 7 6
12 11
