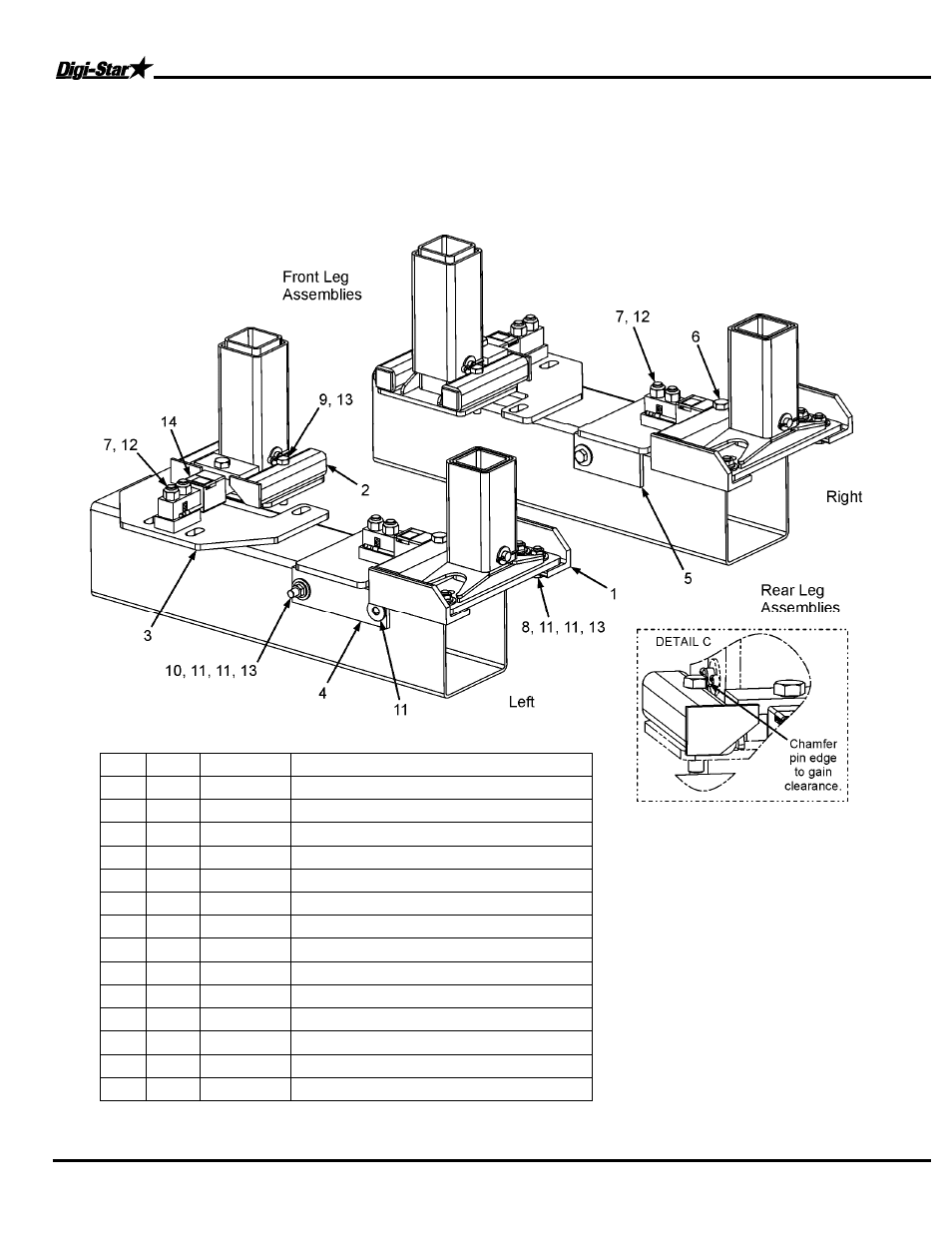

Repair Parts
8
John Deere Planter Scale
D3866-US-Rev A
REPAIR PARTS
406146 Kit – Scale JD1990 CCS Dual Rank 30’
406147 Kit – Scale JD1990 CCS Dual Rank 30’ (Indicator in cab)
KEY QTY. PART NO.
DESCRIPTION
1
2
406031
Weld-Top Rear Brkt (JD1990-03)
2
2
406051
Weld-Top Frt Brkt (JD1990-05)
3
2
406014
Weld-30’ Frt Brkt (JD1990-02)
4
1
406021
Weld-30’ LH Rear Leg (JD1990-01)
5
1
406017
Weld-30’ RH Rear Leg (JD1990-04)
6
4
406067
Scr-3/4-16 x 2.0 HHCS Zp Grd 5
7
8
406068
Scr-3/4-10 x 3.5 HHCS Grd 8 ZP
8
8
405896
Scr-5/8-11 x 2.0 HHCS Zp Grd 5
9
4
406071
Scr–5/8-11 x 3.5 HHCS Zp Special
10
2
406069
Scr-5/8-11 x 11.0 HHCS Zp Grd 5
11
22 405858
Wash-5/8 Flat Wide Zp
12
8
405921
Nut-3/4-10 Top Lock Zp
13
14 406070
Nut-5/8-11 Top-Lock Flange Zp
14
4
404284
Cell-1.5 Sq DB-21 Ft
