Digi-Star John Deere 1990 CCS Dual Rank 30/36/40/44 User Manual
Page 11
Repair Parts
D3866-US-Rev A
John Deere Planter Scale
9

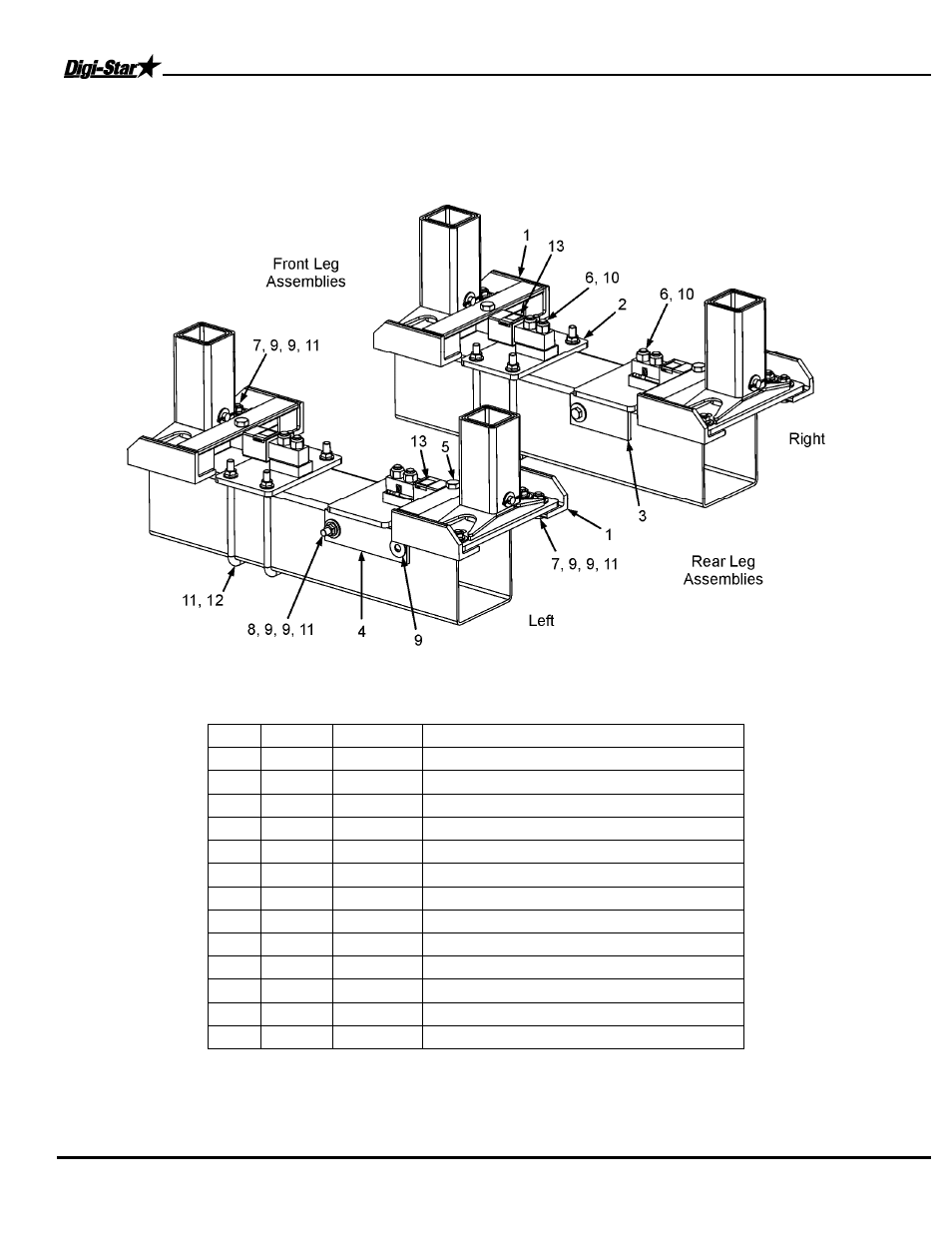

405942 Kit – Scale JD1990 CCS Dual Rank 40’ & 44’
405943 Kit – Scale JD1990 CCS Dual Rank 40’ & 44’ (Indicator in cab)
KEY
QTY.
PART NO.
DESCRIPTION
1
4
406031
Weld-Top Rear Brkt (JD1990-03)
2
2
406024
Weld-Base Rear Plate (JD1990-07)
3
1
406017
Weld-30’ RH Rear Leg (JD1990-04)
4
1
406021
Weld-30’ LH Rear Leg (JD1990-01)
5
4
406067
Scr - 3/4-16 x 2.0 HHCS Zp Grd 5
6
8
406068
Scr - 3/4-10 x 3.5 HHCS Grd 8 Zp
7
16
405896
Scr – 5/8-11 x 2.0 HHCS Zp Grd 5
8
2
406069
Scr – 5/8-11 x 11.0 HHCS Zp Grd 5
9
32
405858
Wash – 5/8 Flat Wide Zp
10
8
405921
Nut – 3/4-10 Top Lock Zp
11
26
406070
Nut – 5/8-11 Top-Lock Flange Zp
12
4
406025
Bolt-U 5/8-11 x 8.75W x 10.0L Grd 8 Zp
13
4
404284
Cell-1.5 Sq Db-21 Ft
