Scale Bracket and Load Cell Mounting Installation
2
John Deere 750/1560/1590-20 ft Grain Drill
D3858-US-Rev A
SCALE BRACKET AND LOAD CELL MOUNTING INSTALLATION
1. Remove the cat walk and drive chain off of both the ten foot seed bins.
2. On the left side of the seed bin, loosen the four bolts that hold the seed bin to the frame. DO NOT
remove bolts. Repeat the process on the right side.
3. Remove the bolts on the middle of the two seed boxes. The access hole will need to be cut in order to
access the back bolts.
4. On the inner frame on the left and right sides (that runs under the seed bin) place a jack between the
frame and seed bin. Lift the middle of both seed bins up about 2-3”. Install the middle bracket. Do not
tighten bolts.
Important:
The lifting chains, bucket attachments, loader/skid steer or winch must be capable of lifting
and controlling 1000 lbs.

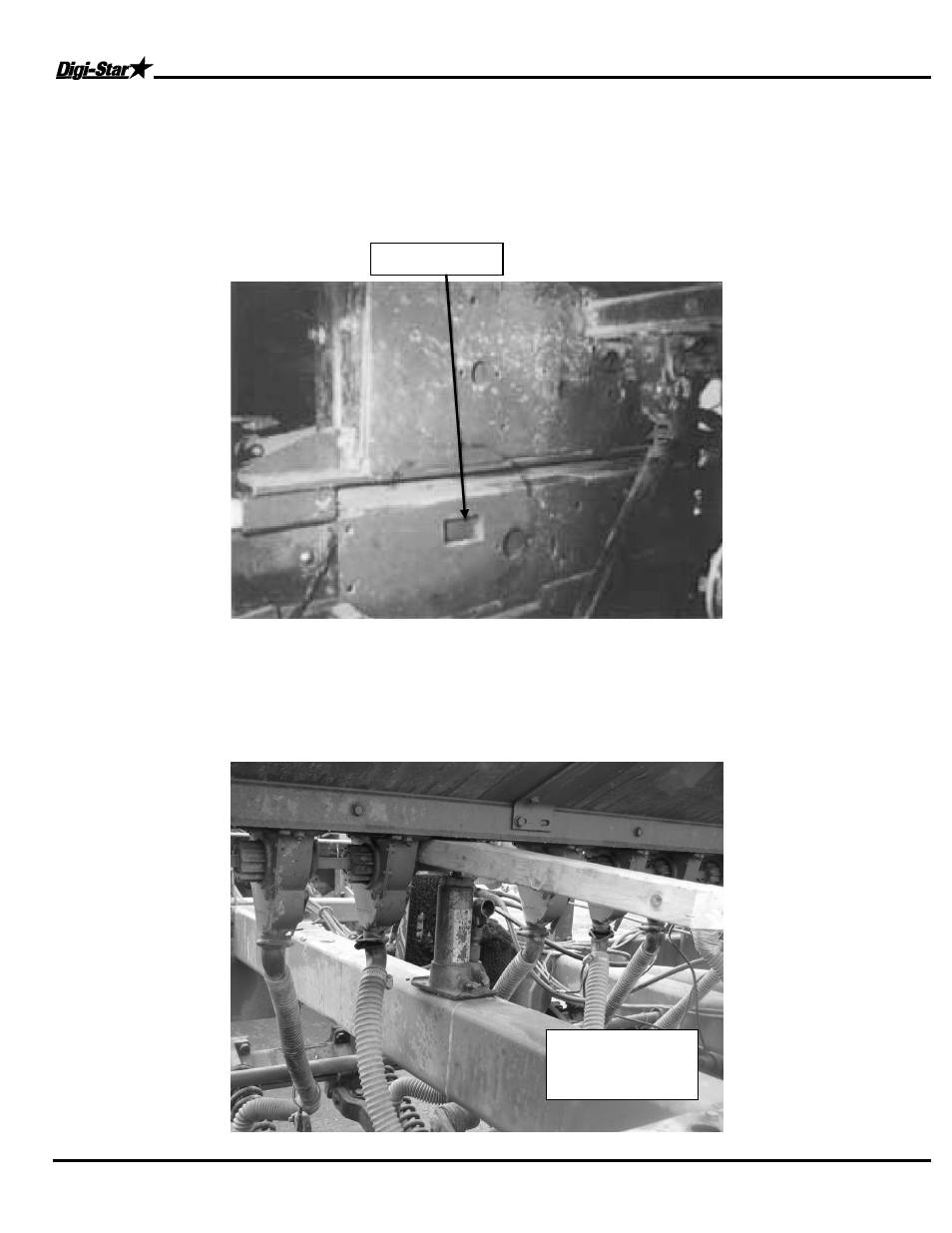

Access Hole
Method of lifting
both sides of the
middle bin
