Scale Bracket and Load Cell Mounting Installation
4 John Deere 750/1560/1590-20 ft Grain Drill D3858-US-Rev A
8. On the left side, remove the bolts that hold the seed bin to the frame.
9. Lift the seed bin up about 2-1/2” on the left side.
10. Install the middle bracket under the seed bin (do not tighten bolts yet). See the diagram of the John
Deere Grain Drill Scale Kit.
11. Install the front and back load cell with the 2-1/4” x 3/8” pins. Make sure the load cell arrow sticker is
pointed up.
12. Let the seed bin down to about 1” and slide the rear bracket on. Use the 5/8” x 8” bolts in the front 2
holes. Use the 2-1/2” x 3/8” clevis pin to hold the load cell in place. Make sure the pin is in the middle
of the 1/2” hole. Note: The rear step grip is installed between the rear bracket and the step bracket
already on the grain drill. Do not tighten the bolts.
13. Install the front bracket with the bolts left from the rear bracket. Use the 2-1/2” x 3/8” clevis pin to hold
the load cell in place. Make sure the pin is in the middle of the 1/2” hole.
14. Make sure the middle, front and rear brackets are straight with each other.
15. Remove the bolts on the right side that hold the seed bin to the frame.
16. Repeat steps 9 to 14 on the right side of the drill.

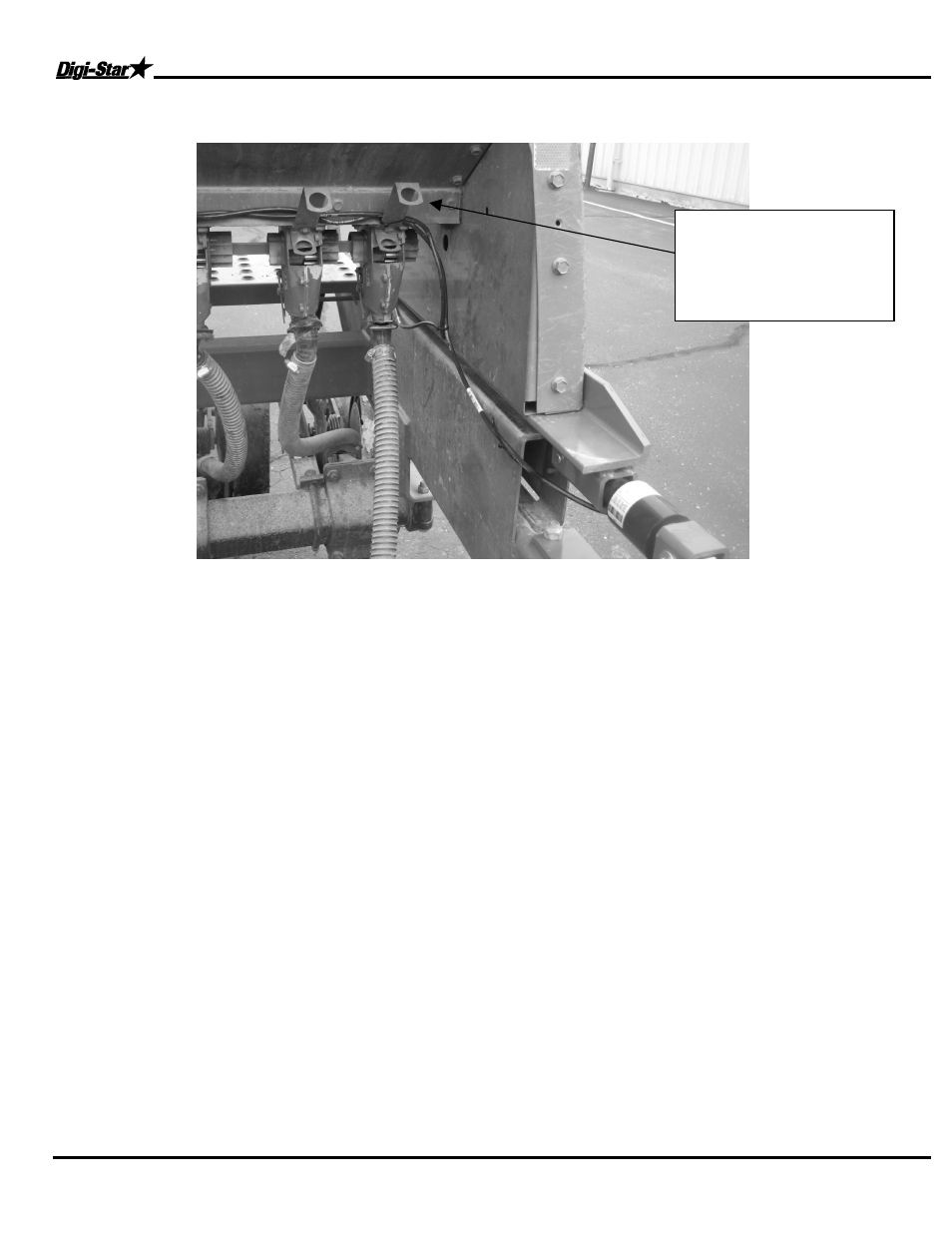

The hopper can be lifted
by wrapping a nylon strap
or chain around the
hopper end. (Left side of
hopper shown.)
