Scale Bracket and Load Cell Mounting Installation
D3858-US-Rev A
John Deere 750/1560/1590-20 ft Grain Drill
5

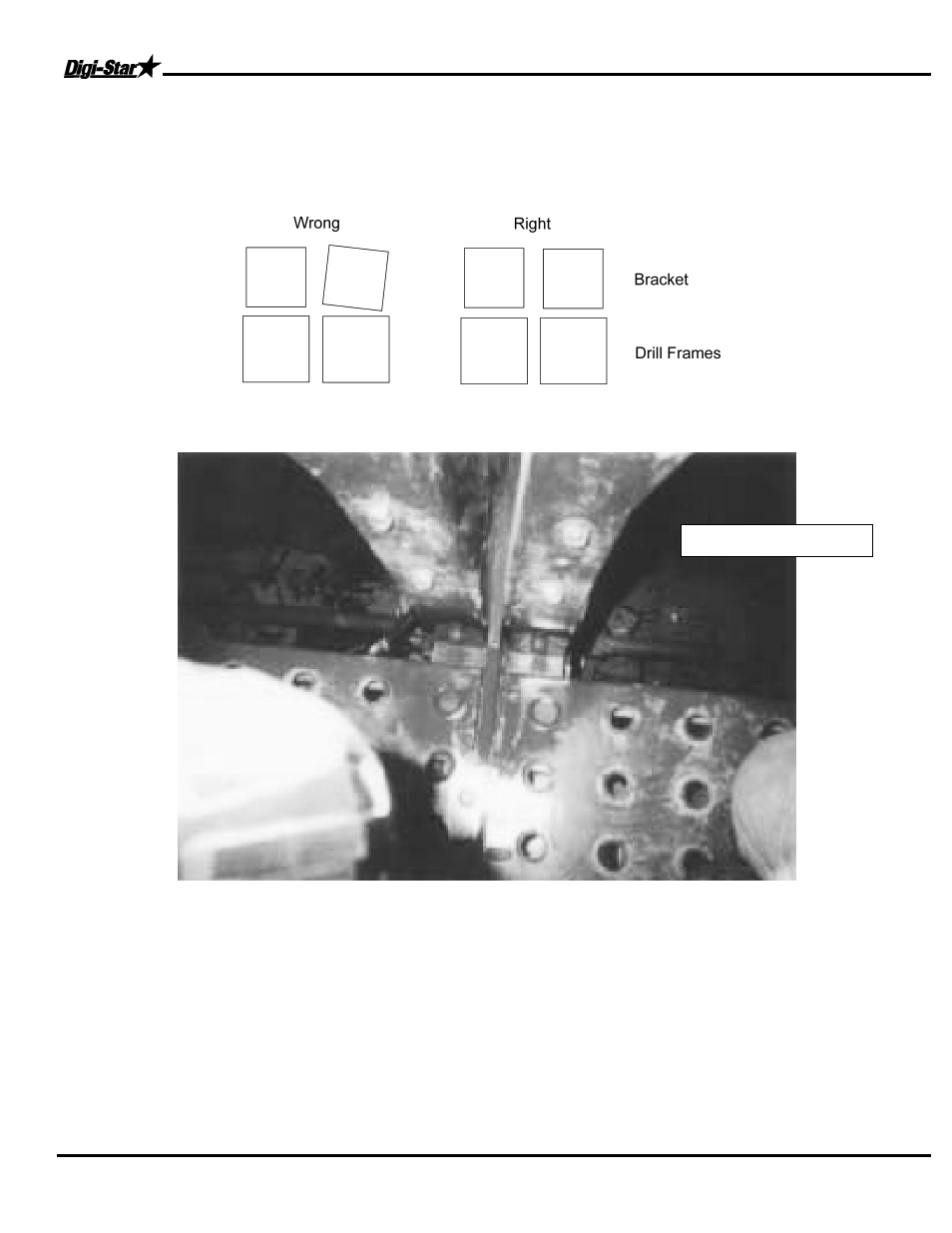

17. When both sides are done, the brackets should stand straight; neither should lean. Tighten the bolts on
all brackets in the following order:
1
st
: Tighten the middle bracket
2
nd
: Tighten the rear bracket
3
rd
: Tighten the front bracket
18. Reinstall catwalk. Trim catwalk so that it does not interfere with middle bin support.
19. Bolt the readout in the cab with the bracket or mount the bracket on a stand in the front of the lift
cylinder.
20. Install power cord to a 12 volt negative ground battery (white or red is positive, black is negative).
Install the J-box on the seed bin in the middle of the drill
21. Route the load cell cords so it will not be bounced or pinched by anything (see Mount Junction Box
instructions).
22. Lengthen the drive chain with provided chain links. DO NOT TIGHTEN CHAIN. Leave the chain loose
enough so it is not pulling down on the seed bin.
Trimming the catwalk
