Installation
WARNING
Do not install this equipment in hazardous areas. Such installations may cause a safety hazard and
consequent injury or property damage.
1. Refer to Figure 4 for a typical desk-edge installation example.
2. Remove the mounting angle from the subset.
3. Secure the mounting angle on the mounting surface using the two screws and the 0.203 inch
(5.16 mm) mounting holes.
4. Re-connect the subset to the mounting angle with the screws provided.
5. Plug the subset cable into the amplifier enclosure and secure the connector with the connector guard
(located on the amplifier enclosure).

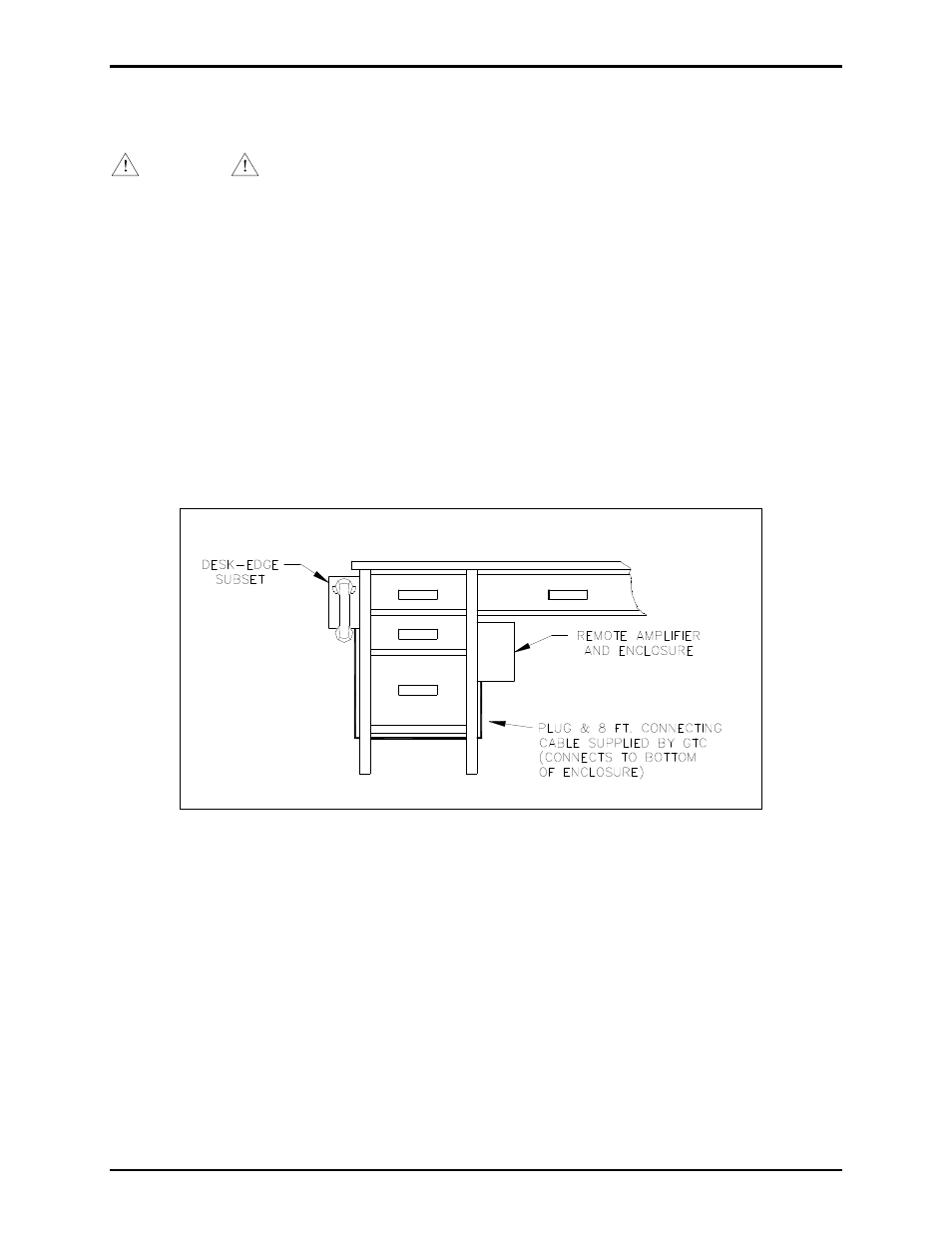

Figure 4. Typical desk-edge installation
