Radial Winch
80.2 ST
Installation and Maintenance Manual

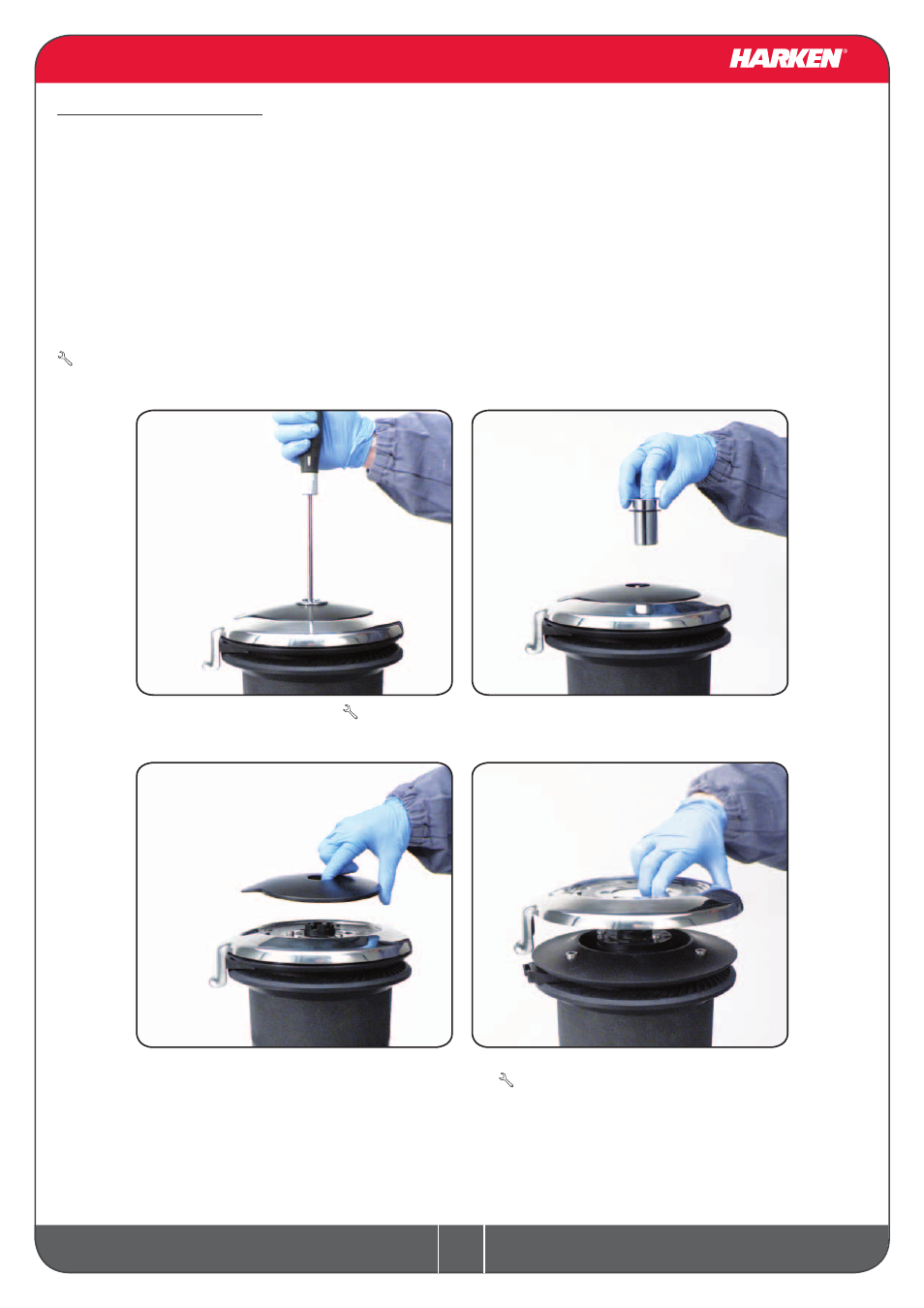

1. Unscrew the central screw ( 2Nm/18 in-lb)
2. Slide off the assy socket n°39
3. Slide off the assy cover n°38
4. Unscrew the three screws n°37
( 4Nm/35 in-lb) and remove the stripper
arm n°36 by rotating and lifting it.
DisassemblyProcedure
To install the winch you must remove the drum and use Socket Head (SH) bolts.
Tools needed:
One medium flat-bladed screwdriver
A number six hex key
Rags
To identify the various parts, refer to the exploded view at the end of this Manual.
Torque to apply when assembling
