INSTALLATIONS
MI912 User’s Manual 25

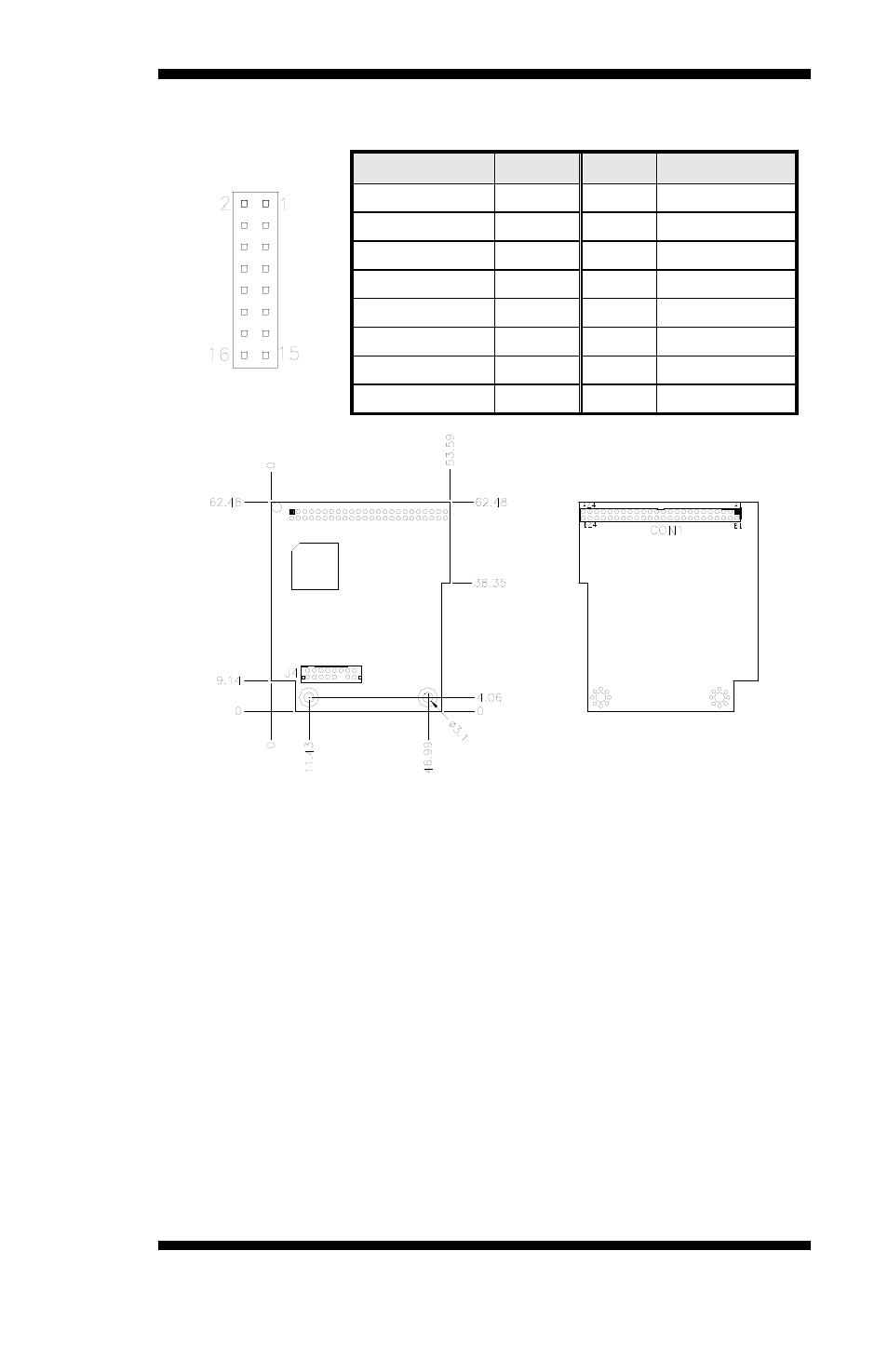

ID390C – J4 VGA Connector
[[[[
Signal Name Pin # Pin # Signal Name
+5V 2 1 RED
Ground 4 3 GREEN
N.C. 6 5 BLUE
SDA 8 7 N.C.
HSYNC 10 9 Ground
VSYNC 12 11 Ground
SCL 14 13 Ground
N.C. 16 15 Ground
