Part Names and Functions
 Operation Guide
The separate Operation Guide provides a convenient overview of the CA17 digital piano’s various button and keyboard controls.
a POWER button
This switch is used to turn the CA17 digital piano on/off.
Be sure to turn off the instrument after playing.
b MASTER VOLUME slider
This slider controls the master volume level of the CA17 digital
piano’s built-in speakers or headphones, if connected.
c CONCERT MAGIC button
This button is used to start/stop playback of the CA17 digital
piano’s built-in Concert Magic songs.
d LESSON button
This button is used to select the CA17 digital piano’s built-in
Lesson songs.
e PLAY / STOP button
This button is used to start/stop the playback of Recorder
songs stored in memory and CA17 digital piano’s built-in
Lessons songs.
f REC button
This button is used to record performances to the CA17 digital
piano’s internal memory.
g METRONOME button
This button is used to turn the metronome function on/off, and
also to adjust its tempo, time signature, and volume settings.
h SOUND SELECT button
This button is used to select the sound(s) that will be heard
when the keys are pressed.
i PHONES jacks
These jacks are used to connect stereo headphones to the
CA17 digital piano. Two pairs of headphones can be connected
and used simultaneously.
j PEDAL connector
This connector is used to connect the CA17 digital piano’s
pedal board to the instrument.
k DC IN jack
This jack is used to connect the AC adaptor.
l USB to Host port
This port is use to connect the instrument to a computer using
a USB ‘B to A’ type cable in order to send and receive MIDI
data.
m MIDI IN / OUT jacks
These jacks are used to connect the CA17 digital piano to
external MIDI devices, such as other musical instruments or a
computer, in order to send and receive MIDI data.

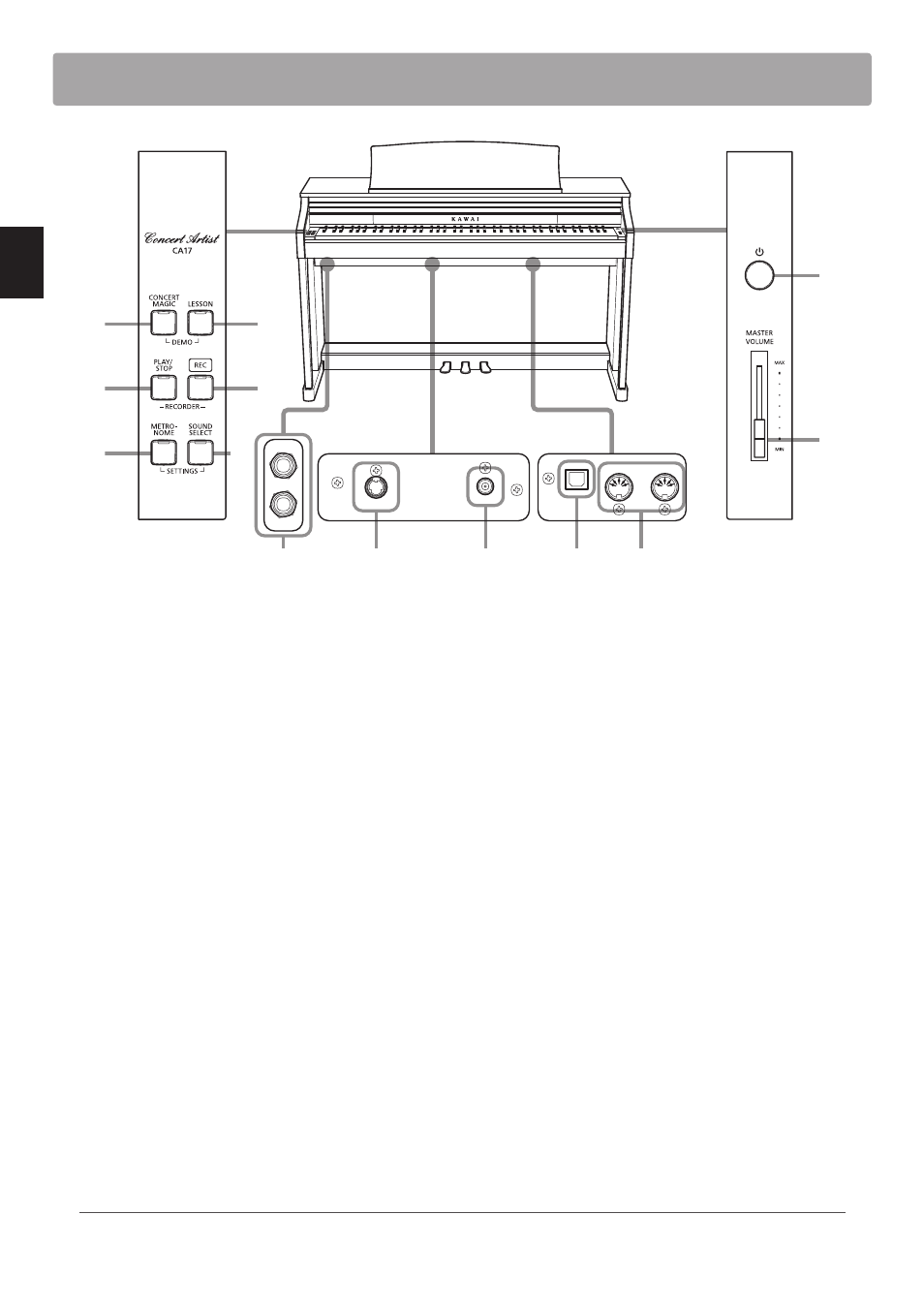

a
b
d c
e
g h
f
i j l k m
