SVS PLASMA ONE 7 - Manual (Page 5)

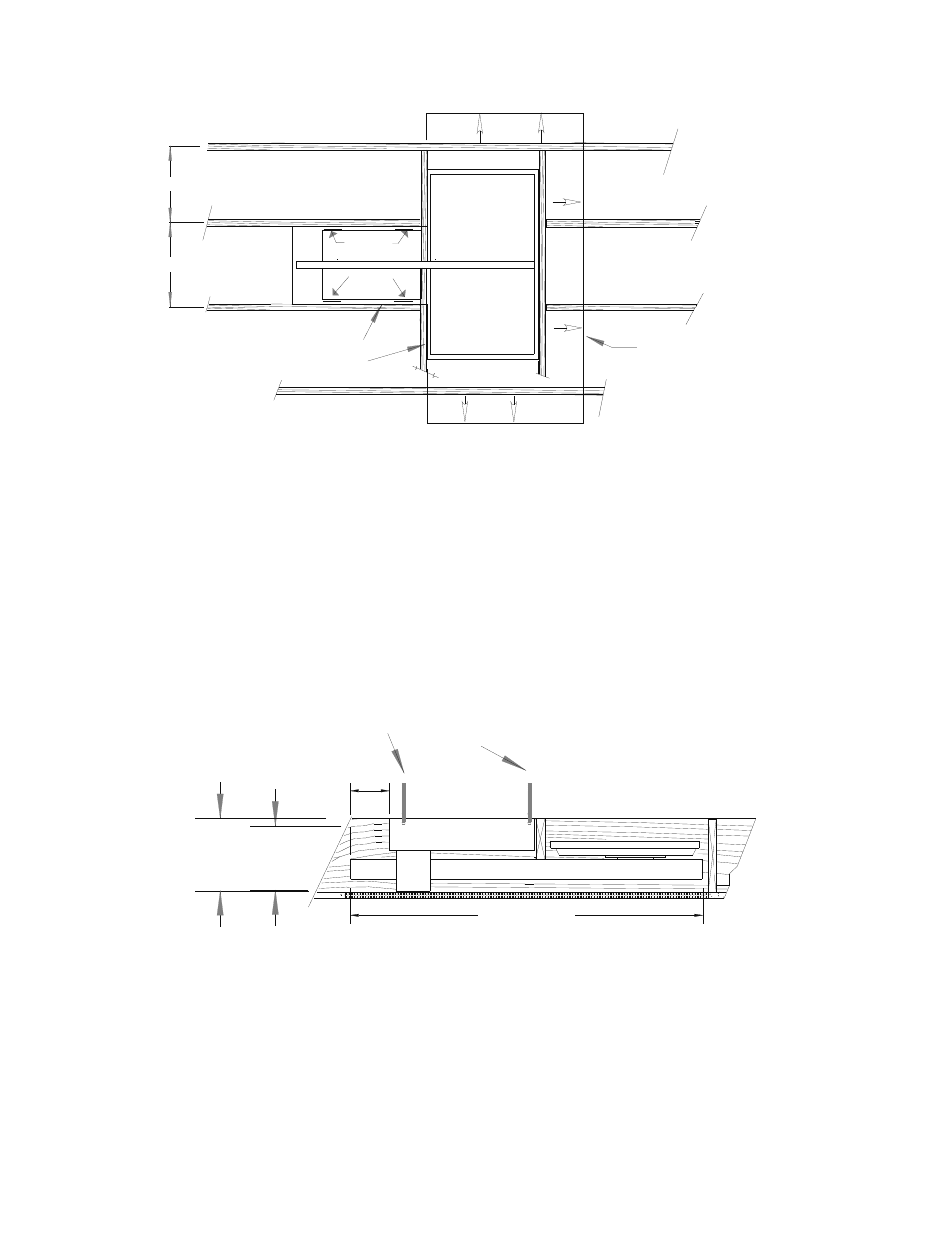

Figure 2
3. Support Recommendations and Mounting Methods:
The support of the plasma lift can be approached in 2 ways: top mounting or side mounting.
• a. Top Mounting: the Plasma One Lift can be mounted from four 3/8" threaded rods spaced at 12.38"
Wide x 23"Deep (shown in following figure 6). The threaded rods must be supported by a rigid mount
and should not extend more than 12" from the supporting structure to the lift's mounting holes. If the
length of the rods exceeds 12", cross braces must be installed.
If using a threaded rod structure, the rods should be located 11" above the false (lower) ceiling. The top
structure of the lift is then inserted and leveled at 12" above the false ceiling, leaving one inch of usable
thread for the mounting hardware -see figure 3 below.
Figure 3
SVS PLASMA LIFT INSTALLATION PAGE 5 OF 16
shims
(if needed)
CEILING
OPENING
PLASMA
SCREEN
25" HIGH X40" WIDE
(EXAMPLE)
16"
CEILING OPENING
WILL VARY WITH
PLASMA SCREEN
16"
6.375"
PLASMA
SCREEN
60.5" *
INSTALL THREADED RODS
TO 11" FROM LOWER CEILING
AND LEVEL THE LIFT TOP AT 12"
11"RODS(4)
12" LIFT
* Allows 1" in front and 1" in back for clearance
