2000NET Instruction Manual 37
Using the 2000NET GUI
• NOT IN SERVICE PENDING REBOOT – This entry indicates the report destina-
tion will become inactive upon the next module reboot.
• NOT READY – The destination entry is invalid. The IP Address may not be
properly defined or there is no IP Address or Community entry.
Assign Asset Tag
The 2000NET module can be assigned as asset tag identifier by entering
numbers or text in the Asset Tag field. This information will appear on the
Status web page and in the module inventory when using the NetConfig
Network Configuration application.
2000NET Network Web Page
After initial frame network addressing is done using the RS-232 port, sub-
sequent address changes may be made using the Network Parameter entry
fields on the 2000NET Network web page illustrated in
Figure 26 .
The 2000NET module must be rebooted before changes will take effect. You
can reboot the module from the Network web page by clicking the
Reboot
button. The Reboot button can also be found on the Configuration web page.

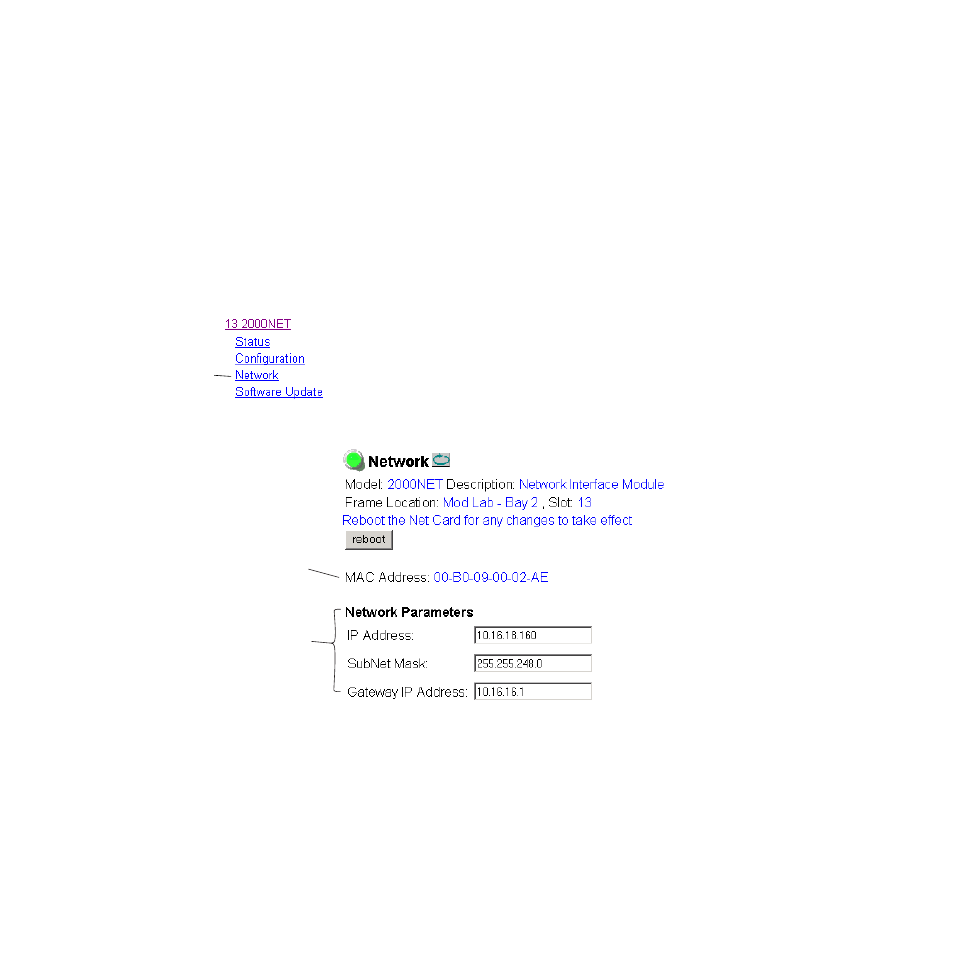

Figure 26. Configuring the 2000 Network
Note SubNet Mask and Gateway IP Address are required.
Use
this
link
Frame
Machine
Address
Enter and Apply
Network
Parameters
