8900GEN-SM — Instruction Manual
8900GEN-SM Applications

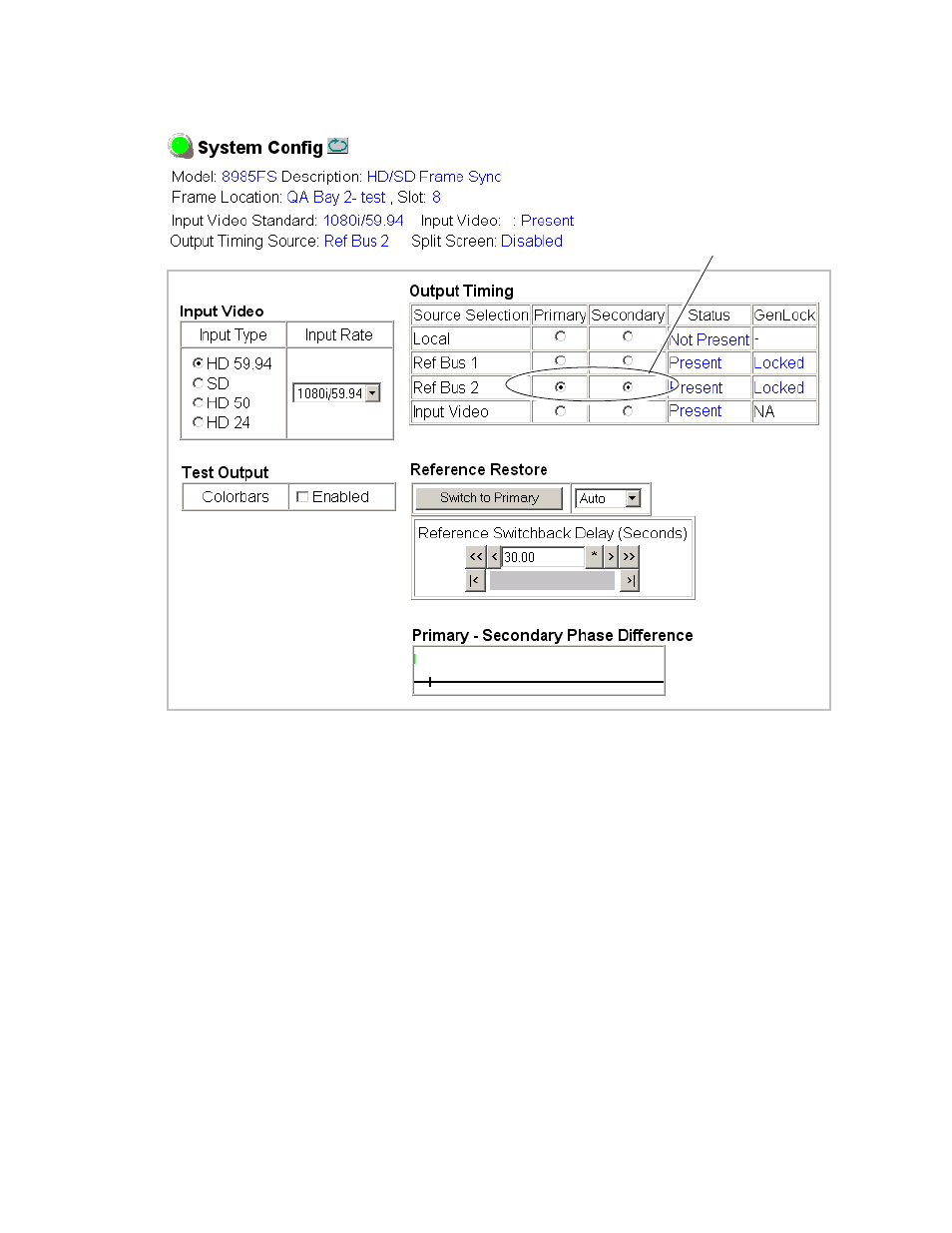

Figure 20. 1080i System Config Web Page
8.
Now select the link to the Status web page for the module in slot 8 and
verify there are no warnings about the input video matching the
selected input type or that the input video does not match the frame
rate of the selected genlock reference. The Status page should look
similar to the one in
. The Ref 2 arrow should be
green and the Front Processing Module should also be green. The Ref 1
arrow should be grayed out.
Set Primary and Secondary to Ref Bus 2
