16 8943RDA/-D/-DFR — Instruction Manual
Installation
Installing SFP Submodule on Front Module
Refer to the instructions below for installing a single SFP fiber optic sub-
module for Fiber 1 and Fiber 2.
1. Remove any dust cover plugs from the submodule.
2. On the top (component) side of the front module circuit board, locate
the two screws and the SCA-2 connector in the bottom connector where
the submodule will be installed as shown in
Figure 6 .
Note On some modules, this may be labeled F3 and F4.

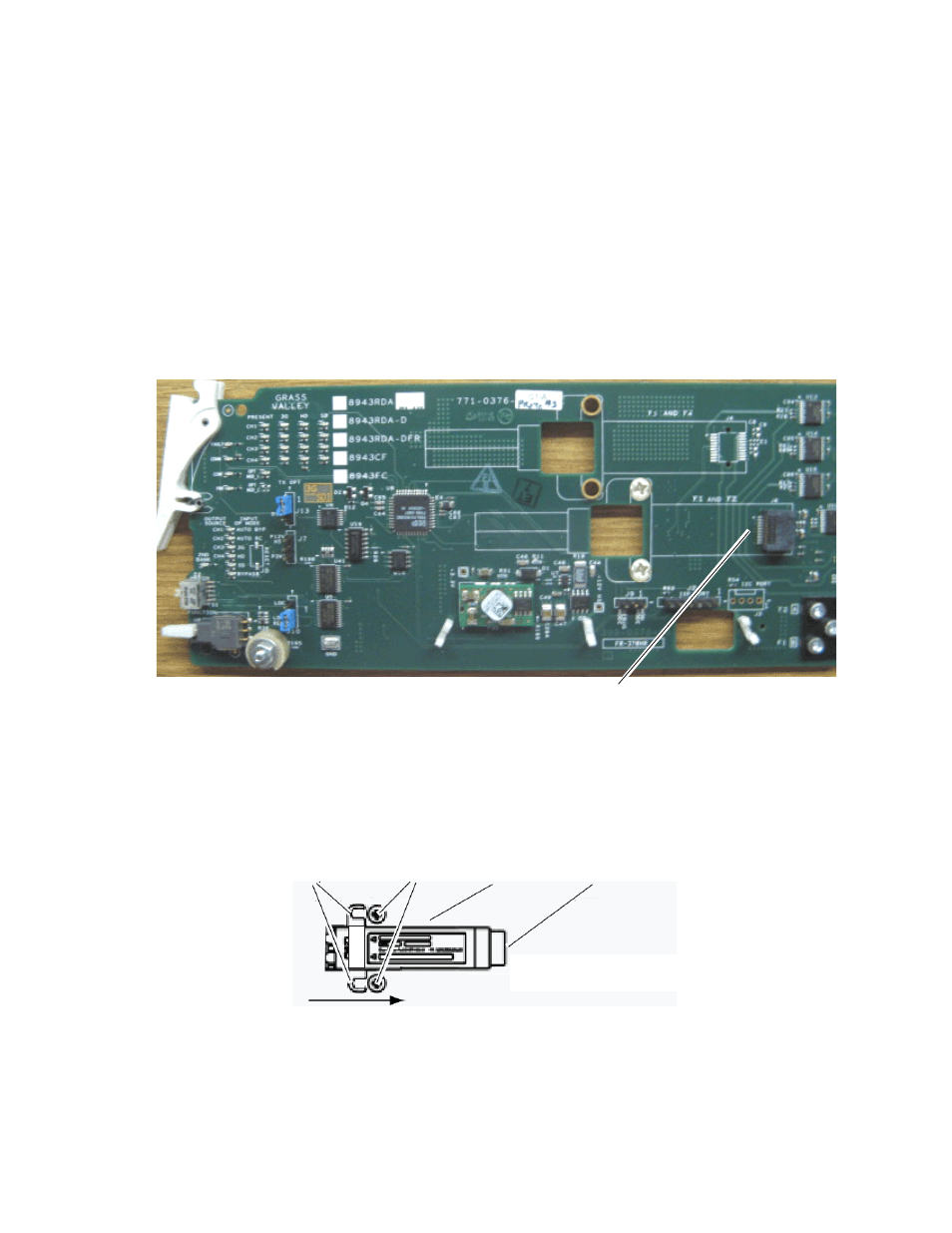

Figure 6. Location of Fiber 1 and Fiber 2 SFP Submodule
3. Loosen the two screws on the printed circuit board slightly so you can
slide the bracket straps underneath the screws and the SCA-2 connector
end of the submodule slides over the SCA-2 connector as shown in the
drawing in
Figure 7 .
Figure 7. Installing Strap-Mount SFP Submodule
Fiber 1 and Fiber 2 connector
Bracket Straps
Slide submodule straps under
screws and tighten.
Insert end of submodule
into SCA-2 connector.
Screws Submodule SCA-2 Connector
8592_12
r1
