8949MDA-CXF/-SXF — Instruction Manual
Configuration
An 8949MDA Status web page with a Transceiver (RTL) submodule
installed (
) reports the Optic Device as a Transceiver
(TX-RX 1310nm TRL).
Optical Input 1 is active and reports the status of the fiber input. Either the
BNC or the fiber optic input can be active. This must be set in configuration.
The fiber output must be enabled in configuration.

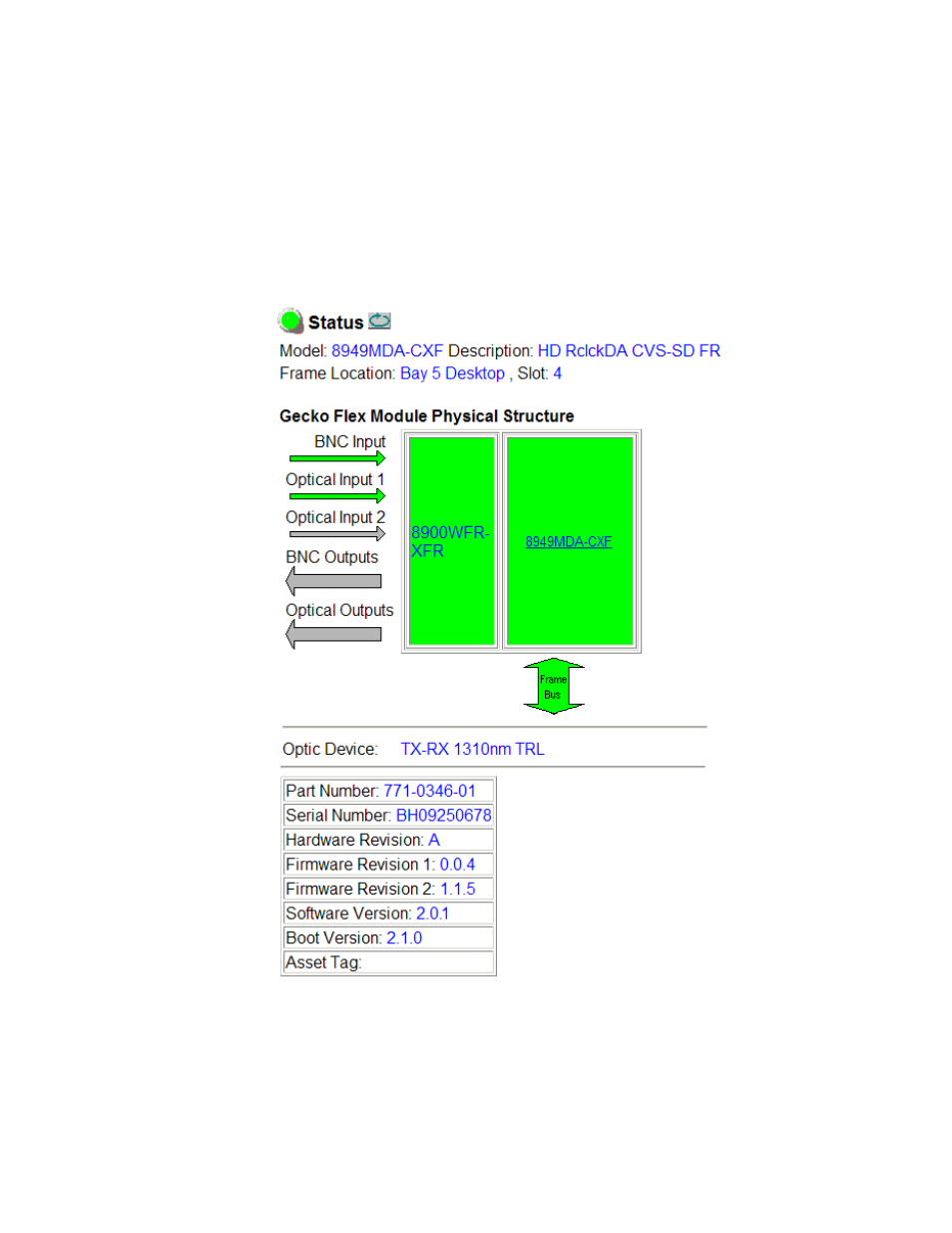

Figure 21. Status Web Page for 8949MDA-CXF with TRL Submodule
