8949MDA-CXF/-SXF — Instruction Manual
39
Configuration
•
14x9 Center Cut
– this mode allows a compromise between Letterbox
and 4x3 Center Cut. It cuts off one-eighth of the horizontal image,
one-sixteenth from each side and fits vertically in the middle 6/7 of
the screen with black horizontal bars above and below the picture.
Shapes are preserved.

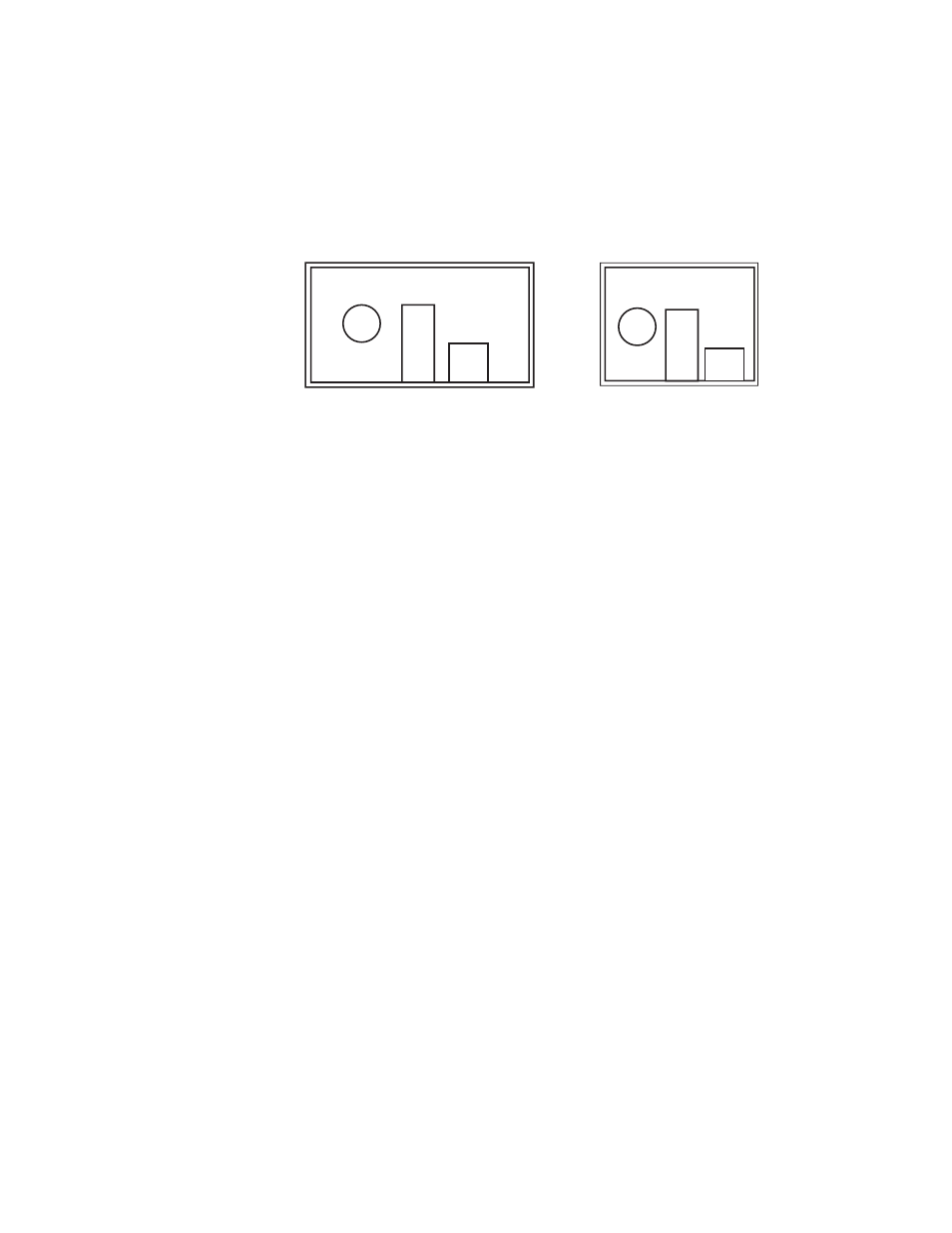

Figure 25. 14x9 Center Cut Aspect Ratio
•
Carrier Detect
– indicates the presence of valid input signal.
•
Locked Rate
– this value is linked to the input bloodstream rate detected.
•
Video Format
– this value reports the input video format detected.
•
Monitoring Format
– this value indicates the downscaled output video
format.
•
Composite Color Bar
– (8949MDA-CXF only) this parameter allows the
enabling and disabling of a composite color bar test pattern on the com-
posite downscaled outputs.
•
Composite Setup
– (8949MDA-CXF only) this parameter is shown if the
Monitoring Format
is 480i/59.94. Configure as
Setup
or
No Setup
on the com-
posite outputs.
Note
The composite controls will not be present on the 8949MDA-SXF Settings
web page as shown in the example in
.
14x9 Center Cut on 4x3 Monitor
1080i on 16x9 Monitor
