GUIDE TO INSTALLATION AND OPERATION
64 | LGK-3901/DSK-3901
6.4.10 Test

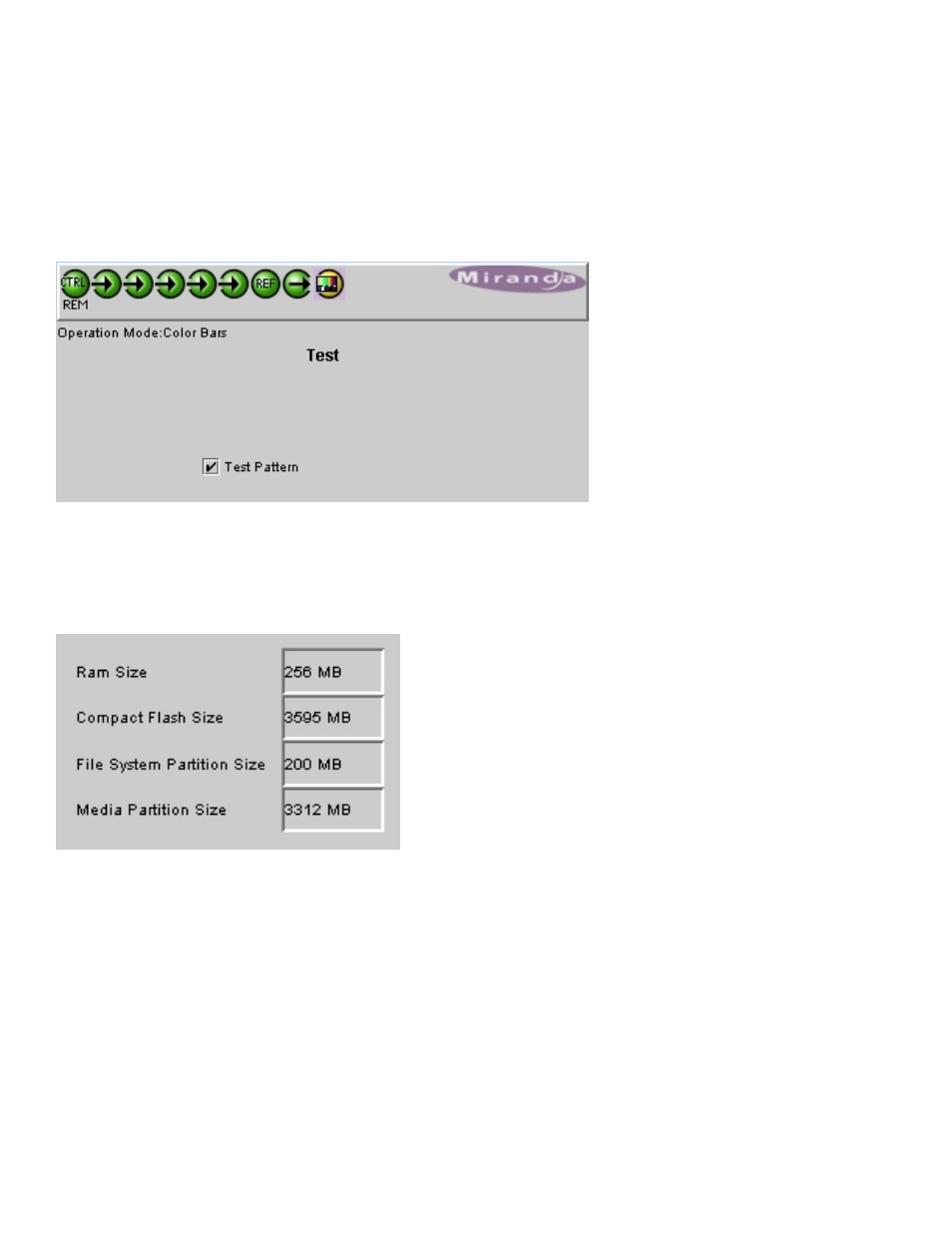

The Test panel provides a single checkbox control for forcing a test pattern to be output directly to PGM OUT and
PVW OUT. This is useful when commissioning an LGK-3901/DSK-3901 with unverified or missing input signals.
When the checkbox is selected, the Operation Mode icon changes to show the yellow TEST icon (see section 6.4.1)
6.4.11 Hardware Config
The Hardware Config panel displays hardware information relating to the LGK-3901/DSK-3901.
