Connecting Audio
Profile Video File Server Installation
2-25
• Connections on the PAC XLR Audio Breakout Panel are provide for analog audio
channels 25-32, each with an In and Out.
• Connections on the PAC XLR Audio Breakout Panel are for four pairs of digital
audio channels: 25/26, 27/28, 29/30, and 31/32 where each pair has an In and Out.
• The AES REF IN connector provides both a clock frequency and a framing
alignment reference, generally from a master sync generator, to the incoming
digital audio.
• The MONITOR LEFT/RIGHT connectors allow monitoring of one pair of audio
selected through software (see the Profile Family User Manual). This is an analog
output.

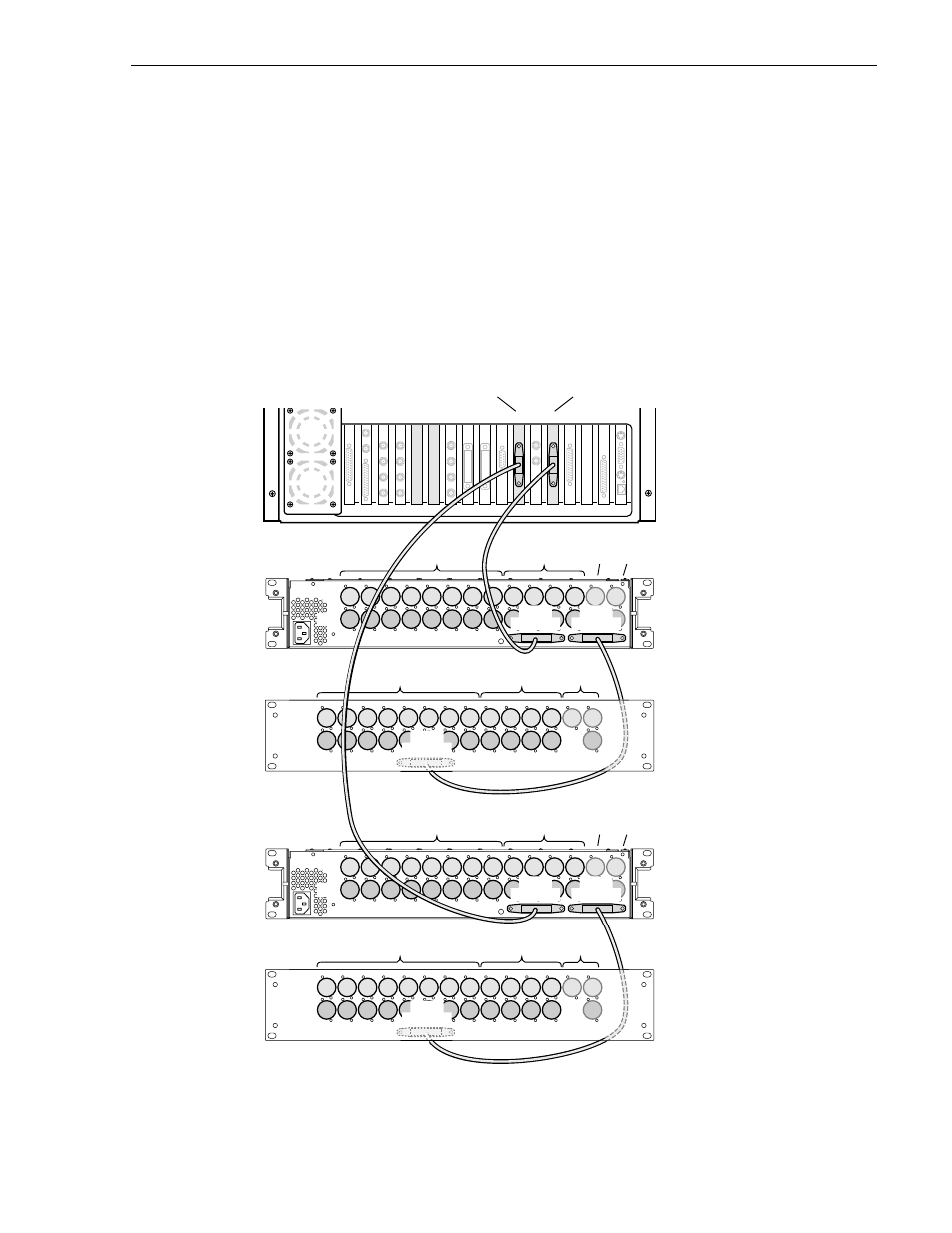

Figure 2-19. ASPB Connections for 32 Analog and 32 Digital Audio Channels
J1
J17
J13
J16 J15 J14
J6
J7
J4 J3 J2
J5
J12 J11
J9 J8
J10
9676-54
Analog
Channels
1-8
In
Out
In
Out
PROFILE
ASPB1
PAC200 Audio Chassis
(Back)
ASPB1
PAC XLR Breakout
Panel (Front)
ASPB2
PAC200 Audio Chassis
(Back)
ASPB2
PAC XLR Breakout
Panel (Front)
Digital (AES/EBU)
Channels
9-16
AES
Ref Monitor
Analog
Channels
9-16
Digital (AES/EBU)
Channels
1-8
Analog
Channels
17-24
In
Out
In
Out
PROFILE
Digital (AES/EBU)
Channels
25-32
AES
Ref Monitor
Analog
Channels
25-32
Digital (AES/EBU)
Channels
17-24
Spares
Spares
PAC
Breakout
PAC
Breakout
Main
Audio I/O
PAC
Breakout
PAC
Breakout
Main
Audio I/O
ASPB2
(Channels 17-32)
ASPB1
(Channels 1-16)
