Profile Video File Server Installation B-1
Appendix
B
Connector Pin-outs
This appendix contains the pin-outs for the connectors at the rear panel of the Profile
Video File Server.
S-VGA Connector
The S-VGA monitor connector on the System CPU board in slot J1 is a high
density 15-pin female connector. Figure B-1 shows the S-VGA Monitor connector
and Table B-1 lists the pin-outs.

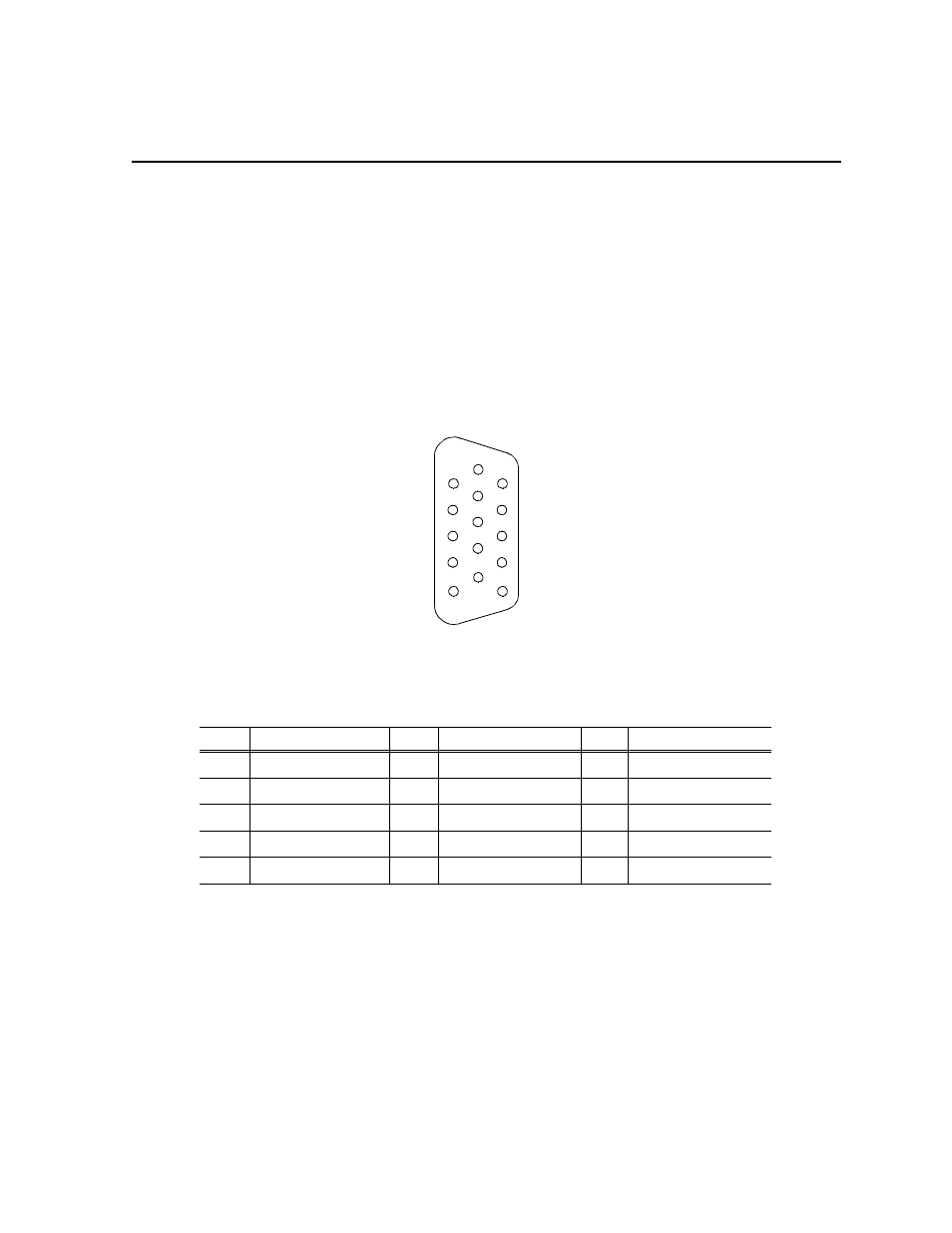

Figure B-1. S-VGA Monitor Connector
Table B-1. S-VGA Monitor Connector Pin-outs
Pin # Signal Pin # Signal Pin # Signal
1 Analog Red Output 6 Ground 11 not used
2 Analog Green Output 7 Ground 12 not used
3 Analog Blue Output 8 Ground 13 Horizontal Sync
4 not used 9 not used 14 Vertical Sync
5 Ground 10 Ground 15 not used
1
6
11
5
10
15
