HEIDENHAIN iTNC 530 71
2.2 Mo
ving the Mac
h
ine Ax
es
Display

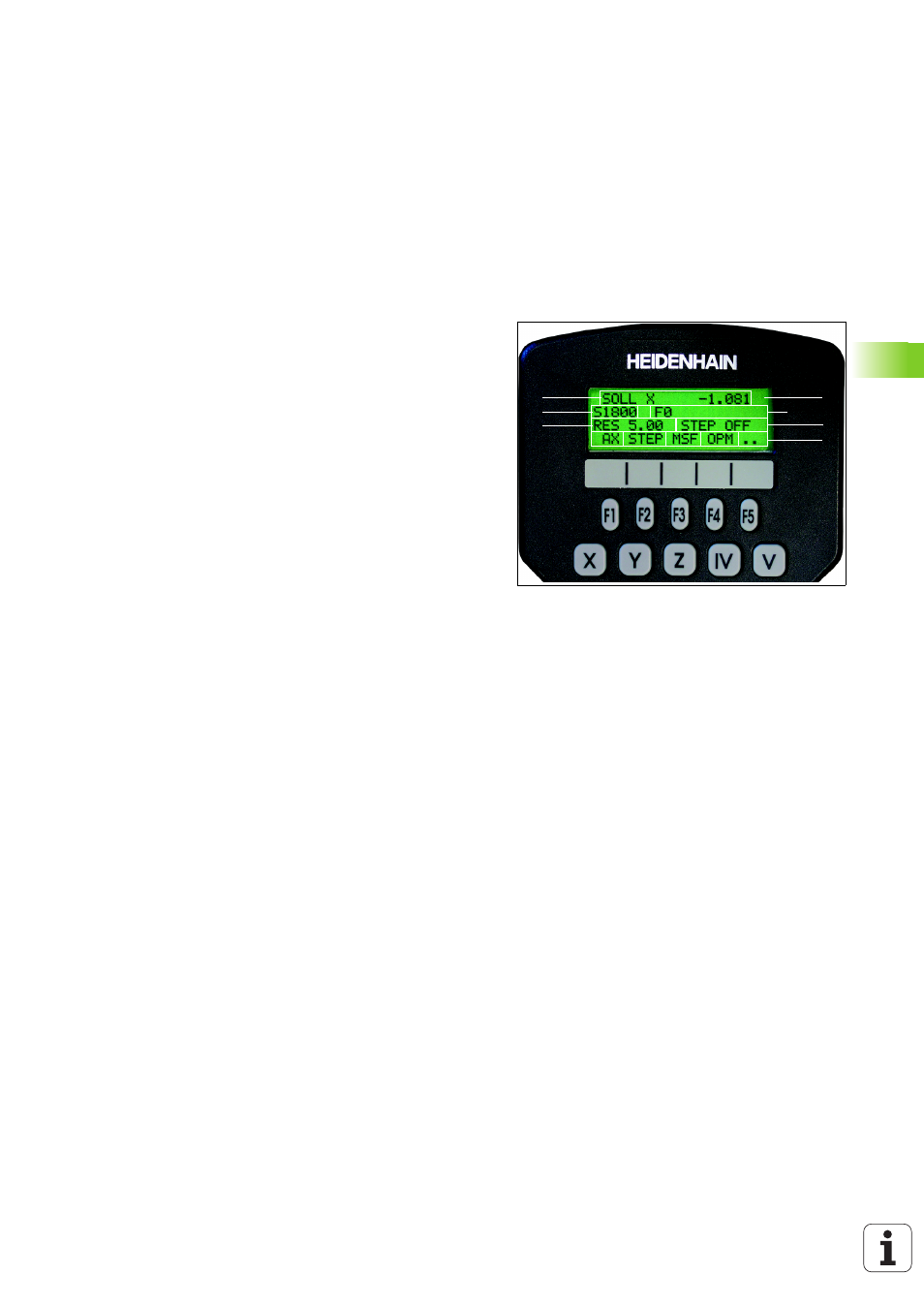

The handwheel display has four lines (see figure). The TNC shows
there the following information:
Select the axis to be moved
You can activate directly through the axis address keys the principal
axes X, Y, Z and two other axes defined by the machine tool builder. If
your machine has more axes, proceed as follows.
8 Press the handwheel soft key F1 (AX): The TNC displays all active
axes on the handwheel display. The active axis blinks.
8 Select the desired axis with the handwheel soft key F1 (->) or F2
(<-)
and confirm your selection with F3 (OK).
Set the handwheel sensitivity
The handwheel sensitivity defines the distance that an axis is to move
per handwheel revolution. The sensitivity levels are ready-defined and
are selectable with the handwheel arrow keys (unless incremental jog
is not active).
Selectable sensitivity levels: 0.01/0.02/0.05/0.1/0.2/0.5/1/2/5/10/20
[mm/revolution or degrees/revolution]
1
3
8 2
4 to 7
9
10
1 NOML X+1.563: Type of position display and position of the
selected axis
2 *: STIB (control is in operation)
3 S1000: Current spindle speed
4 F500: Feed rate at which the selected axis is moving
5 E: There is an error
6 3D: Tilted-working-plane function is active
7 2D: Basic rotation function is active
8 RES 5.0: Active handwheel resolution. Distance in mm/rev (°/rev
for rotary axes) that the selected axis moves for one handwheel
revolution
9 STEP ON or OFF: Incremental jog active or inactive. If the function
is active, the TNC also displays the active jog increment
10 Soft key row: Selection of various functions, described in the
following sections
