HEIDENHAIN iTNC 530 383
12.2 The PLANE F
unction: Tilting the W
o
rk
ing Plane (Sof
tw
ar
e Option 1)
12.2 The PLANE Function: Tilting
the Working Plane (Software
Option 1)
Introduction
The PLANE function is a powerful function for defining tilted working
planes in various manners.
All PLANE functions available on the TNC describe the desired working
plane independently of the rotary axes actually present on your
machine. The following possibilities are available:
The machine manufacturer must enable the functions for
tilting the working plane!
You can only use the PLANE function on machines which
have at least two rotary axes (head and/or table).
Exception: PLANE AXIAL can also be used if only a single
rotary axis is present or active on your machine.

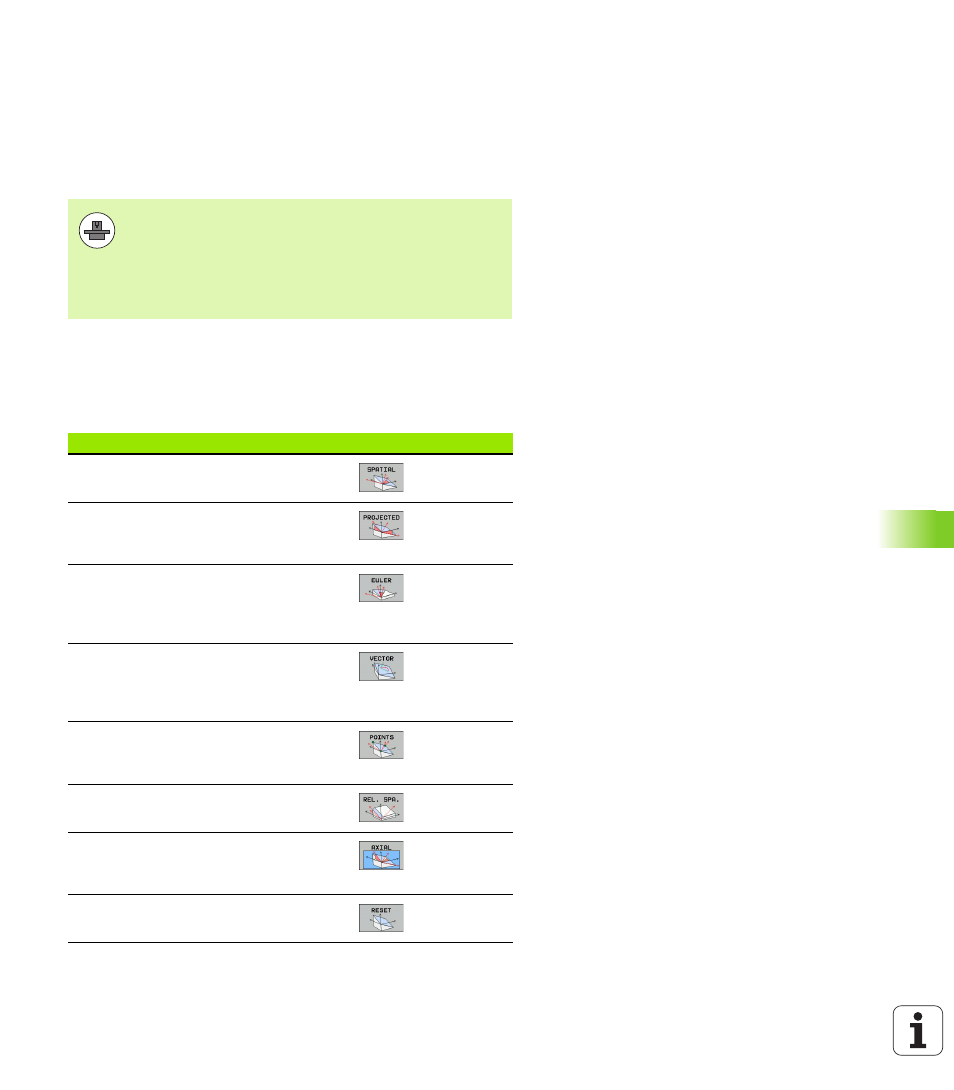

Function Required parameters Soft key Page
SPATIAL Three space angles: SPA,
SPB,
and SPC
Page 387
PROJECTED Two projection angles:
PROPR
and PROMIN and a
rotation angle ROT
Page 389
EULER Three Euler angles:
precession (EULPR),
nutation (EULNU) and
rotation (EULROT) Page 391
VECTOR Norm vector for defining
the plane and base vector
for defining the direction of
the tilted X axis Page 393
POINTS Coordinates of any three
points in the plane to be
tilted Page 395
RELATIVE Single, incrementally
effective spatial angle Page 397
AXIAL Up to three absolute or
incremental axis angles
A, B,
C
Page 398
RESET Reset the PLANE function Page 386
