HEIDENHAIN TNC 620 87
3.1
1
Pr
ogr
amming Examples
3.11 Programming Examples

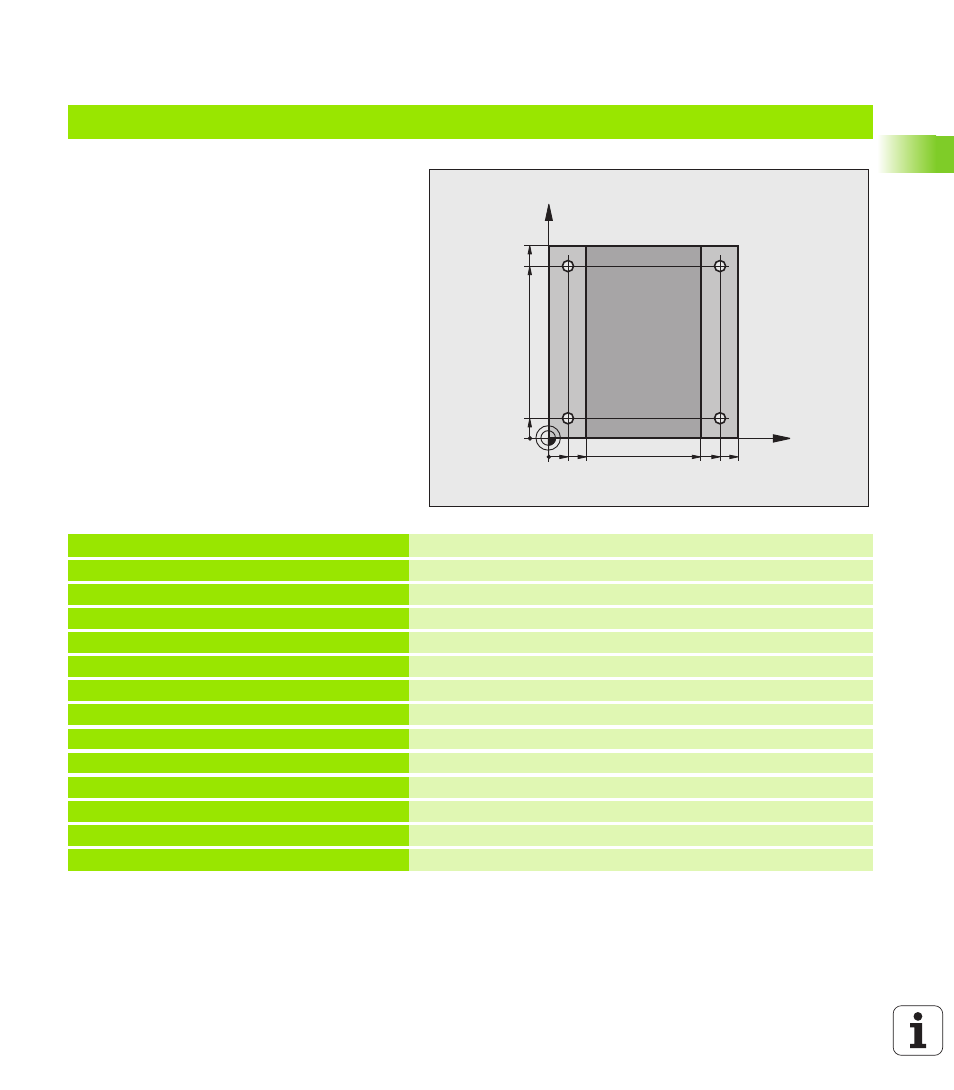

Example: Drilling cycles
0 BEGIN PGM C200 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20 Definition of workpiece blank
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 1 Z S4500 Tool call (tool radius 3)
4 L Z+250 R0 FMAX Retract the tool
5 CYCL DEF 200 DRILLING Cycle definition
Q200=2 ;SETUP CLEARANCE
Q201=-15 ;DEPTH
Q206=250 ;FEED RATE FOR PLNGN
Q202=5 ;PLUNGING DEPTH
Q210=0 ;DWELL TIME AT TOP
Q203=-10 ;SURFACE COORDINATE
Q204=20 ;2ND SET-UP CLEARANCE
Q211=0.2 ;DWELL TIME AT DEPTH
X
Y
20
10
100
100
10
90
90 80
