HEIDENHAIN TNC 620 (73498x-01) ISO programming - Manual (Page 318)

318 Programming: Multiple axis machining
1
1
.2 The PLANE function: Tilting the
w
or
king plane (sof
tw
ar
e option 1)
Input parameters

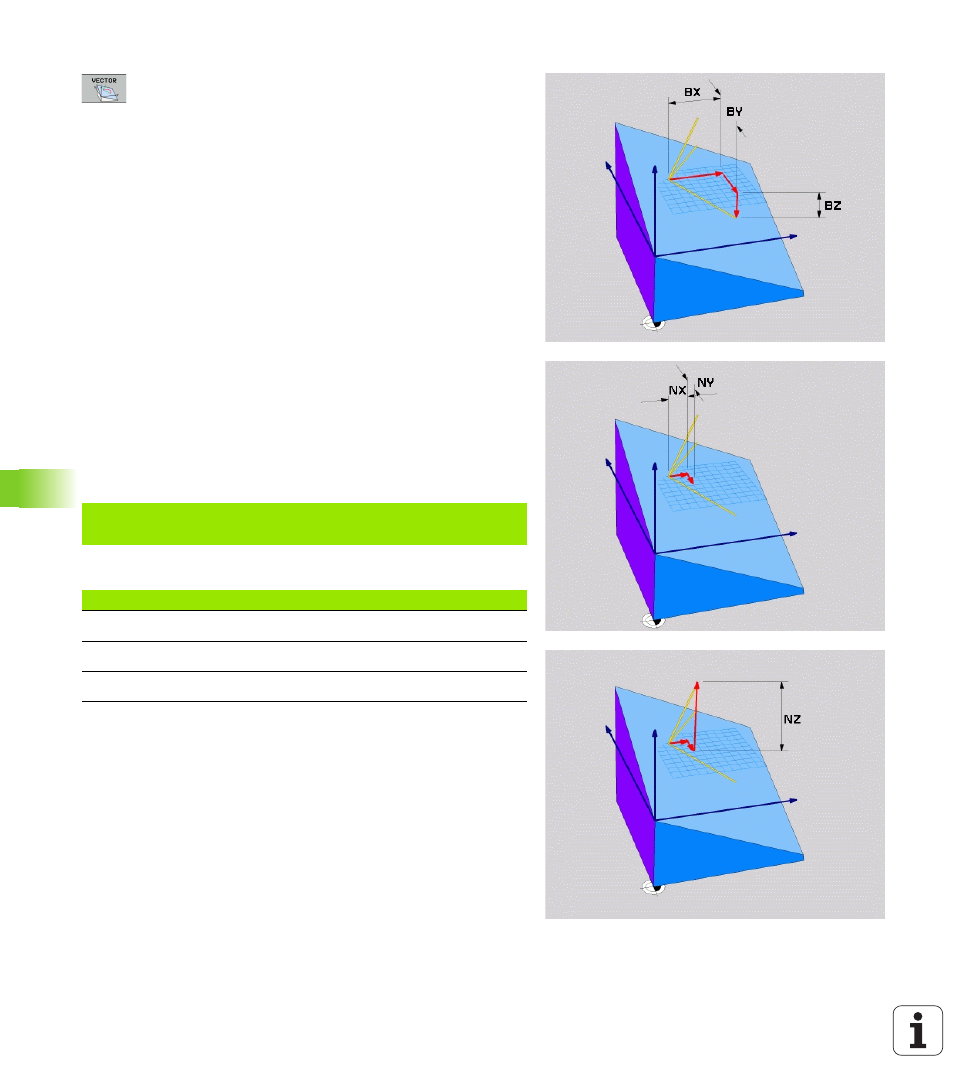

U X component of base vector?: X component BX of the
base vector B (see figure at top right). Input range:
-9.9999999 to +9.9999999
U Y component of base vector?: Y component BY of the
base vector B (see figure at top right). Input range:
-9.9999999 to +9.9999999
U Z component of base vector?: Z component BZ of the
base vector B (see figure at top right). Input range:
-9.9999999 to +9.9999999
U X component of normal vector?: X component NX of
the normal vector N (see figure at center right). Input
range: -9.9999999 to +9.9999999
U Y component of normal vector?: Y component NY of
the normal vector N (see figure at center right). Input
range: -9.9999999 to +9.9999999
U Z component of normal vector?: Z component NZ of
the normal vector N (see figure at lower right). Input
range: -9.9999999 to +9.9999999
U Continue with the positioning properties (see
"Specifying the positioning behavior of the PLANE
function" on page 324)
NC block
Abbreviations used
5 PLANE VECTOR BX0.8 BY-0.4 BZ-
0.4472 NX0.2 NY0.2 NZ0.9592 ...
Abbreviation Meaning
VECTOR Vector
BX, BY, BZ Base vector: X, Y and Z components
NX, NY, NZ Normal vector: X, Y and Z components
