Larco Guardian II - Manual (Page 9)

Access Controller
Installation Guide
Page 9 of 15

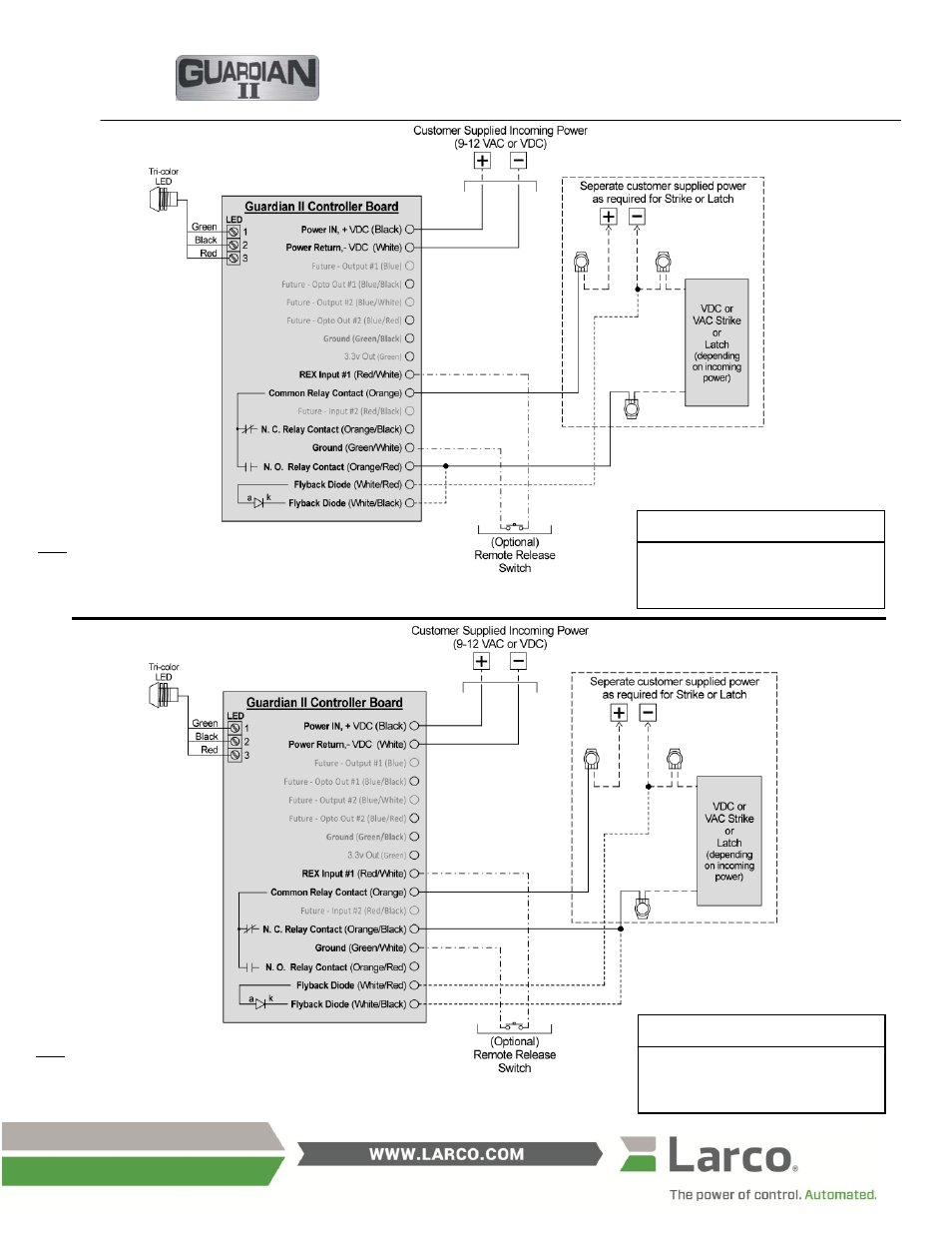

Power Fail - UNLOCK
Strike powered using separate
voltage source from the incoming
power.
Power Fail - LOCK
Strike powered using separate
voltage source from the incoming
power.
Notes:
1. Maximum AC voltage input: 12vRMS
2. Important – Do not connect the fly back diode on AC applications.
3. Connections are shown when using a DC powered strike or magnetic latch.
4. All long dashed lines denote any optional or customer supplied items.
Notes:
1. Maximum AC voltage input: 12vRMS
2. Important – Do not connect the fly back diode on AC applications.
3. Connections are shown when using a DC powered strike or magnetic latch.
4. All long dashed lines denote any optional or customer supplied items.
