Panel Descriptions

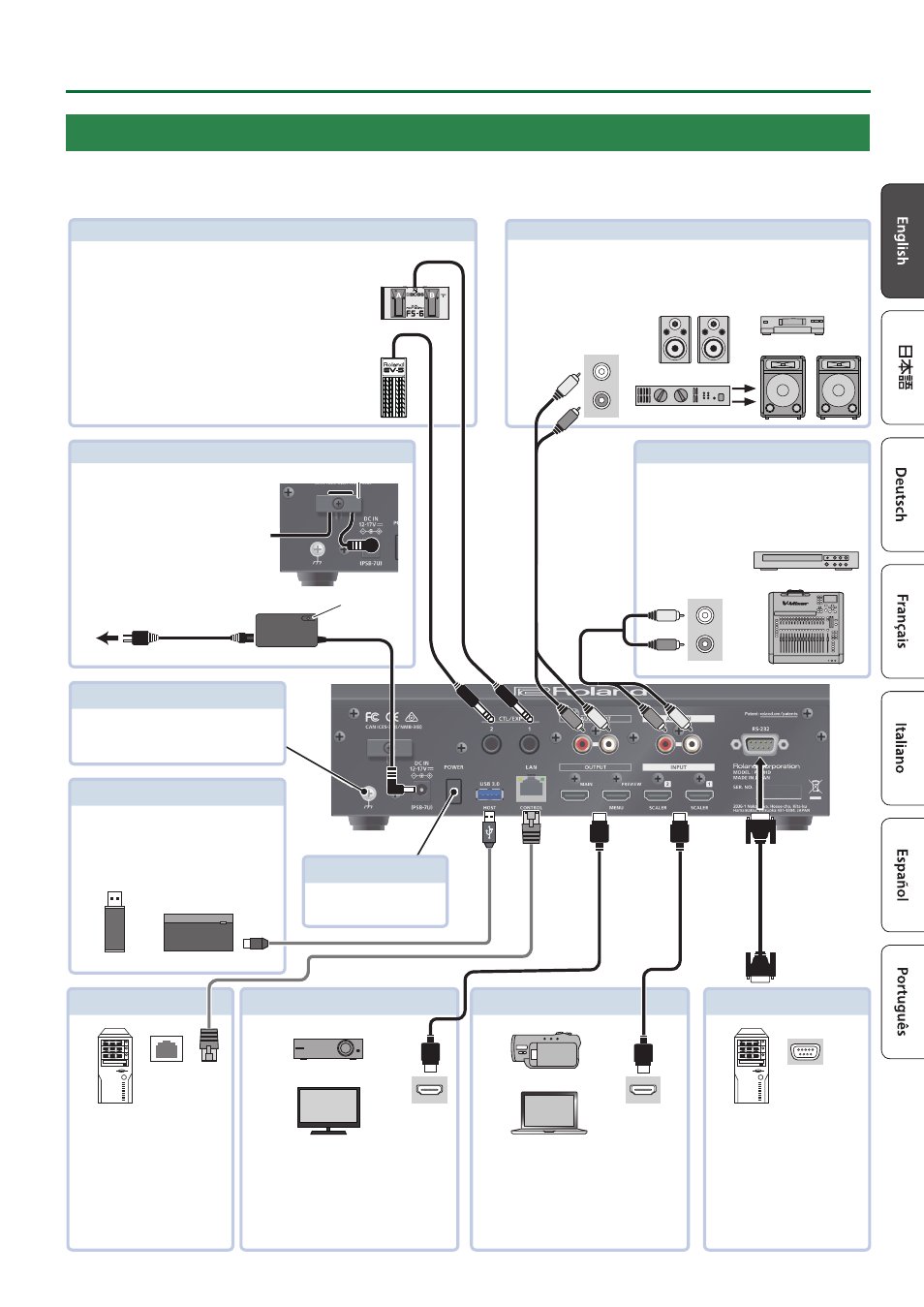

Rear Panel (Connecting Your Equipment)
* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
* Be sure to use cables and adaptor plugs with the proper connectors matching those of the other devices you are using.
* Before disconnecting an SD card or a USB flash drive while the power is on, be sure to perform the Eject operation.
INPUT 1, 2 connectors RS-232 connector LAN CONTROL connector
These input video. Connect them to a video
device or computer that is equipped with
an HDMI output connector. Connect this to a remote
control device (such as a
computer that is equipped
with RS-232) and use it to
remotely control the P-20HD.
Use this to connect to a
network device such as a
computer for remote control
of the P-20HD.
* Use a CAT5e or higher LAN
cable for GbE support.
HDMI output
connector
RS-232
connector
Ethernet
port
AUDIO OUT L, R jacks
These output the results of audio mixing.
Connect them to an audio recording deck, amplifier, speakers, or other such
equipment.
AUDIO IN L, R jacks
Inputs the audio signals.
Connect an audio mixer, CD players, or other
such audio equipment.
DC IN jack
Connect the included AC adaptor to
this jack.
* Use the cord hook to secure the cord
of the AC adaptor as shown in the
illustration.
OUTPUT (MAIN/PREVIEW) connectors
These output video. Connect them to a
projector or an external display.
* The menu of the P-20HD is shown on its
own built-in display and on the display
that is connected to the OUTPUT PREVIEW
connector.
HDMI input
connector
CTL/EXP 1, 2 jacks
Connect footswitches (sold separately: BOSS FS-6, etc.) or
expression pedals (sold separately: EV-5, etc.).
This is used when using your foot to control operations such
as video switching.
* Use only the specified expression pedal (EV-5, BOSS FV-
500L, or FV-500H sold separately). By connecting any other
expression pedals, you risk causing malfunction and/or
damage to the unit.
Audio output
connectors
Audio input
connectors
To AC outlet
Power cord
AC Adaptor
Indicator
Ground terminal
[POWER] switch
Connect this to an external earth or
ground if necessary.
Turns the power on/off.
USB 3.0 port
Connect USB storage such as a USB flash
drive or an external SSD, and use it to back
up this unit’s settings or to import clips
from storage into this unit.
Cord hook
