Connecting
Using a LAN terminal
Connect the LAN terminal and the computer LAN terminal via a hub or router.
When using network features via the LAN terminal, be sure to check if “LAN Setting” is set to “LAN Port”.
Connect the projector to the network that is constructed to control the access from the internet, such as LAN. If the
projector is connected directly to the internet, the security risk is increased.
The HDBaseT transmitter is used when connecting the projector to a computer, video device, or network
equipment.
Notes for connecting this unit to the HDBaseT transmitter
Ask a professional or Sony dealer to perform wiring. If wiring has been insufficiently performed, it affects the transmission
characteristics of the cable, and causes broken or unstable images.
Connect the cable directly to the HDBaseT transmitter without going through a hub or router.
Use cables that meet the following conditions.
– CAT5e or higher
– Shielded type (covering connectors)
– Straight wire connection
– Single wire
When installing the cables, use a cable tester, cable analyzer, or similar device to check if the cables meet the CAT5e or
higher requirement. If there is a transit connector between this unit and the HDBaseT transmitter, include it when
measuring.
To reduce the affect of noise, install and use the cable in a manner where it is not rolled up and it is as straight as possible.
Install the cable away from the other cables (especially the power cable).
When installing multiple cables, do not bind them and keep the running parallel distance as short as possible.
The transmittable distance of the cable is 100 m (approx. 328 feet) maximum. If it exceeds 100 m (approx. 328 feet), it may
cause broken images or a malfunction in LAN communication. Do not use the HDBaseT transmitter beyond the maximum
transmittable distance of the cable.
For operation or function problems caused by devices of other manufacturers, contact the relevant manufacturer.
Connecting to a Computer via a Hub or Router
Notes
When you monitor and control the projector via the network, access the Control Window of the
projector (refer to “Using Network Features” in the Help Guide) via a Web browser and enable the
desired control protocol.
Connecting to an HDBaseT™ Device

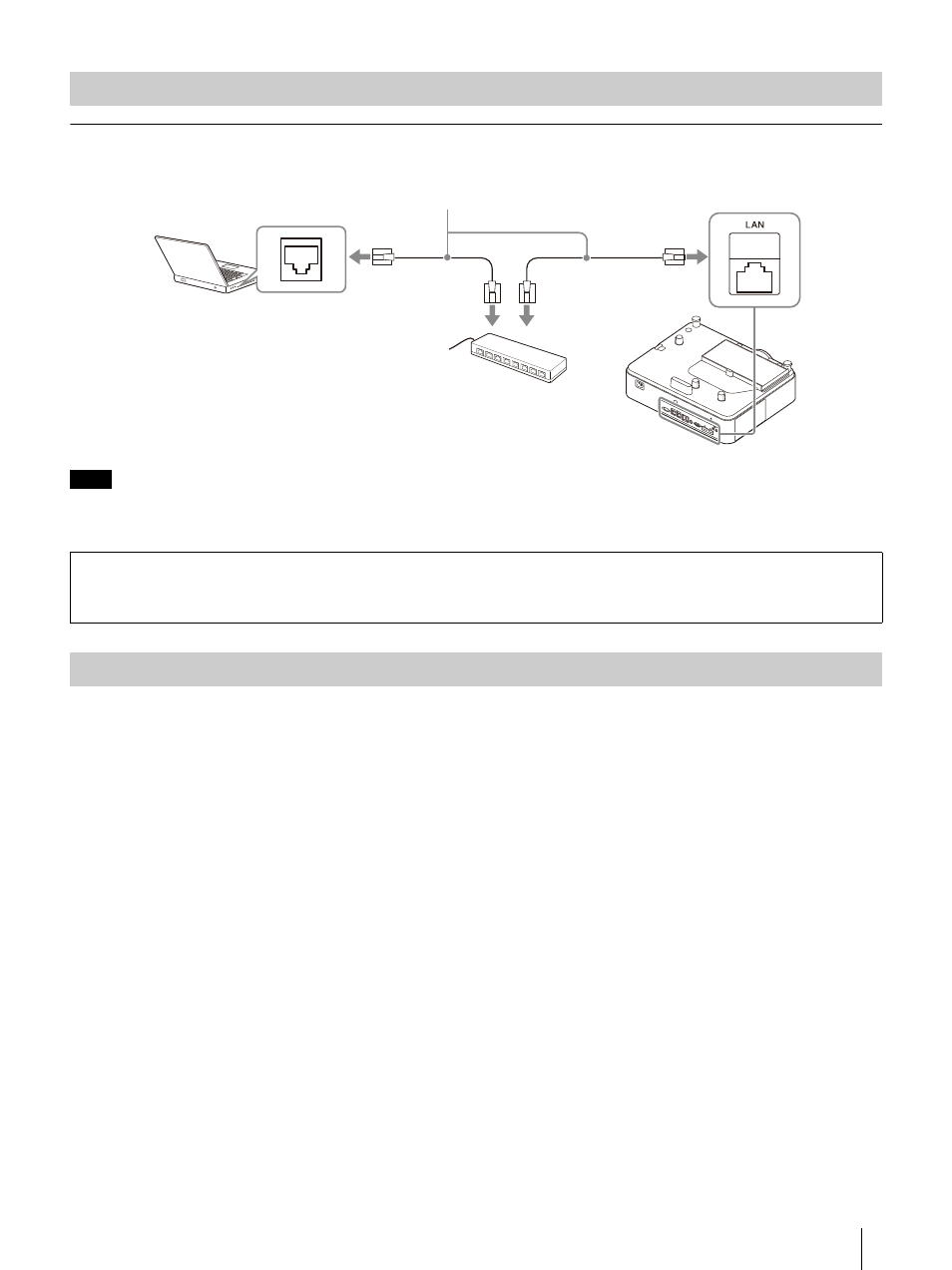

LAN cable (straight type) (not supplied)
Hub, router, etc
