Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
5of8
Assembly Instruction Sheet #IS-CKMO5003BN
For Style CKMO5003BN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2012 QuoizelInc.

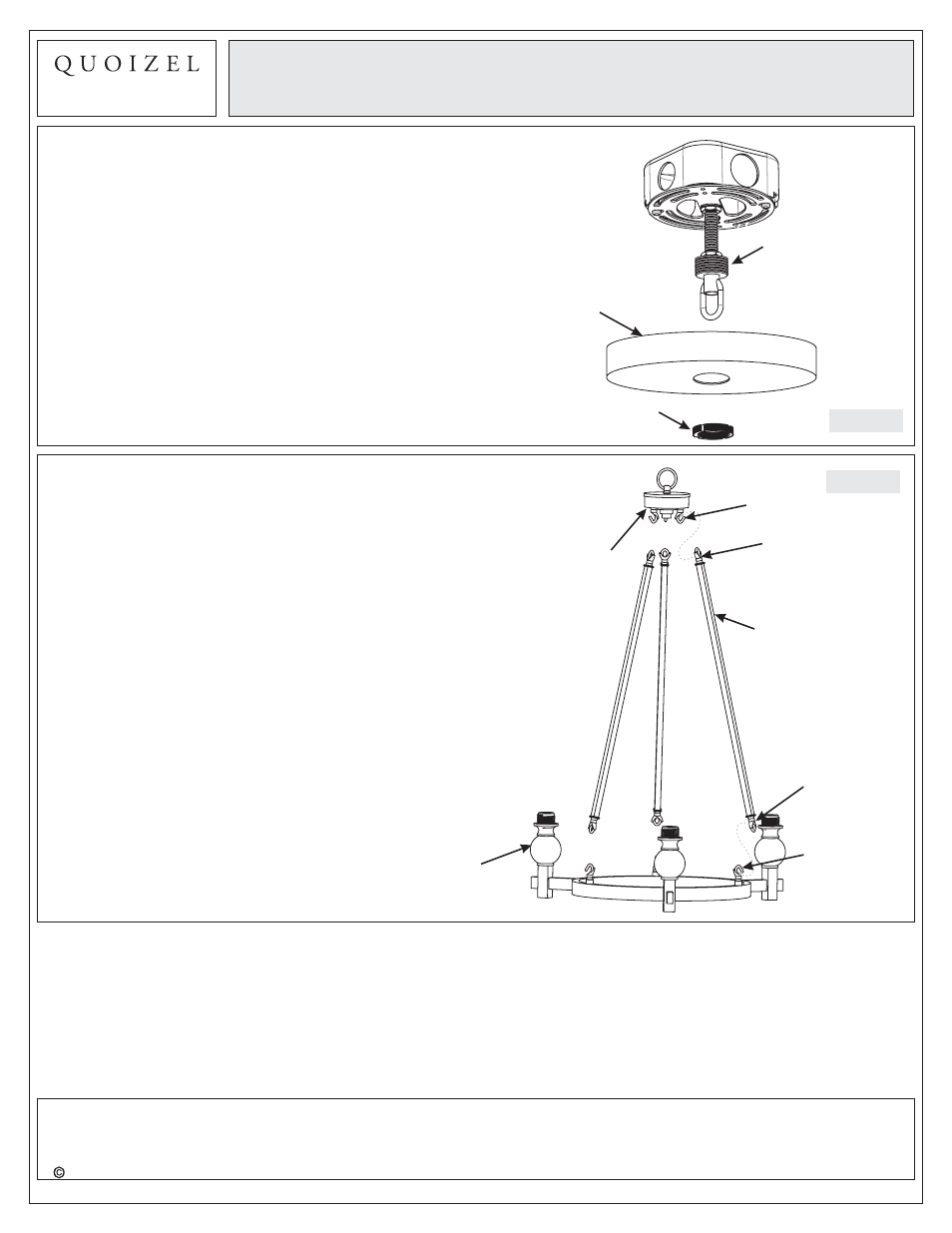

Figure 5
STEP 5
- Install Side Arm
A. Attach the Loop on one end of the Side Arm (J) to the
Hook on the side of the Fixture Loop Assembly (I) .
Attach the Loop on the other end of Side Arm (J) to the
Hook on the side of Socket Assembly (K).
Fixture Loop
Assembly
Side Arm
Hook
Loop
Loop
Hook
Socket Assembly
STEP 4 Assemble Ceiling Canopy
-
A. Push the Ceiling Canopy (E) upward over the Outlet
Box. Thread the Canopy Lock Ring (G) onto the Canopy
Chain Loop (F) and tighten until snug to secure the
Ceiling Canopy (E).
Ceiling Canopy
Figure 4
Canopy Chian Loop
Canopy
Lock Ring
October2012
