Quoizel CKMS8801TM Marisol - Manual (Page 5)

Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2013 QuoizelInc.
5of5
Assembly Instruction Sheet #IS-CKMS8801TM
For Style CKMS8801TM
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
October2013

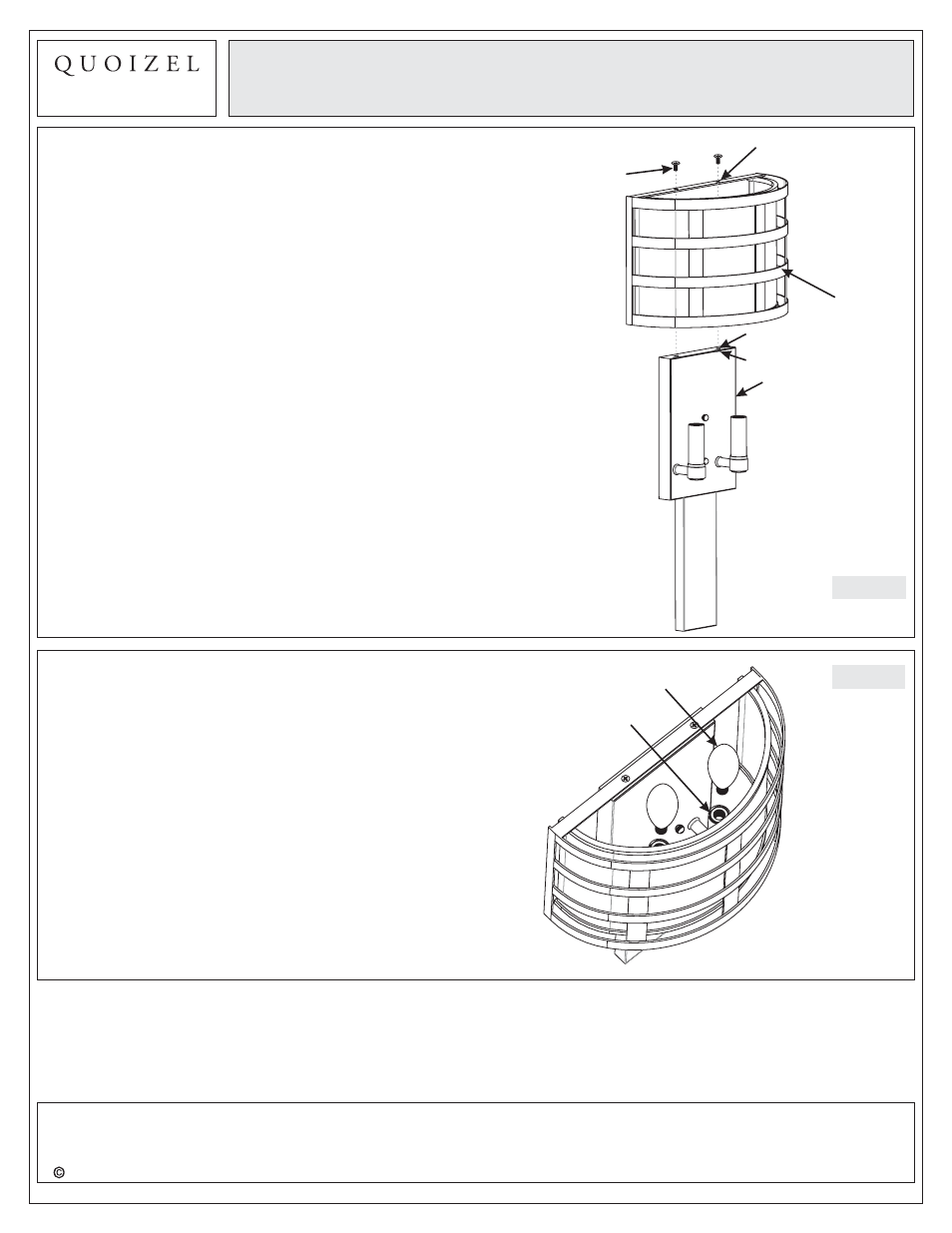

STEP 5 Attach Shade to Fixture Body
-
A. Line up the Hole on the Shade (H) and the Hole on the
Backplate, secure by threading the Lock Screw (G) into
the Hex Nut in the Backplate. Hand tighten until sung.
Figure 6
STEP 6
- Install Bulb
A. This fixture uses standard bulb with a standard screw
base. Maximum 60 watts.
B. Insert bulb and screw snugly into place.
Your fixture is now assembled and ready to use.
Enjoy!
Socket
Bulb Figure 7
Shade
Hole
Lock
Screw
Hole
Blackplate
Hex Nut
