66 | Removing the Processor

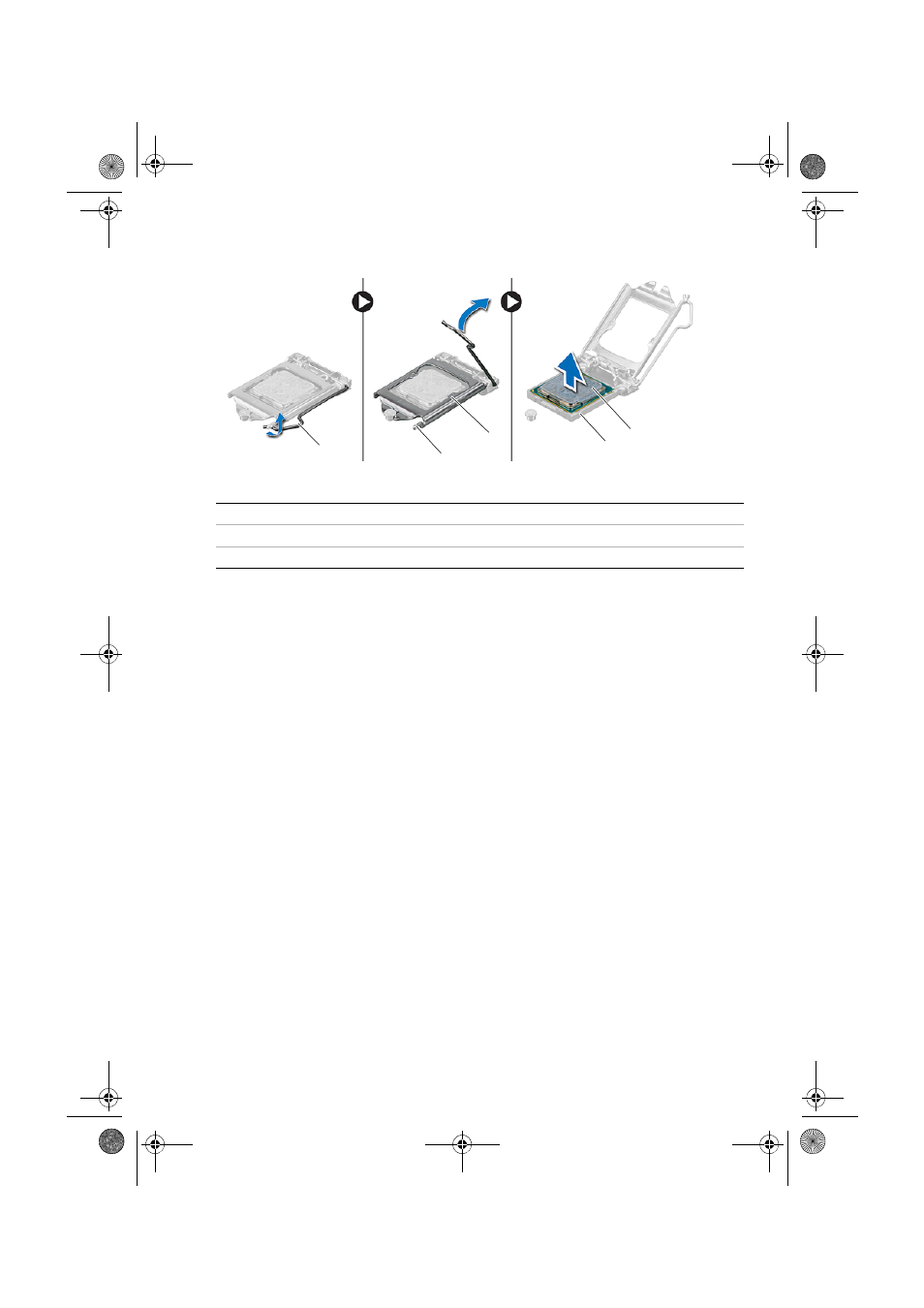

3 Gently lift the processor and remove it from the processor socket.
1 release lever 2 securing tab
3 processor cover 4 socket
5 processor
1 4
3
2
5
