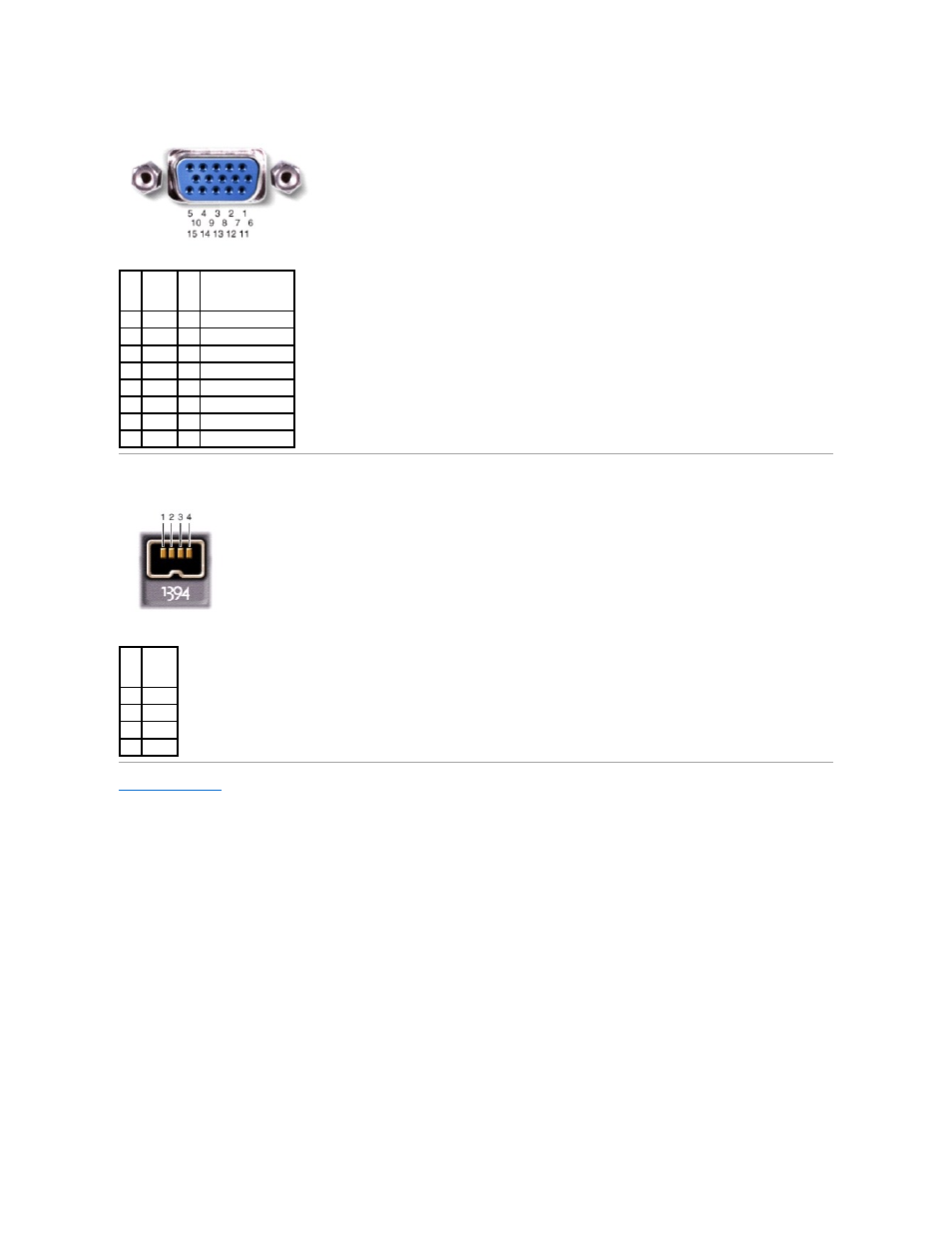

Video Connector



IEEE 1394 Connector

Back to Contents Page





Pin



Signal



Pin



Signal

1

CRT_R 9

5V+

2

CRT_G 10 GND

3

CRT_B 11 MONITOR_DETECT–

4

NC

12 DDC_DATA

5

GND

13 CRT_HS

6

GND

14 CRT_VS

7

GND

15 DDC_CLK

8

GND







Pin



Signal

1

TPB-

2

TPB+

3

TPA-

4

TPA+
